Ultra-Compact Form Factor
Featuring a tiny dia of 25mm, it offers near-invisible installation for minimalist architectural designs.

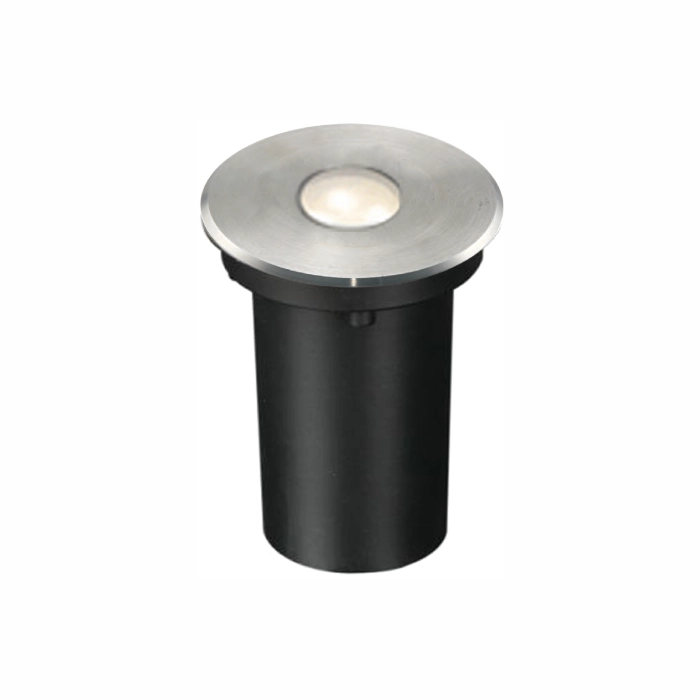

Hypogean Micro is the smallest and most discreet fixture in the series, designed for applications where minimal visual impact is crucial. With an extremely small dia of 25mm, it is ideal for installation in patios, pathways, or steps as a subtle marker light. Despite its tiny size, the Micro delivers quality illumination with high-CRI LEDs and multiple beam angles. It is perfect for creating guiding lines of light or highlighting small details without drawing attention to the source.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Hypogean Fix Micro | 3034 | Dia 25 x H 42mm | 1 | 75 | 3000 | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Micro | 3034 | Dia 25 x H 42mm | 1 | 75 | 3000 | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Micro | 3034 | Dia 25 x H 42mm | 1 | 75 | 3000 | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Micro | 3034 | Dia 25 x H 42mm | 1 | 75 | 3000 | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Micro | 3034 | Dia 25 x H 42mm | 1 | 73 | 2700 | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Micro | 3034 | Dia 25 x H 42mm | 1 | 73 | 2700 | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Micro | 3034 | Dia 25 x H 42mm | 1 | 73 | 2700 | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Micro | 3034 | Dia 25 x H 42mm | 1 | 73 | 2700 | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
