Robust Ground Durability
Features IP67 waterproofing and IK08 impact resistance, guaranteeing protection in recessed outdoor environments.

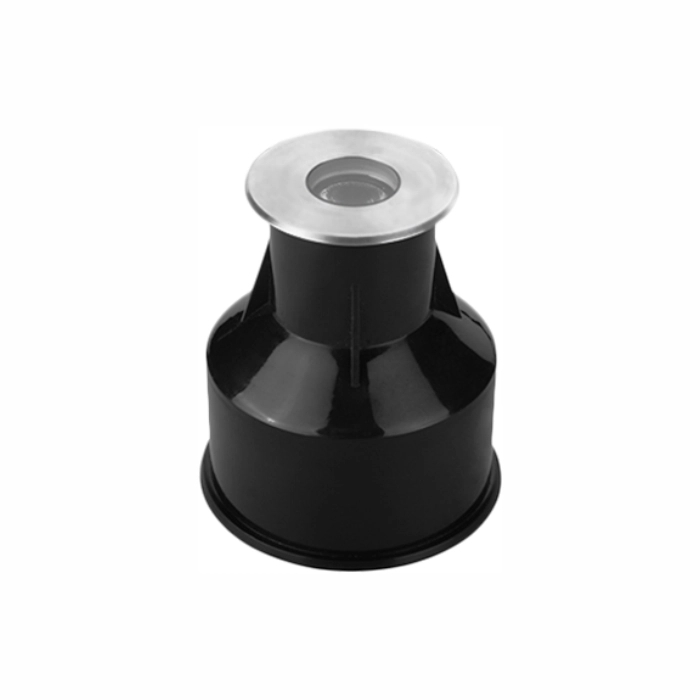

Hypogean R1 is a robust, fixed-position in-ground fixture designed for straightforward, reliable uplighting. Built with a high IP67 rating and durable IK08 impact resistance, it is engineered to withstand heavy foot traffic and harsh weather, making it ideal for plazas, patios, and pathways. The R1 provides a standard round beam, available in multiple angles and wattages (1W or 3W), delivering high-quality, high-CRI illumination where a clean, focused, fixed light source is required to highlight features or provide ambient illumination.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 106 | Blue | 92 | Asymmetric | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 106 | Blue | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 106 | Blue | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 106 | Blue | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 106 | Blue | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 106 | Blue | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 35 | Blue | 92 | Asymmetric | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 35 | Blue | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 35 | Blue | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 35 | Blue | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 35 | Blue | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 35 | Blue | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 205 | Green | 92 | Asymmetric | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 205 | Green | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 205 | Green | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 205 | Green | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 205 | Green | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 205 | Green | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 69 | Green | 92 | Asymmetric | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 69 | Green | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 69 | Green | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 69 | Green | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 69 | Green | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 69 | Green | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 128 | Red | 92 | Asymmetric | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 128 | Red | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 128 | Red | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 128 | Red | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 128 | Red | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 128 | Red | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 43 | Red | 92 | Asymmetric | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 43 | Red | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 43 | Red | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 43 | Red | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 43 | Red | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 43 | Red | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 241 | 3000 | 92 | Asymmetric | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 241 | 3000 | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 241 | 3000 | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 241 | 3000 | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 241 | 3000 | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 241 | 3000 | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 81 | 3000 | 92 | Asymmetric | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 81 | 3000 | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 81 | 3000 | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 81 | 3000 | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 81 | 3000 | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 81 | 3000 | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 235 | 2700 | 92 | Asymmetric | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 235 | 2700 | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 235 | 2700 | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 235 | 2700 | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 235 | 2700 | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 3 | 235 | 2700 | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 79 | 2700 | 92 | Asymmetric | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 79 | 2700 | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 79 | 2700 | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 79 | 2700 | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 79 | 2700 | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix R1 | 3036 | Dia 50 x H 100mm | 1 | 79 | 2700 | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
