Integrated Tilt Function
Allows the internal light source to be adjusted after installation, providing flexible, targeted accent lighting.

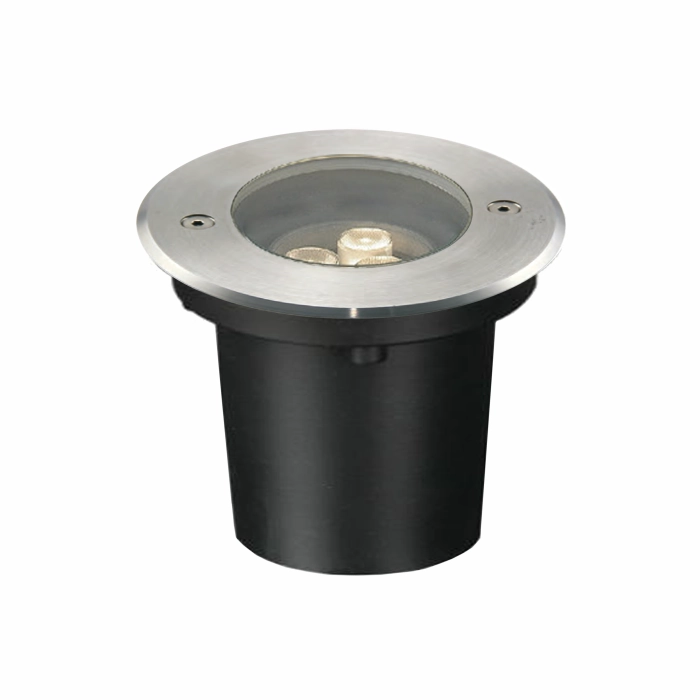

Hypogean Tilt (RA-3) is a high-power, recessed ground fixture designed for architects who need precise control over their illumination. Its standout feature is its tiltable mechanism, allowing the beam to be directed exactly where needed—perfect for accentuating specific architectural elements, statues, or trees from the ground up. Combining robust IP67/IK08 protection with high-CRI color quality and multiple beam angle options, the RA-3 provides both flexibility and durability, making it the premier choice for dynamic, long-lasting landscape and façade accent lighting.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 325 | Blue | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 325 | Blue | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 325 | Blue | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 325 | Blue | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 325 | Blue | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 215 | Blue | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 215 | Blue | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 215 | Blue | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 215 | Blue | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 215 | Blue | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 620 | Green | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 620 | Green | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 620 | Green | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 620 | Green | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 620 | Green | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 415 | Green | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 415 | Green | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 415 | Green | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 415 | Green | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 415 | Green | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 385 | Red | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 385 | Red | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 385 | Red | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 385 | Red | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 385 | Red | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 255 | Red | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 255 | Red | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 255 | Red | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 255 | Red | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 255 | Red | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 725 | 3000 | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 725 | 3000 | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 725 | 3000 | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 725 | 3000 | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 725 | 3000 | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 480 | 3000 | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 480 | 3000 | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 480 | 3000 | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 480 | 3000 | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 480 | 3000 | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 705 | 2700 | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 705 | 2700 | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 705 | 2700 | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 705 | 2700 | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 9 | 705 | 2700 | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 470 | 2700 | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 470 | 2700 | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 470 | 2700 | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 470 | 2700 | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Tilt | 3042 | Dia 130 x H 139mm | 6 | 470 | 2700 | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
