Kosmos 15

Exterior Spaces

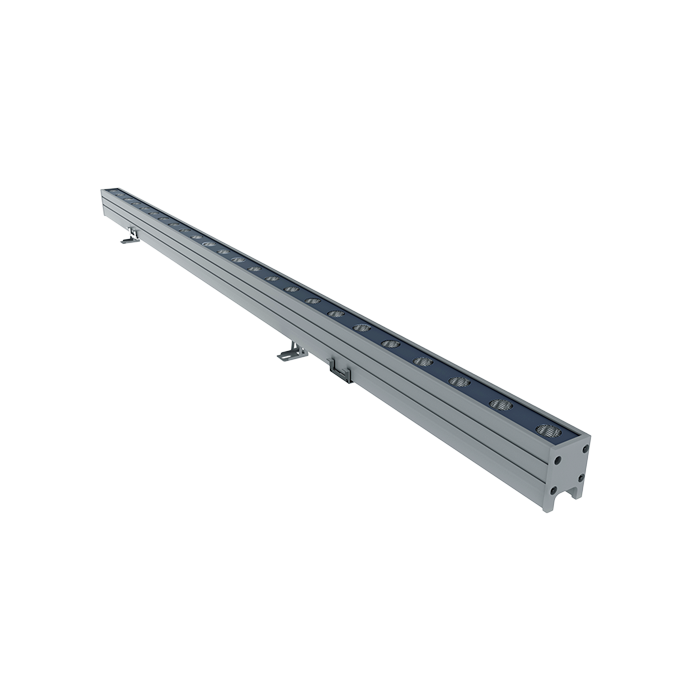

The Kosmos 15 is a mid-power linear fixture built for effective wall grazing and washing. Featuring a more directed 10x65° beam angle, it projects light with precision, ideal for highlighting textures on stone, brick, or concrete façades. The Kosmos 15 offers significant output (up to 15W per meter) and is fully equipped with both high-CRI white light and a dynamic RGB option, making it the perfect versatile tool for medium-scale dynamic façade lighting

Enquire Now

Specifications

Product Image
Wattage
7.5W-15W
Lumen
460 lm - 1485 lm
Beam Angle
10x65°
Cut out
N/A
IP rating
IP 65
check icon
Focused Wall Grazing
Uses a directed 10x65° beam angle to effectively highlight surface textures and architectural depth
check icon
High Efficiency Output
Offers strong lumen packages with up to 15W per meter for impactful illumination of mid-height structures
check icon
Full DMX Color Control
RGB option allows for advanced, dynamic color-changing scenes, precisely controlled via DMX512 or Dali
check icon
Adjustable Mounting
Designed with adjustable mounting brackets for precise aiming and optimal beam placement on vertical surfaces.
check icon
Universal Control
Supports DMX512, Dali, Triac, and Analog dimming for simplified integration into any professional control system.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Kosmos 15 2201 W28 x L500 x H32 mm 8 705 2700 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 15 2201 W28 x L500 x H32 mm 8 720 3000 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 15 2201 W28 x L500 x H32 mm 8 745 4000 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 15 2201 W28 x L500 x H32 mm 8 460 RGB 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 15 2201 W28 x L1000 x H32 mm 15 1405 2700 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 15 2201 W28 x L1000 x H32 mm 15 1440 3000 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 15 2201 W28 x L1000 x H32 mm 15 1485 4000 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 15 2201 W28 x L1000 x H32 mm 15 1105 RGB 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
