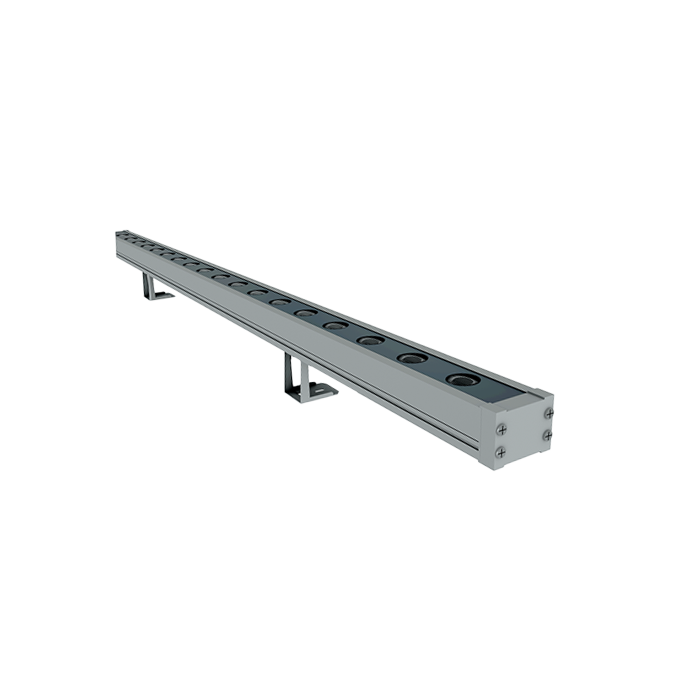

Kosmos 18

Exterior Spaces

Kosmos 18 is the highest-output fixture in the linear series, designed for demanding wall washing applications that require greater throw distance and light intensity. With power up to 18W per meter and the same precise 10x65° beam angle, the Kosmos 18 delivers maximum brightness and saturation, making it the superior choice for illuminating tall buildings or expansive façades. It combines robust architectural design with maximum performance and complete digital control.

Enquire Now

Specifications

Product Image
Wattage
500mm-9W/1000mm-18W
Lumen
595 lm - 1830 lm
Beam Angle
10x65°
Cut out
N/A
IP rating
IP 65
check icon
Focused Wall Grazing
Uses a directed 10x65° beam angle to effectively highlight surface textures and architectural depth
check icon
High Efficiency Output
Offers strong lumen packages with up to 18W per meter for impactful illumination of mid-height structures
check icon
Full DMX Color Control
RGB option allows for advanced, dynamic color-changing scenes, precisely controlled via DMX512 or Dali
check icon
Adjustable Mounting
Designed with adjustable mounting brackets for precise aiming and optimal beam placement on vertical surfaces
check icon
Universal Control
Supports DMX512, Dali, Triac, and Analog dimming for simplified integration into any professional control system

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Kosmos 18 2207 W40 x L500 x H30 mm 9 865 2700 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 18 2207 W40 x L500 x H30 mm 9 885 3000 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 18 2207 W40 x L500 x H30 mm 9 915 4000 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 18 2207 W40 x L500 x H30 mm 9 595 RGB 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 18 2207 W40 x L1000 x H30 mm 18 1735 2700 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 18 2207 W40 x L1000 x H30 mm 18 1780 3000 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 18 2207 W40 x L1000 x H30 mm 18 1830 4000 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 18 2207 W40 x L1000 x H30 mm 18 1180 RGB 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
