Kosmos 24

Exterior Spaces

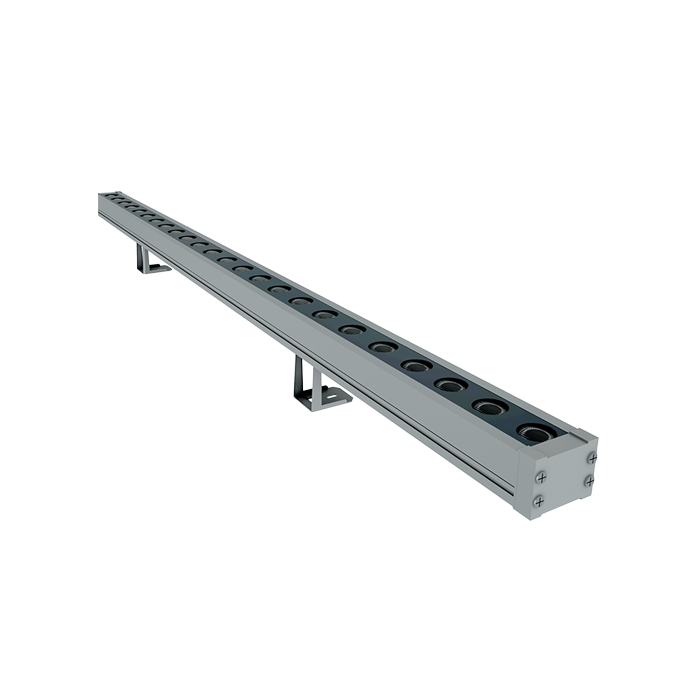

Kosmos 24 is a heavy-duty linear wall washer designed to handle large-scale architectural projects. With power output up to 24W per meter, it delivers exceptional brightness and throw distance, making it suitable for illuminating multi-story buildings and wide façades. It maintains the precise 10x65° beam angle for effective grazing and offers full RGB color capability, ensuring dramatic and vibrant lighting effects under total digital control.

Enquire Now

Specifications

Product Image
Wattage
500mm-12W/1000mm-24W
Lumen
785 lm - 2445 lm
Beam Angle
10x65°
Cut out
N/A
IP rating
IP 65
check icon
Focused Wall Grazing
Uses a directed 10x65° beam angle to effectively highlight surface textures and architectural depth
check icon
High Efficiency Output
Offers strong lumen packages with up to 24W per meter for impactful illumination of mid-height structures
check icon
Full DMX Color Control
RGB option allows for advanced, dynamic color-changing scenes, precisely controlled via DMX512 or Dali
check icon
Adjustable Mounting
Designed with adjustable mounting brackets for precise aiming and optimal beam placement on vertical surfaces
check icon
Universal Control
Supports DMX512, Dali, Triac, and Analog dimming for simplified integration into any professional control system

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Kosmos 24 2208 W40 x L500 x H30 mm 12 1155 2700 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 24 2208 W40 x L500 x H30 mm 12 1185 3000 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 24 2208 W40 x L500 x H30 mm 12 1220 4000 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 24 2208 W40 x L500 x H30 mm 12 785 RGB 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 24 2208 W40 x L1000 x H30 mm 24 2315 2700 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 24 2208 W40 x L1000 x H30 mm 24 2375 3000 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 24 2208 W40 x L1000 x H30 mm 24 2445 4000 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 24 2208 W40 x L1000 x H30 mm 24 1570 RGB 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
