Kosmos 36

  • Gallery Image

Kosmos 36

Exterior Spaces

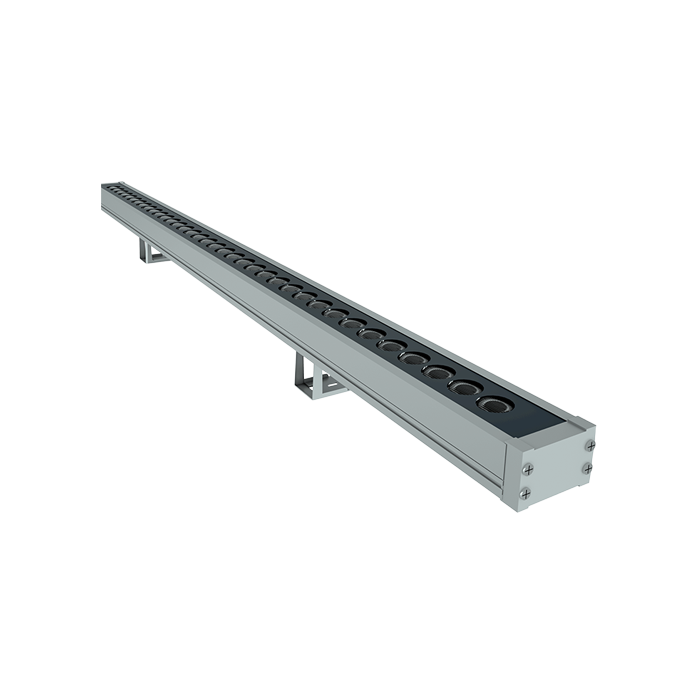

Kosmos 36 is the pinnacle of the Kosmos linear series, offering the highest power output at up to 36W per meter. This fixture is dedicated to the most challenging wall-washing applications, such as illuminating entire skyscrapers, major landmarks, or expansive horizontal surfaces. It provides the maximum lumen package in both white light and RGB, ensuring that even the tallest structures can be bathed in brilliant, saturated, and fully controllable light.

Enquire Now

Specifications

Product Image
Wattage
500mm-18W/1000mm-36W
Lumen
1180 lm - 3660 lm
Beam Angle
10x65°
Cut out
N/A
IP rating
IP 65
check icon
Focused Wall Grazing
Uses a directed 10x65° beam angle to effectively highlight surface textures and architectural depth
check icon
High Efficiency Output
Offers strong lumen packages with up to 24W per meter for impactful illumination of mid-height structures
check icon
Full DMX Color Control
RGB option allows for advanced, dynamic color-changing scenes, precisely controlled via DMX512 or Dali
check icon
Adjustable Mounting
Designed with adjustable mounting brackets for precise aiming and optimal beam placement on vertical surfaces
check icon
Universal Control
Supports DMX512, Dali, Triac, and Analog dimming for simplified integration into any professional control system

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Kosmos 36 2209 W40 x L500 x H30 mm 18 1735 2700 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 36 2209 W40 x L500 x H30 mm 18 1780 3000 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 36 2209 W40 x L500 x H30 mm 18 1830 4000 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 36 2209 W40 x L500 x H30 mm 18 1180 RGB 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 36 2209 W40 x L1000 x H30 mm 36 3475 2700 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 36 2209 W40 x L1000 x H30 mm 36 3560 3000 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 36 2209 W40 x L1000 x H30 mm 36 3660 4000 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Kosmos 36 2209 W40 x L1000 x H30 mm 36 2360 RGB 92 10 x 65 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
