Marcopia Square 4

  • Gallery Image

Marcopia Square 4

Exterior Spaces

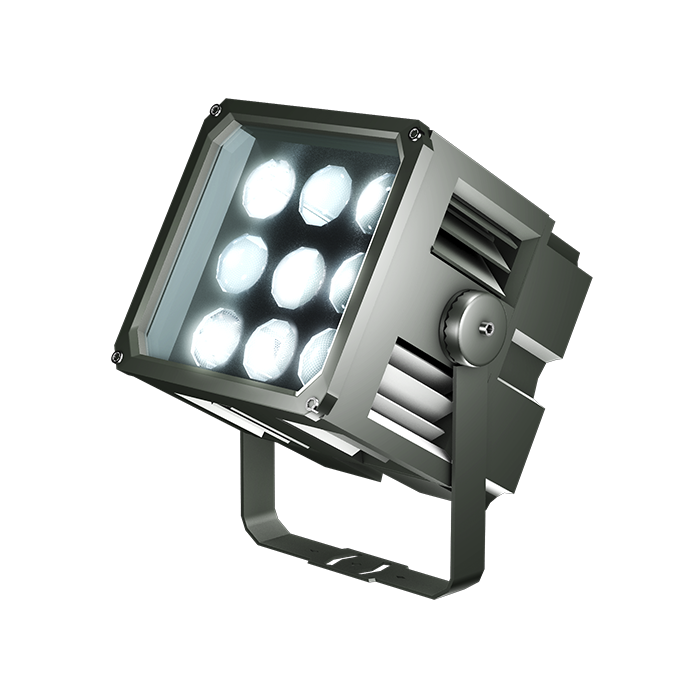

The Marcopia Square 4 elevates square in-ground lighting with more luminous intensity and refined optics. It combines aesthetic minimalism with technical robustness.

Enquire Now

Specifications

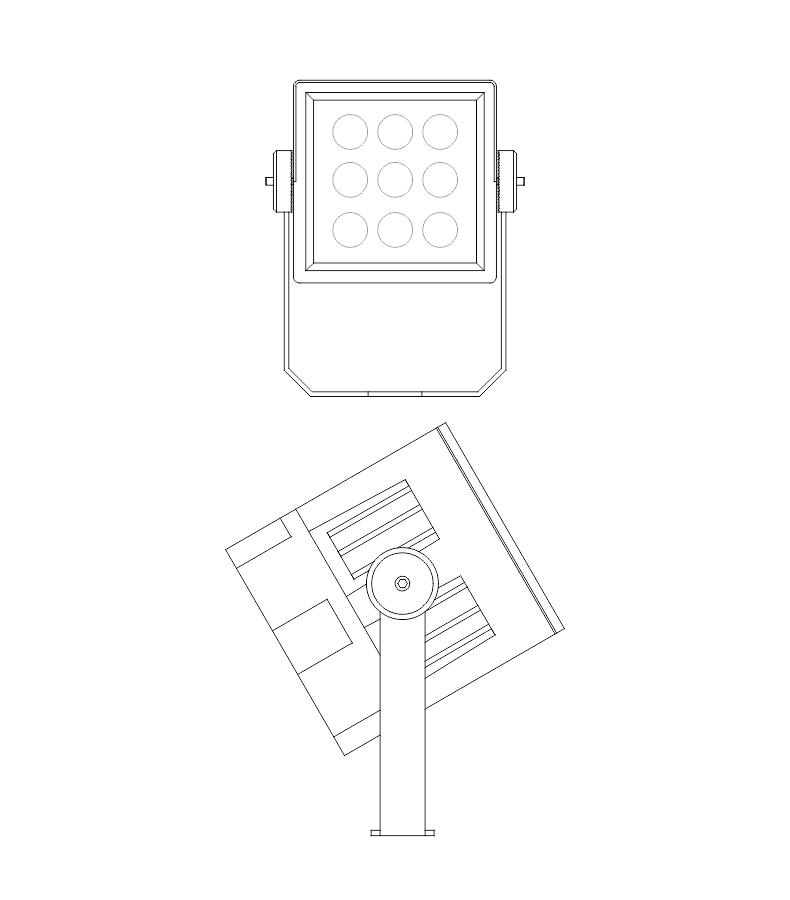

Product Image
Wattage
16W/32W
Lumen
1404lm - 2805lm
Beam Angle
5°/10°/15°/24°/38°/45°/60°
Cut Out
N/A
IP Rating
IP65/IK05
check icon
Precision Linear Optics
Delivers well-defined illumination on façades or surface planes.
check icon
Recessed Anti-Glare Construction
Ideal for visual comfort in commercial outdoor zones.
check icon
Weatherproof Build
Suited for coastal or humid climates with anti-corrosion treatment.
check icon
Abundant Accessories
A comprehensive range of installation accessories - including adjustable tree straps, pole mounting brackets, and ground spikes - ensures versatile and secure positioning of Marcopia fixtures

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 1345 Blue 95 60 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 2430 Green 95 60 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 1570 Red 95 60 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 2805 3000 95 60 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 1345 Blue 95 45 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 2430 Green 95 45 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 1570 Red 95 45 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 2805 3000 95 45 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 1345 Blue 95 38 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 2430 Green 95 38 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 1570 Red 95 38 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 2805 3000 95 38 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 1345 Blue 95 24 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 2430 Green 95 24 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 1570 Red 95 24 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 2805 3000 95 24 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 1345 Blue 95 15 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 2430 Green 95 15 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 1570 Red 95 15 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 2805 3000 95 15 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 1345 Blue 95 10 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 2430 Green 95 10 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 1570 Red 95 10 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 2805 3000 95 10 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 1345 Blue 95 5 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 2430 Green 95 5 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 1570 Red 95 5 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 32 2805 3000 95 5 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 670 Blue 95 60 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 1216 Green 95 60 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 785 Red 95 60 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 1404 3000 95 60 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 670 Blue 95 45 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 1216 Green 95 45 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 785 Red 95 45 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 1404 3000 95 45 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 670 Blue 95 38 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 1216 Green 95 38 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 785 Red 95 38 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 1404 3000 95 38 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 670 Blue 95 24 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 1216 Green 95 24 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 785 Red 95 24 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 1404 3000 95 24 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 670 Blue 95 15 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 1216 Green 95 15 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 785 Red 95 15 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 1404 3000 95 15 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 670 Blue 95 10 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 1216 Green 95 10 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 785 Red 95 10 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 1404 3000 95 10 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 670 Blue 95 5 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 1216 Green 95 5 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 785 Red 95 5 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Marcopia Square 4 3007 L130 x W130 x H230mm 16 1404 3000 95 5 IP65 Honeycomb/Cowl/Spike Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
