High Lumen Output
Designed for illuminating large facades, monuments, and trees.

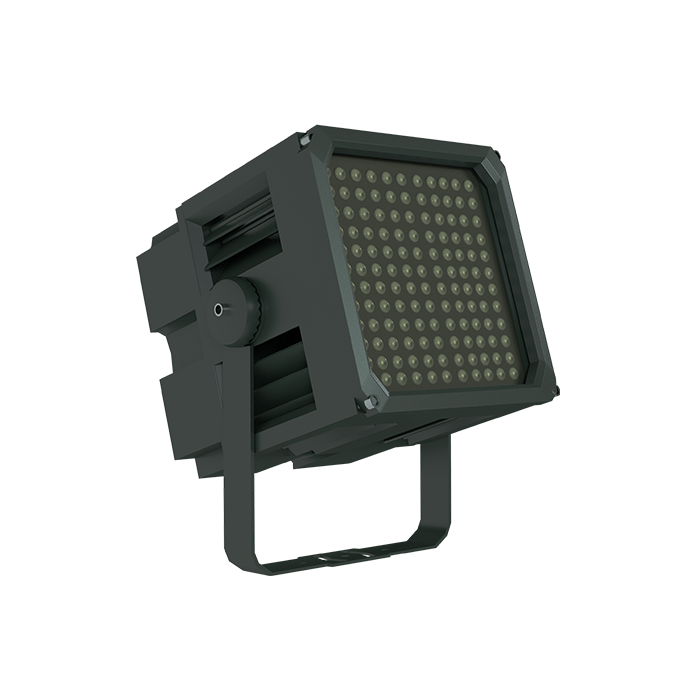

The Marcopia Square 7 is the pinnacle of the series — engineered for architectural landmarks and large outdoor spaces. Its precision-engineered optics and load-resistant body make it the go-to solution for designers seeking impact and endurance.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 5255 | 3000 | 95 | 5 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 2940 | Red | 95 | 5 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 4560 | Green | 95 | 5 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 2520 | Blue | 95 | 5 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 5255 | 3000 | 95 | 10 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 2940 | Red | 95 | 10 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 4560 | Green | 95 | 10 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 2520 | Blue | 95 | 10 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 5255 | 3000 | 95 | 15 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 2940 | Red | 95 | 15 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 4560 | Green | 95 | 15 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 2520 | Blue | 95 | 15 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 5255 | 3000 | 95 | 24 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 2940 | Red | 95 | 24 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 4560 | Green | 95 | 24 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 2520 | Blue | 95 | 24 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 5255 | 3000 | 95 | 38 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 2940 | Red | 95 | 38 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 4560 | Green | 95 | 38 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 2520 | Blue | 95 | 38 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 5255 | 3000 | 95 | 45 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 2940 | Red | 95 | 45 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 4560 | Green | 95 | 45 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 2520 | Blue | 95 | 45 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 5255 | 3000 | 95 | 60 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 2940 | Red | 95 | 60 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 4560 | Green | 95 | 60 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 60 | 2520 | Blue | 95 | 60 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 10515 | 3000 | 95 | 5 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 5880 | Red | 95 | 5 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 9120 | Green | 95 | 5 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 5040 | Blue | 95 | 5 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 10515 | 3000 | 95 | 10 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 5880 | Red | 95 | 10 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 9120 | Green | 95 | 10 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 5040 | Blue | 95 | 10 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 10515 | 3000 | 95 | 15 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 5880 | Red | 95 | 15 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 9120 | Green | 95 | 15 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 5040 | Blue | 95 | 15 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 10515 | 3000 | 95 | 24 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 5880 | Red | 95 | 24 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 9120 | Green | 95 | 24 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 5040 | Blue | 95 | 24 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 10515 | 3000 | 95 | 38 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 5880 | Red | 95 | 38 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 9120 | Green | 95 | 38 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 5040 | Blue | 95 | 38 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 10515 | 3000 | 95 | 45 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 5880 | Red | 95 | 45 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 9120 | Green | 95 | 45 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 5040 | Blue | 95 | 45 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 10515 | 3000 | 95 | 60 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 5880 | Red | 95 | 60 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 9120 | Green | 95 | 60 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Marcopia Square 7 | 3010 | L213 x W213 x H332mm | 120 | 5040 | Blue | 95 | 60 | IP65 | Honeycomb/Cowl | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
