Extreme Impact Resistance
IK08 rating confirms its ability to withstand significant physical impact, essential for ground fixtures.

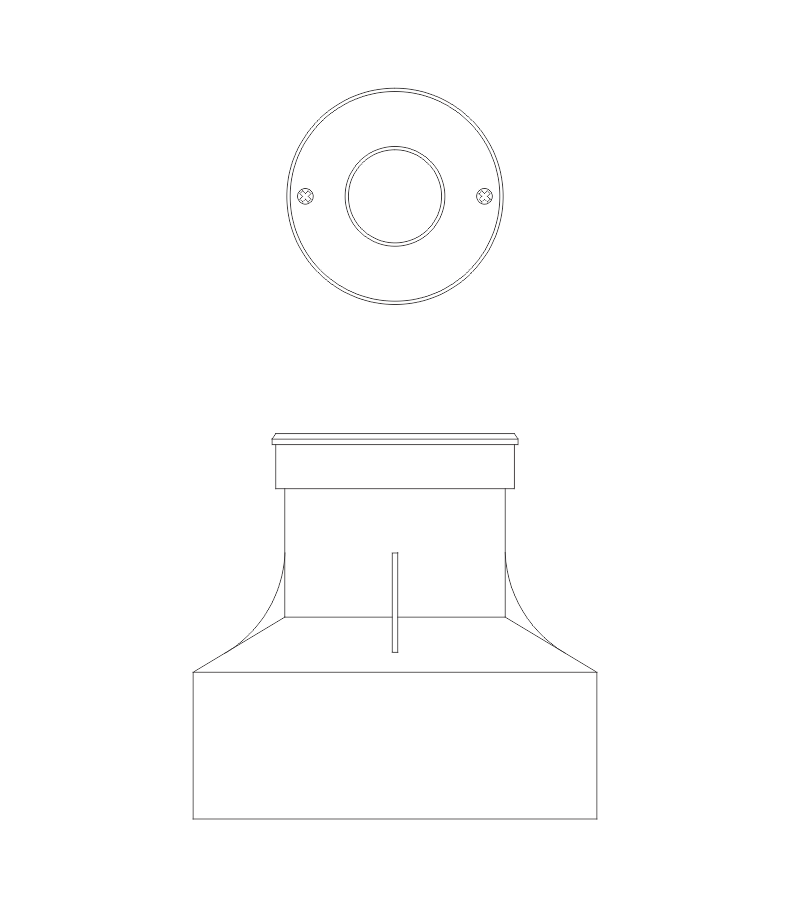

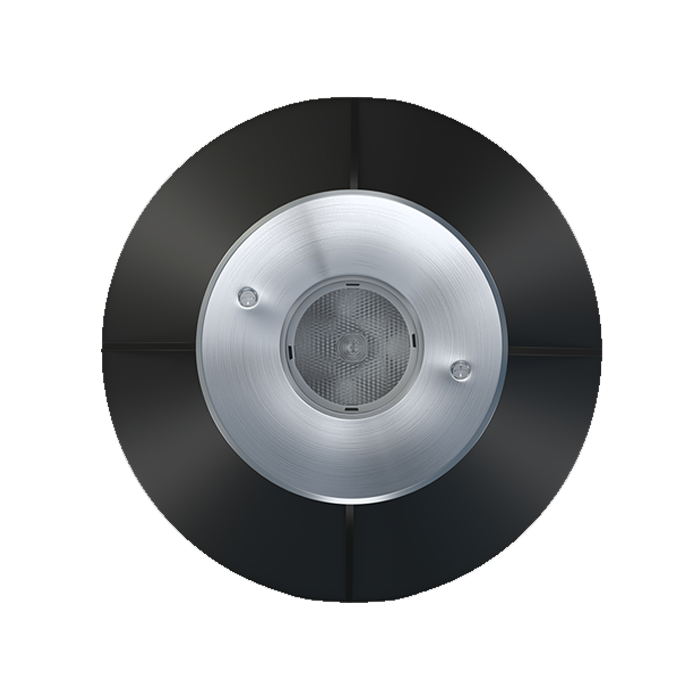

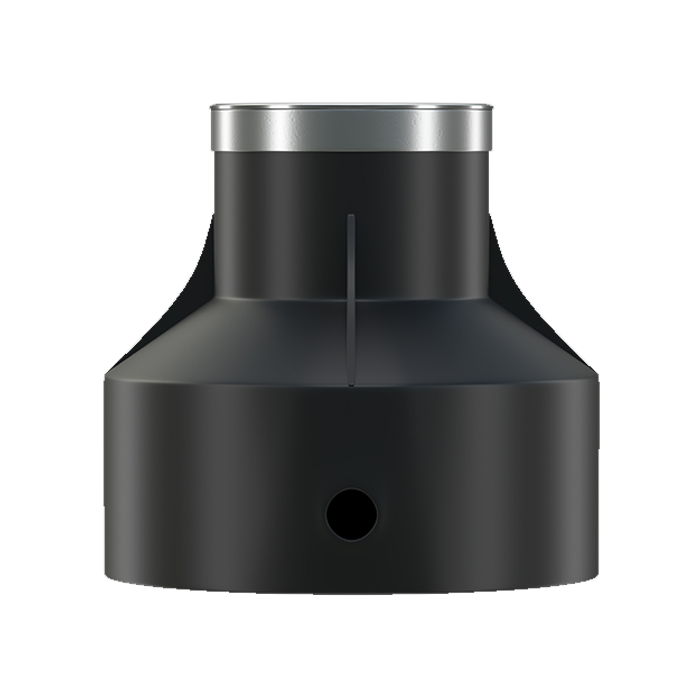

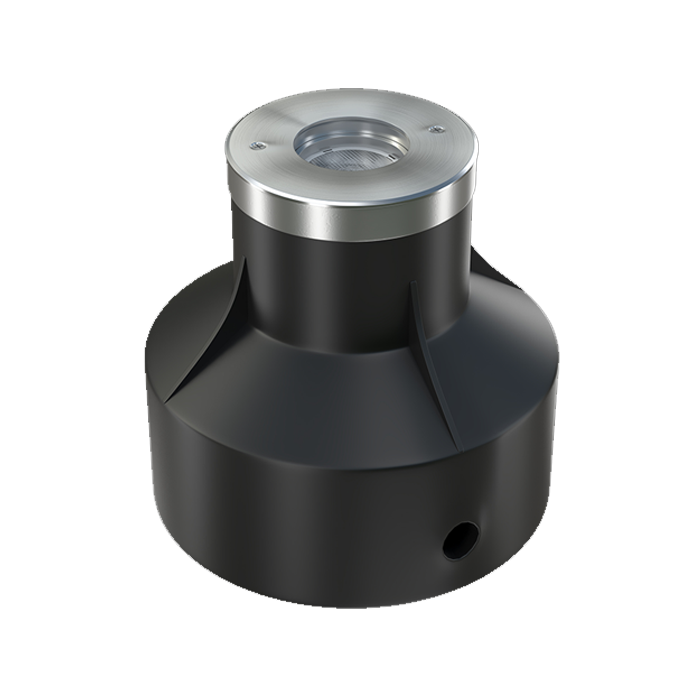

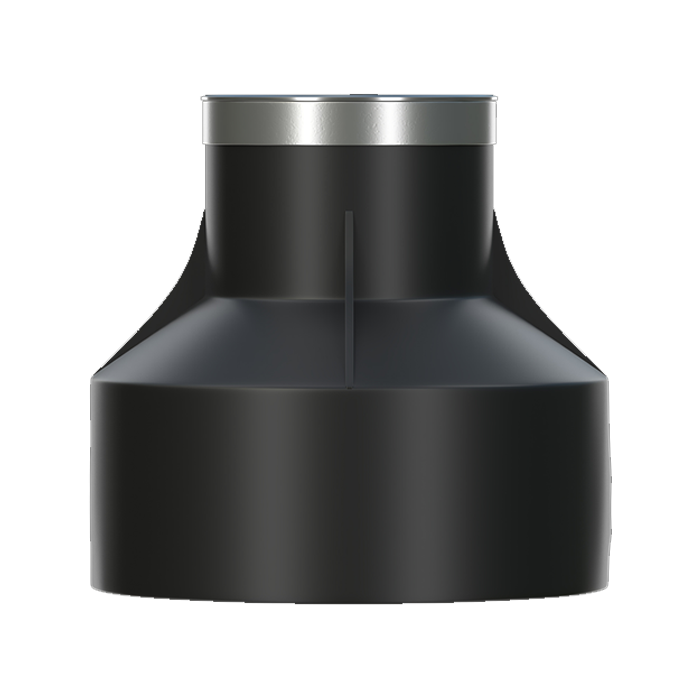

Shuays R1 provides an ideal balance of power, size, and beam versatility. With its 65mm dia and up to 3W output, it is the versatile workhorse of the series, suitable for highlighting larger architectural features or providing effective pathway illumination. The R1 features an Asymmetric beam option, enabling efficient wall-grazing from a recessed ground position, all while being protected by the highly durable IP68/IK08 enclosure.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 132 | Blue | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 132 | Blue | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 132 | Blue | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 132 | Blue | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 132 | Blue | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 132 | Blue | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 44 | Blue | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 44 | Blue | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 44 | Blue | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 44 | Blue | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 44 | Blue | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 44 | Blue | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 231 | Green | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 231 | Green | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 231 | Green | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 231 | Green | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 231 | Green | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 231 | Green | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 77 | Green | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 77 | Green | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 77 | Green | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 77 | Green | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 77 | Green | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 77 | Green | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 153 | Red | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 153 | Red | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 153 | Red | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 153 | Red | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 153 | Red | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 153 | Red | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 51 | Red | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 51 | Red | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 51 | Red | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 51 | Red | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 51 | Red | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 51 | Red | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 270 | 3000 | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 270 | 3000 | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 270 | 3000 | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 270 | 3000 | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 270 | 3000 | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 3 | 270 | 3000 | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 90 | 3000 | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 90 | 3000 | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 90 | 3000 | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 90 | 3000 | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 90 | 3000 | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R1 | 3051 | Dia 65 x H 105mm | 1 | 90 | 3000 | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
