Superior Power Output
18W or 27W options deliver extremely high lumen packages (up to 2420lm @ 3000K) for long-distance throws.

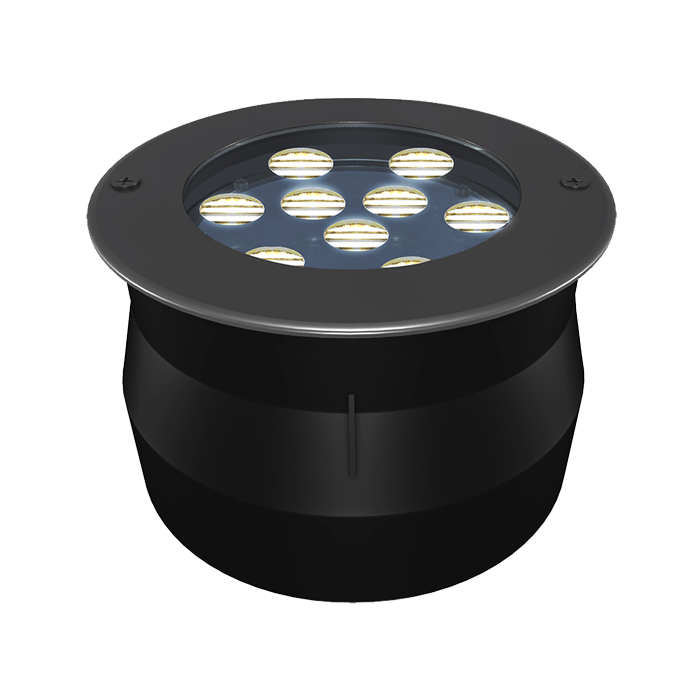

Shuays R9 increases the power to up to 27W within a dia of 160mm trim, positioning it as the ideal fixture for applications that demand extended throw or significant light saturation. It is purpose-built for illuminating tall building façades, very large trees, or historical monuments, ensuring the architectural details are visible and dramatic even from a distance.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 1185 | Blue | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 1185 | Blue | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 1185 | Blue | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 1185 | Blue | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 1185 | Blue | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 1185 | Blue | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 790 | Blue | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 790 | Blue | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 790 | Blue | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 790 | Blue | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 790 | Blue | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 790 | Blue | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 2080 | Green | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 2080 | Green | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 2080 | Green | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 2080 | Green | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 2080 | Green | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 2080 | Green | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 1385 | Green | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 1385 | Green | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 1385 | Green | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 1385 | Green | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 1385 | Green | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 1385 | Green | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 1375 | Red | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 1375 | Red | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 1375 | Red | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 1375 | Red | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 1375 | Red | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 1375 | Red | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 920 | Red | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 920 | Red | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 920 | Red | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 920 | Red | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 920 | Red | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 920 | Red | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 2420 | 3000 | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 2420 | 3000 | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 2420 | 3000 | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 2420 | 3000 | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 2420 | 3000 | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 27 | 2420 | 3000 | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 1615 | 3000 | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 1615 | 3000 | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 1615 | 3000 | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 1615 | 3000 | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 1615 | 3000 | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R9 | 3054 | Dia 160 x H 105mm | 18 | 1615 | 3000 | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
