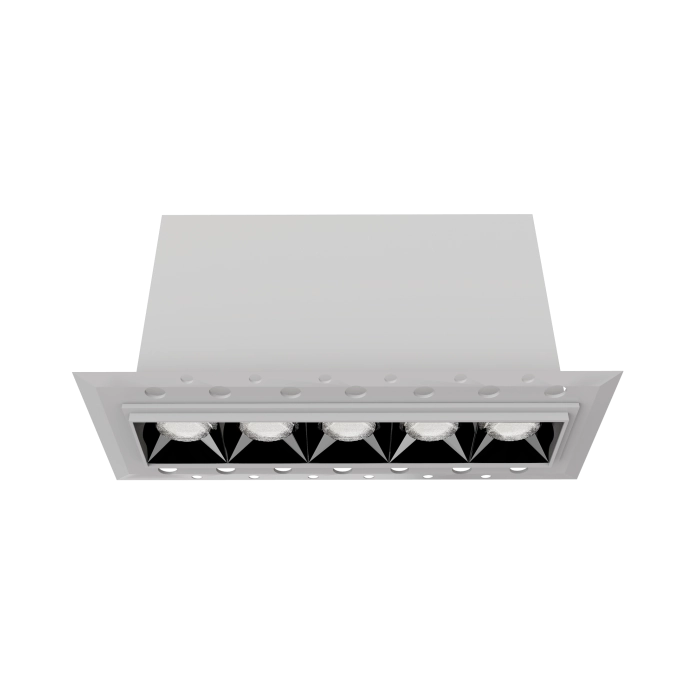

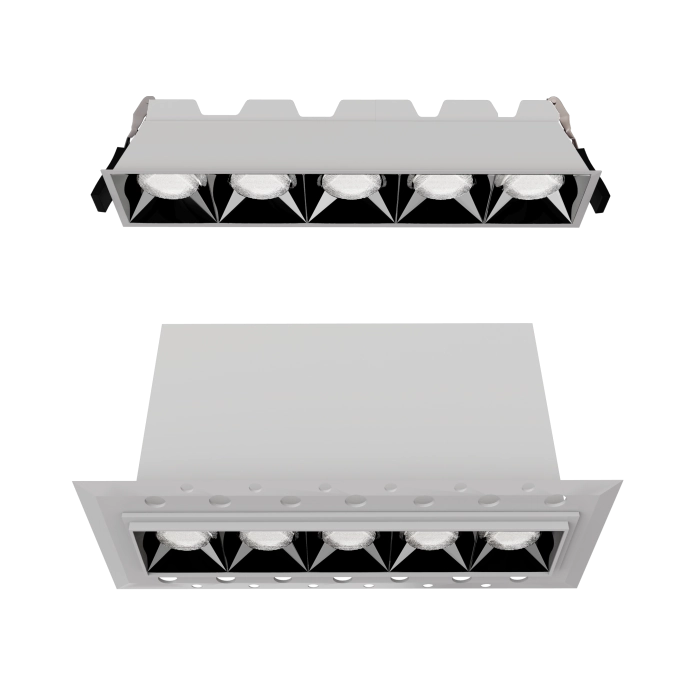

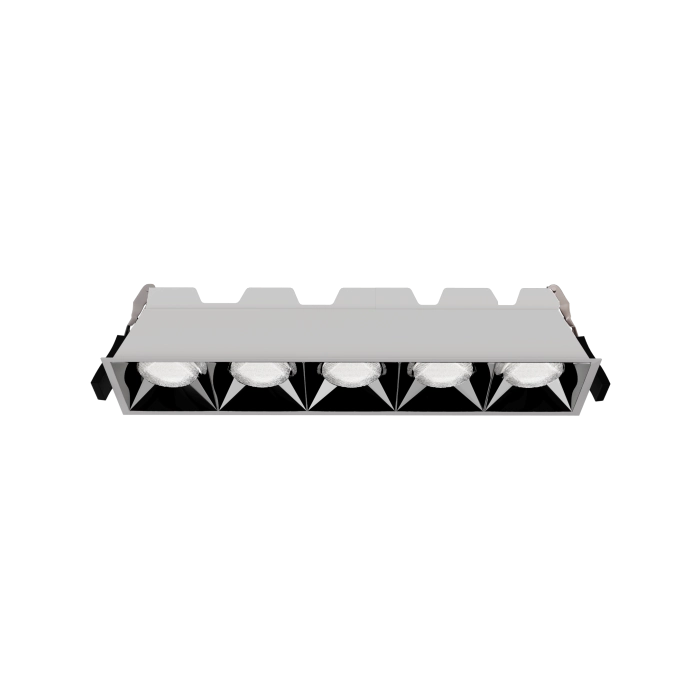

Aeonic Brick 1×5 (Trim & Trimless)

Interior Spaces

The Aeonic Brick 1×5 expands precision illumination into a five-module configuration for broader coverage. Its diamond-shaped optics deliver uniform brightness with excellent beam control, ideal for corridors, galleries, and retail aisles. The trimless variant features the push-to-release ceiling protection system for secure, maintenance-friendly operation.

Enquire Now

Specifications

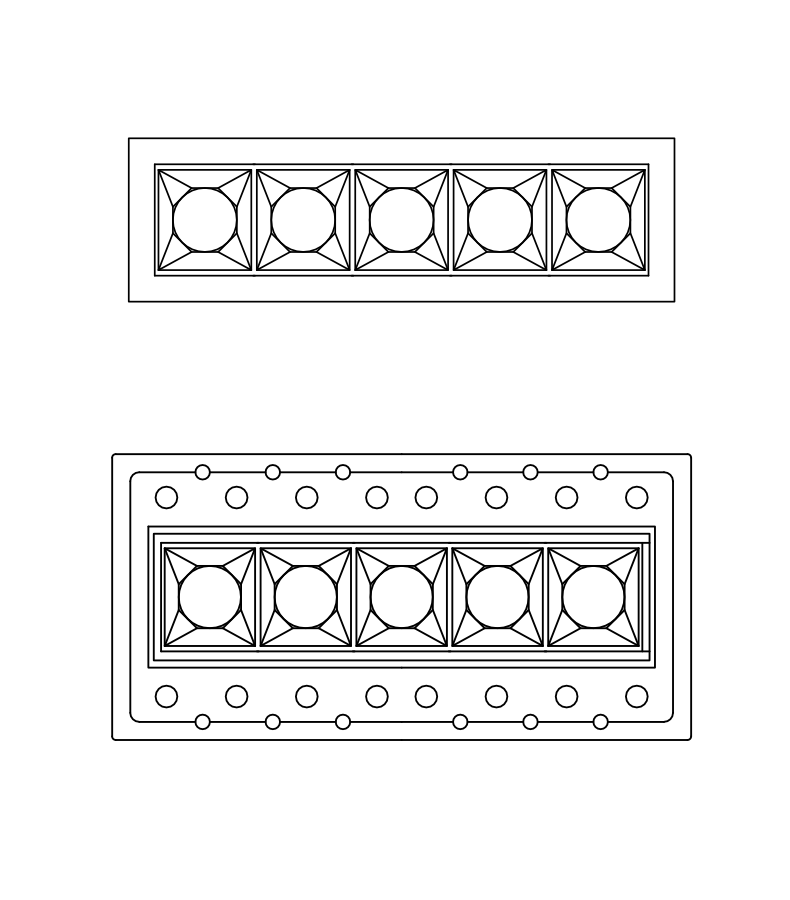

Product Image
Wattage
10W
Lumen
905 lm - 955 lm
Beam Angle
15°/ 24°/ 38°/ 60°/Wallwash
UGR
<19
IP rating
IP20
check icon
Five-Module Linear Design
Provides extended, seamless illumination for large areas.
check icon
Push-to-Release Ceiling Protection System (Trimless)
Simplifies driver servicing and fixture access.
check icon
Optimized Optics
Maintains high visual comfort and beam uniformity.
check icon
Architectural Flexibility
Trim and trimless variants adapt to ceiling styles.
check icon
Comprehensive Dimming Compatibility
Supports Non-Dimmable, Analog, Triac, DALI, DALI Tunable, and RF Tunable systems.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual

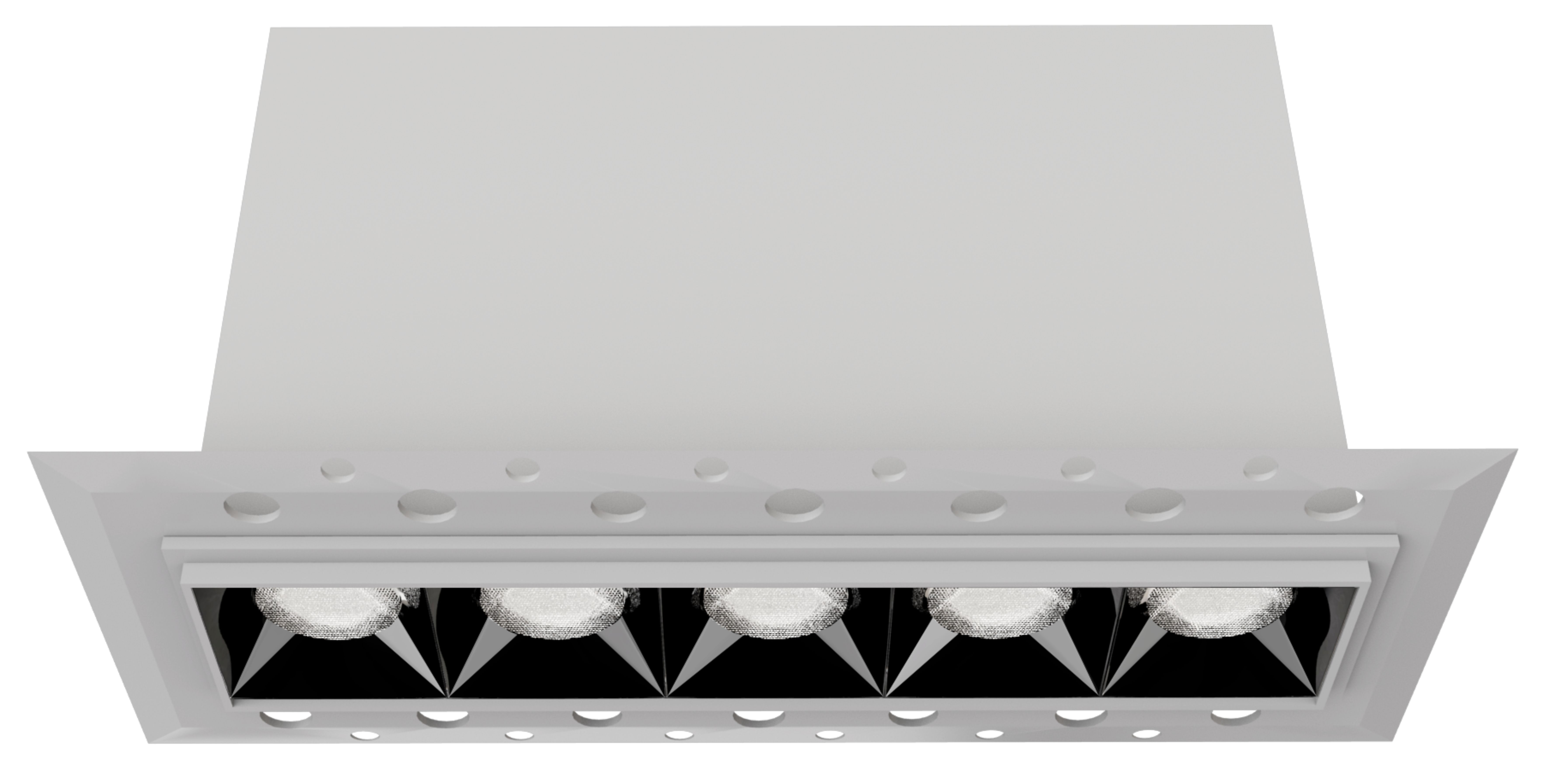

product-img Aeonic Brick 1x5-Trimless 1267 W160 x H73 mm 10 955 4000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trimless 1267 W160 x H73 mm 10 955 4000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trimless 1267 W160 x H73 mm 10 955 4000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trimless 1267 W160 x H73 mm 10 955 4000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trimless 1267 W160 x H73 mm 10 930 3000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trimless 1267 W160 x H73 mm 10 930 3000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trimless 1267 W160 x H73 mm 10 930 3000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trimless 1267 W160 x H73 mm 10 930 3000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trimless 1267 W160 x H73 mm 10 905 2700 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trimless 1267 W160 x H73 mm 10 905 2700 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trimless 1267 W160 x H73 mm 10 905 2700 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trimless 1267 W160 x H73 mm 10 905 2700 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trim 1266 W147 x H48 mm 10 955 4000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trim 1266 W147 x H48 mm 10 955 4000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trim 1266 W147 x H48 mm 10 955 4000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trim 1266 W147 x H48 mm 10 955 4000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trim 1266 W147 x H48 mm 10 930 3000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trim 1266 W147 x H48 mm 10 930 3000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trim 1266 W147 x H48 mm 10 930 3000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trim 1266 W147 x H48 mm 10 930 3000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trim 1266 W147 x H48 mm 10 905 2700 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trim 1266 W147 x H48 mm 10 905 2700 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trim 1266 W147 x H48 mm 10 905 2700 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x5-Trim 1266 W147 x H48 mm 10 905 2700 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
