Aeonic-Brick-1x2

  • Gallery Image

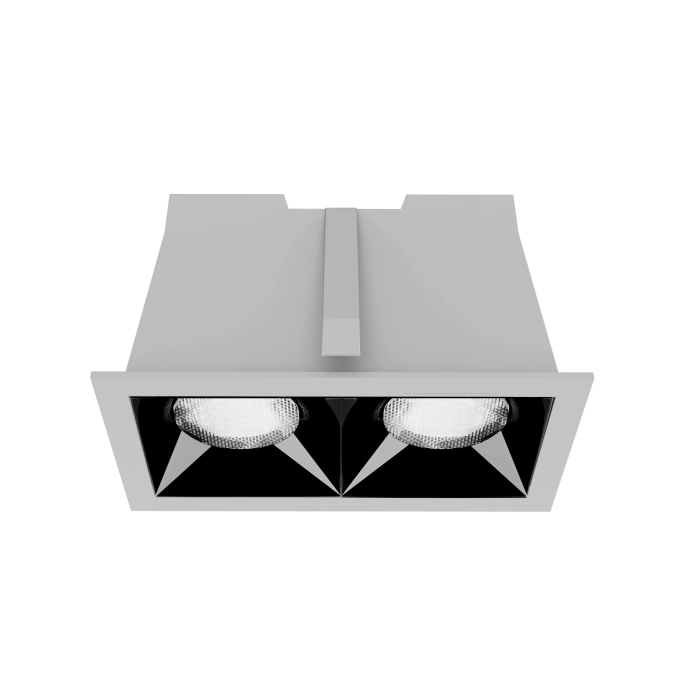

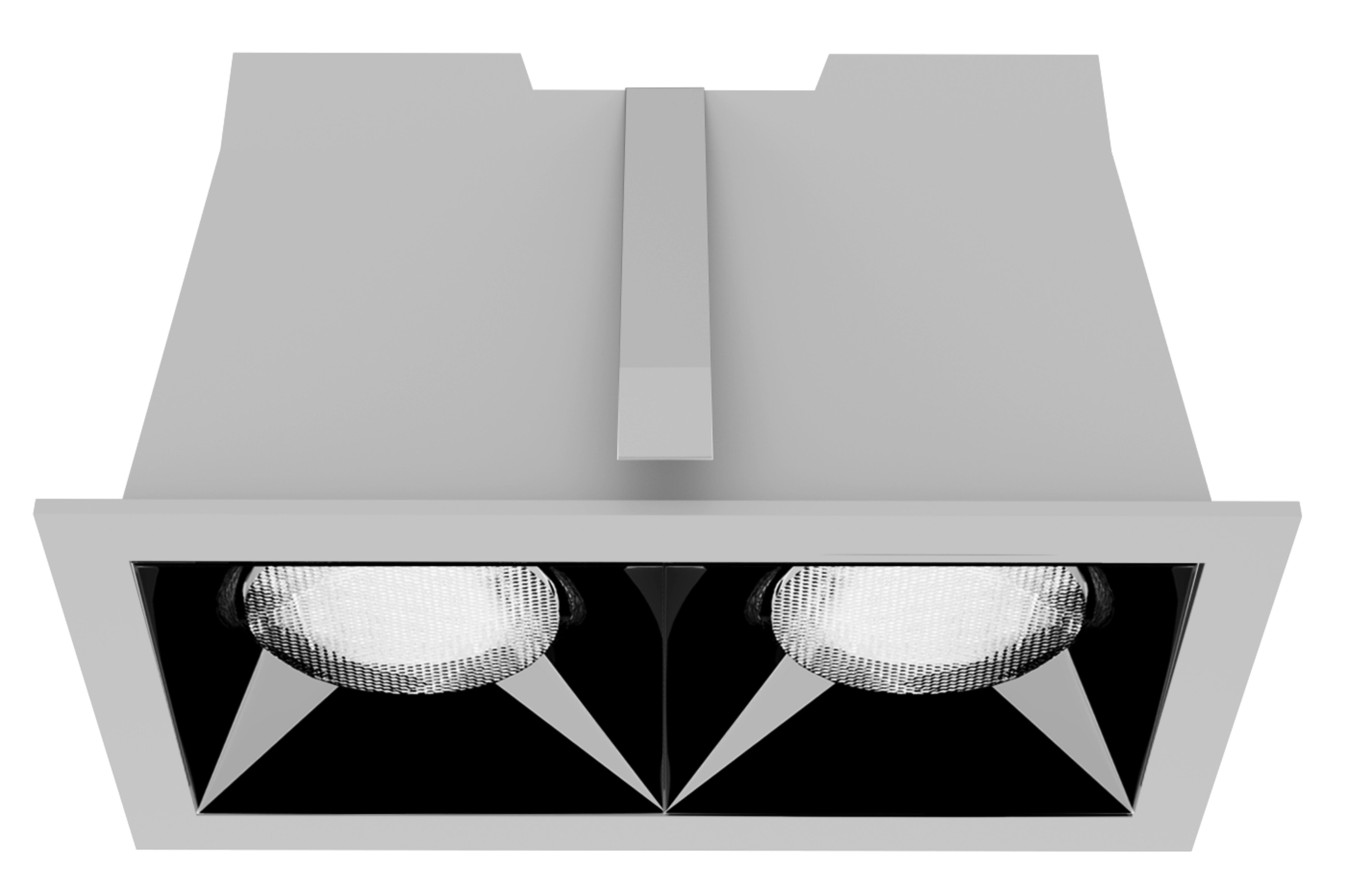

Aeonic-Brick-1x2

Interior Spaces

The Aeonic Brick 1x2 extends the design sophistication of the series with twin diamond reflectors, delivering balanced, precise illumination for corridors, showcases, or architectural details. Its linear optical system ensures uniform beam blending and visual comfort while maintaining exceptional color rendering and efficiency

Enquire Now

Specifications

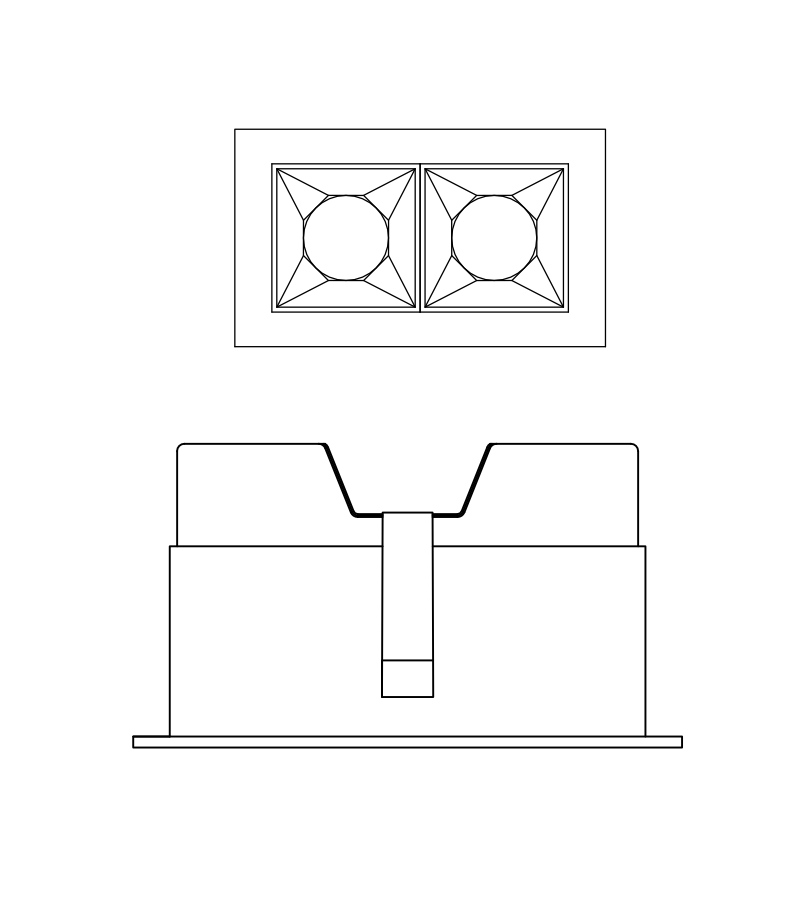

Product Image
Wattage
4W
Lumen
370 lm - 388 lm
Beam Angle
15°/ 24°/ 38°/ 60°
UGR
<19
IP rating
IP20
check icon
Dual Reflector Configuration
Ensures symmetrical light distribution and consistent visual output across both beams.
check icon
Precision-Formed Optics
Engineered for uniform brightness and minimal spill.
check icon
Architectural Adaptability
Ideal for recessed ceiling integration in retail or hospitality environments.
check icon
Comprehensive Dimming Compatibility
Available with Non-Dimmable, Analog, Triac, DALI, DALI Tunable, and RF Tunable dimming control.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Aeonic Brick 1x2 1254 W75 x H42 mm 4 388 4000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x2 1254 W75 x H42 mm 4 388 4000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x2 1254 W75 x H42 mm 4 388 4000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x2 1254 W75 x H42 mm 4 388 4000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x2 1254 W75 x H42 mm 4 380 3000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x2 1254 W75 x H42 mm 4 380 3000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x2 1254 W75 x H42 mm 4 380 3000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x2 1254 W75 x H42 mm 4 380 3000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x2 1254 W75 x H42 mm 4 370 2700 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x2 1254 W75 x H42 mm 4 370 2700 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x2 1254 W75 x H42 mm 4 370 2700 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x2 1254 W75 x H42 mm 4 370 2700 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
