Aeonic Brick Surface 1×10

Interior Spaces

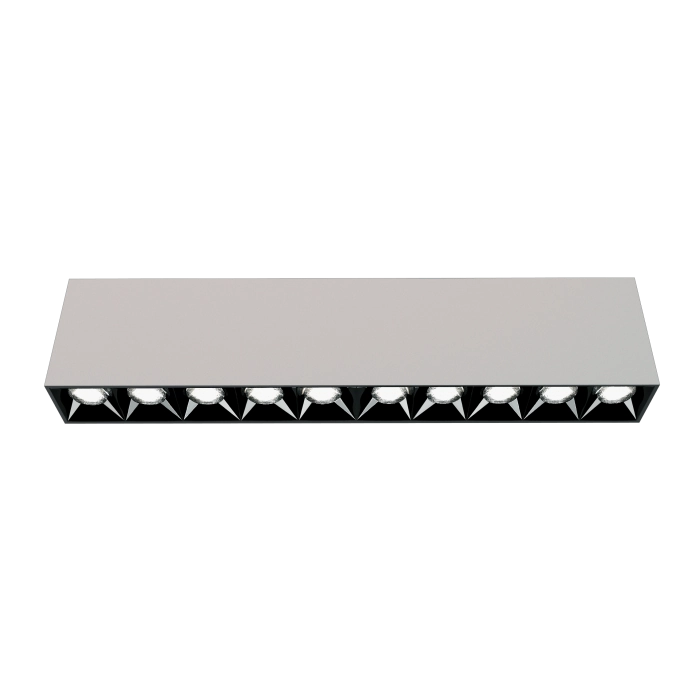

Purpose-built for large-scale illumination, the Aeonic Brick Surface 1×10 provides high-output linear lighting in a surface-mounted body. Ten diamond-reflector modules ensure impeccable beam continuity and glare control, creating a striking architectural statement across expansive spaces

Enquire Now

Specifications

Product Image
Wattage
20W
Lumen
1830 lm - 1935 lm
Beam Angle
15°/ 24°/ 38°/ 60°/Wallwash
UGR
<19
IP rating
IP20
check icon
High-Capacity Linear Format
Ideal for galleries, halls, and commercial corridors.
check icon
Diamond Reflector System
Provides precise optical focus with uniform brightness.
check icon
Surface-Mount Convenience
Enables straightforward installation without ceiling recess.
check icon
Comprehensive Dimming Compatibility
Offered with Non-Dimmable, Analog, Triac, DALI, DALI Tunable, and RF Tunable options.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Aeonic Brick 1x10-Surface 1275 W270 x H65 mm 20 1935 4000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Surface 1275 W270 x H65 mm 20 1935 4000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Surface 1275 W270 x H65 mm 20 1935 4000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Surface 1275 W270 x H65 mm 20 1935 4000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Surface 1275 W270 x H65 mm 20 1935 4000 92 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Surface 1275 W270 x H65 mm 20 1875 3000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Surface 1275 W270 x H65 mm 20 1875 3000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Surface 1275 W270 x H65 mm 20 1875 3000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Surface 1275 W270 x H65 mm 20 1875 3000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Surface 1275 W270 x H65 mm 20 1875 3000 92 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Surface 1275 W270 x H65 mm 20 1830 2700 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Surface 1275 W270 x H65 mm 20 1830 2700 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Surface 1275 W270 x H65 mm 20 1830 2700 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Surface 1275 W270 x H65 mm 20 1830 2700 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x10-Surface 1275 W270 x H65 mm 20 1830 2700 92 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
