Aeonic Circle 1×3 (Trim & Trimless)

  • Gallery Image
  • Gallery Image
  • Gallery Image

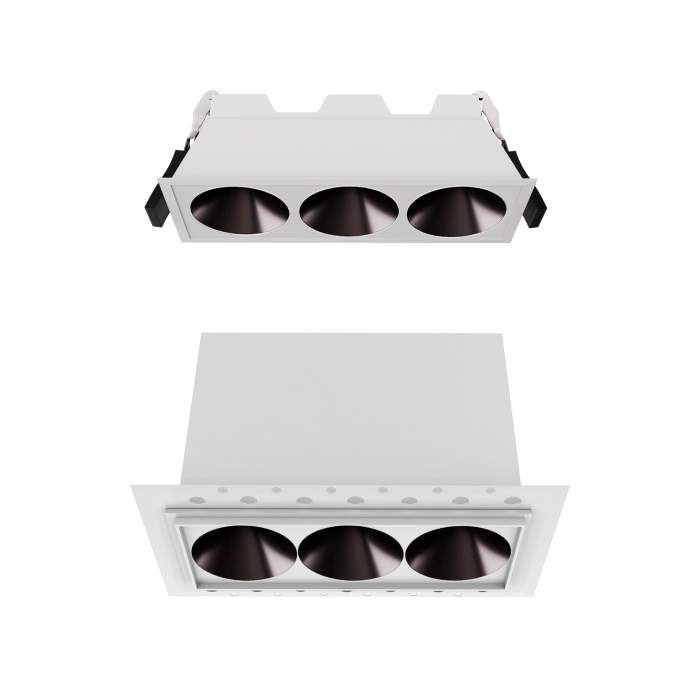

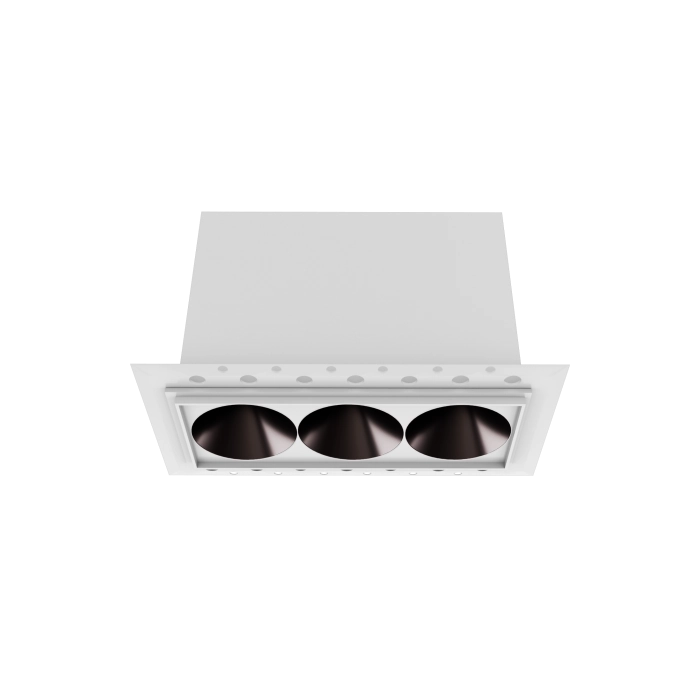

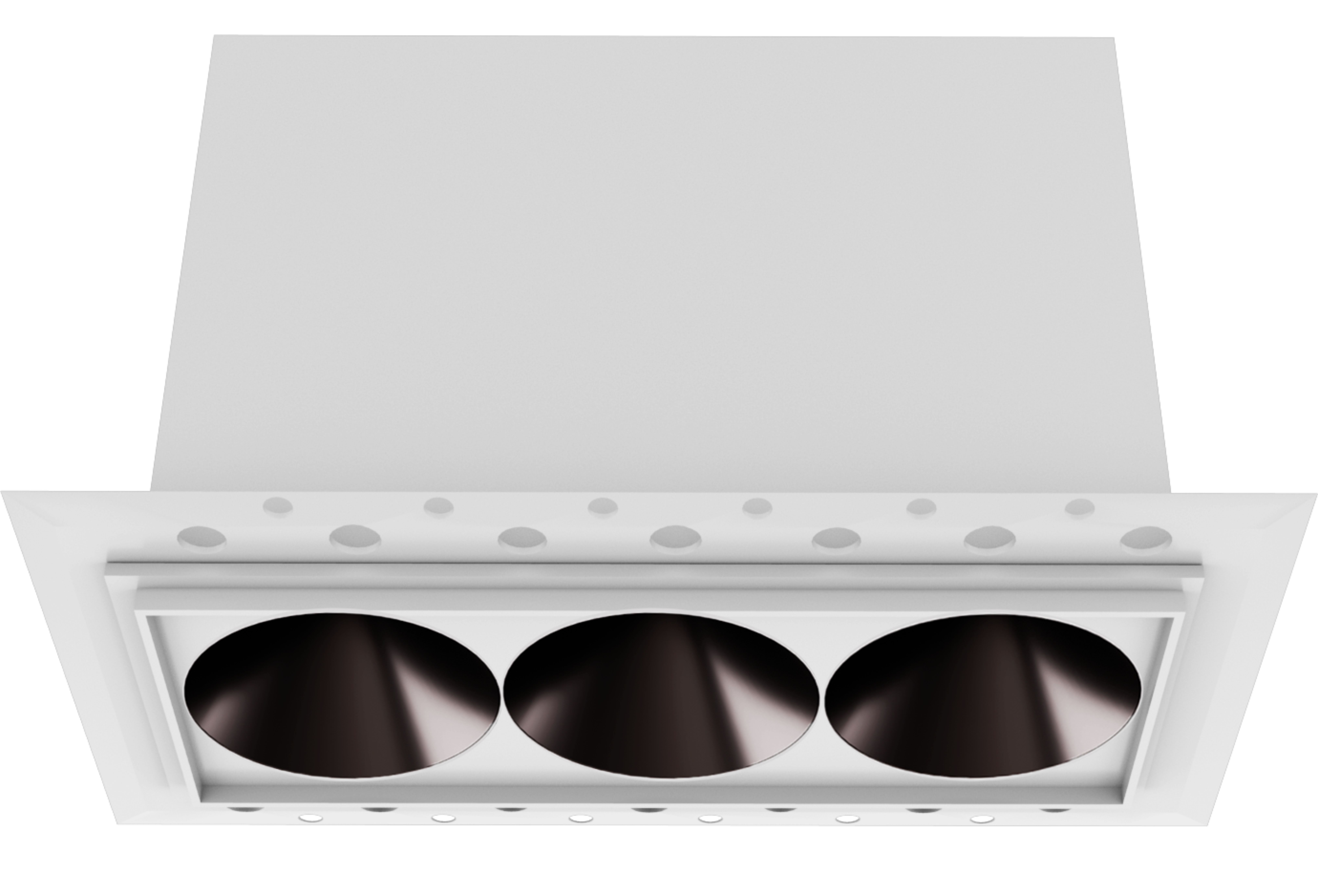

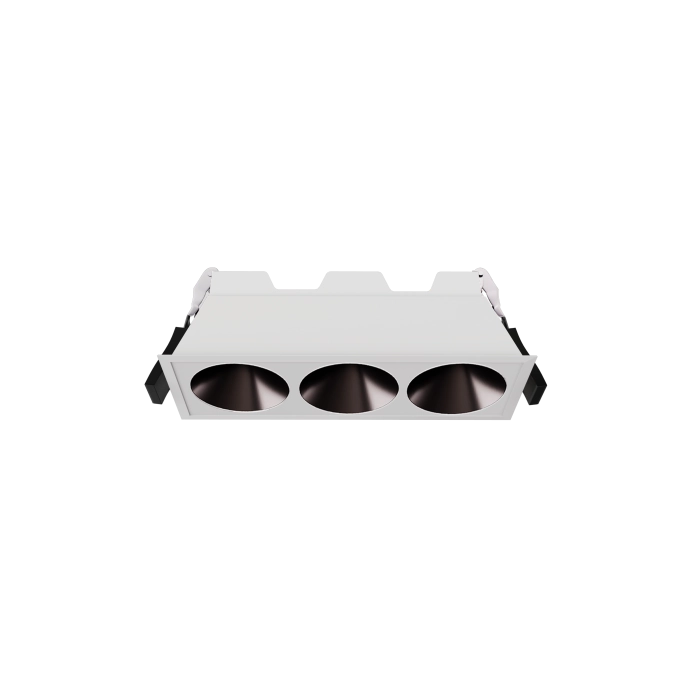

Aeonic Circle 1×3 (Trim & Trimless)

Interior Spaces

The Aeonic Circle 1×3 delivers elegant, diffused illumination through three precisely aligned circular reflectors. Designed for architectural harmony, it provides soft, balanced light suitable for feature walls, lounges, and high-end retail environments. The trimless model incorporates a push-to-release ceiling protection system for effortless installation and maintenance access

Enquire Now

Specifications

Product Image
Wattage
6W
Lumen
550 lm - 580 lm
Beam Angle
15°/ 24°/ 38°
UGR
<19
IP rating
IP20
check icon
Triple Circular Reflector System
Creates continuous, even illumination with low glare.
check icon
Push-to-Release Ceiling Protection System (Trimless)
Ensures safe handling and quick maintenance without ceiling damage.
check icon
Optical Precision
Maintains beam consistency across multiple modules.
check icon
Architectural Integration
Trim and trimless styles adapt to varied ceiling compositions.
check icon
Comprehensive Dimming Compatibility
Supports Non-Dimmable, Analog, Triac, DALI, DALI Tunable, and RF Tunable dimming.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Aeonic Circle 1x3-Trimless 1264 W108 x H73 mm 6 580 4000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trimless 1264 W108 x H73 mm 6 580 4000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trimless 1264 W108 x H73 mm 6 580 4000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trimless 1264 W108 x H73 mm 6 580 4000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trimless 1264 W108 x H73 mm 6 565 3000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trimless 1264 W108 x H73 mm 6 565 3000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trimless 1264 W108 x H73 mm 6 565 3000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trimless 1264 W108 x H73 mm 6 565 3000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trimless 1264 W108 x H73 mm 6 550 2700 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trimless 1264 W108 x H73 mm 6 550 2700 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trimless 1264 W108 x H73 mm 6 550 2700 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trimless 1264 W108 x H73 mm 6 550 2700 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trim 1263 W95 x H38 mm 6 580 4000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trim 1263 W95 x H38 mm 6 580 4000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trim 1263 W95 x H38 mm 6 580 4000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trim 1263 W95 x H38 mm 6 580 4000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trim 1263 W95 x H38 mm 6 565 3000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trim 1263 W95 x H38 mm 6 565 3000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trim 1263 W95 x H38 mm 6 565 3000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trim 1263 W95 x H38 mm 6 565 3000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable - Download Download Download
product-img Aeonic Circle 1x3-Trim 1263 W95 x H38 mm 6 550 2700 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trim 1263 W95 x H38 mm 6 550 2700 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trim 1263 W95 x H38 mm 6 550 2700 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x3-Trim 1263 W95 x H38 mm 6 550 2700 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable - Download Download Download
