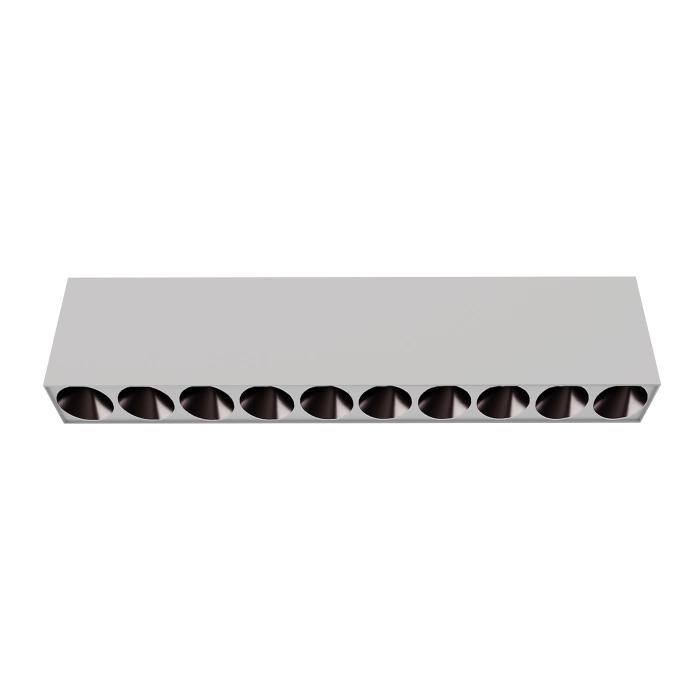

Aeonic Circle Surface 1×10

  • Gallery Image

Aeonic Circle Surface 1×10

Interior Spaces

The Aeonic Circle Surface 1×10 combines large-format illumination with surface-mounted practicality. Featuring ten circular reflectors, it delivers balanced brightness and architectural refinement, well suited for modern commercial or hospitality interiors

Enquire Now

Specifications

Product Image
Wattage
20W
Lumen
1830 lm 1935 lm
Beam Angle
15°/ 24°/ 38°
UGR
<19
IP rating
IP20
check icon
Surface-Mounted Linear Design
Provides wide coverage for open-ceiling applications.
check icon
Circular Reflector System
Creates smooth, visually comfortable lighting with minimal glare.
check icon
Architectural Elegance
Complements high-end interior environments with minimal visual intrusion.
check icon
Comprehensive Dimming Compatibility
Offered with Non-Dimmable, Analog, Triac, DALI, DALI Tunable, and RF Tunable dimming.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Aeonic Circle 1x10-Surface 1275 W270 x H65 mm 20 1935 4000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x10-Surface 1275 W270 x H65 mm 20 1935 4000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x10-Surface 1275 W270 x H65 mm 20 1935 4000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x10-Surface 1275 W270 x H65 mm 20 1935 4000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable - Download Download Download
product-img Aeonic Circle 1x10-Surface 1275 W270 x H65 mm 20 1935 4000 92 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable - Download Download Download
product-img Aeonic Circle 1x10-Surface 1275 W270 x H65 mm 20 1875 3000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x10-Surface 1275 W270 x H65 mm 20 1875 3000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x10-Surface 1275 W270 x H65 mm 20 1875 3000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x10-Surface 1275 W270 x H65 mm 20 1875 3000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable - Download Download Download
product-img Aeonic Circle 1x10-Surface 1275 W270 x H65 mm 20 1875 3000 92 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable - Download Download Download
product-img Aeonic Circle 1x10-Surface 1275 W270 x H65 mm 20 1830 2700 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x10-Surface 1275 W270 x H65 mm 20 1830 2700 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x10-Surface 1275 W270 x H65 mm 20 1830 2700 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x10-Surface 1275 W270 x H65 mm 20 1830 2700 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable - Download Download Download
product-img Aeonic Circle 1x10-Surface 1275 W270 x H65 mm 20 1830 2700 92 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable - Download Download Download
