Aeonic Circle Surface 1×5

  • Gallery Image

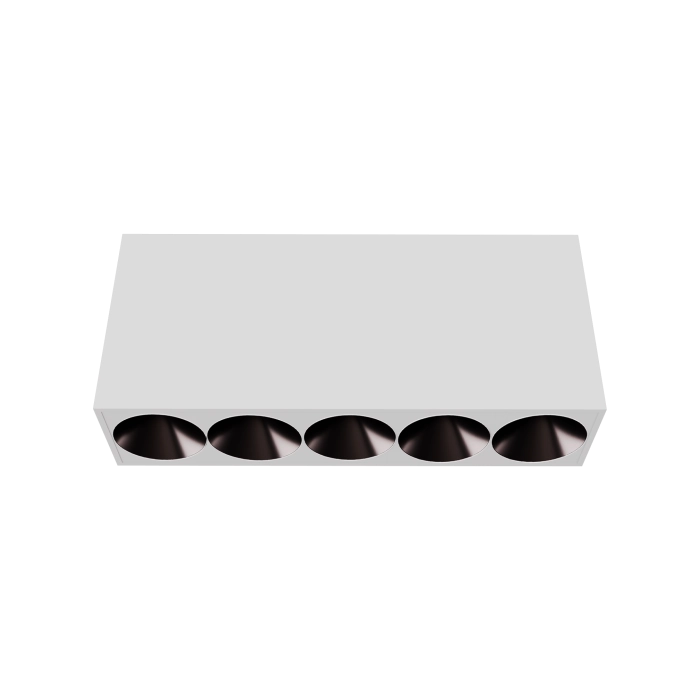

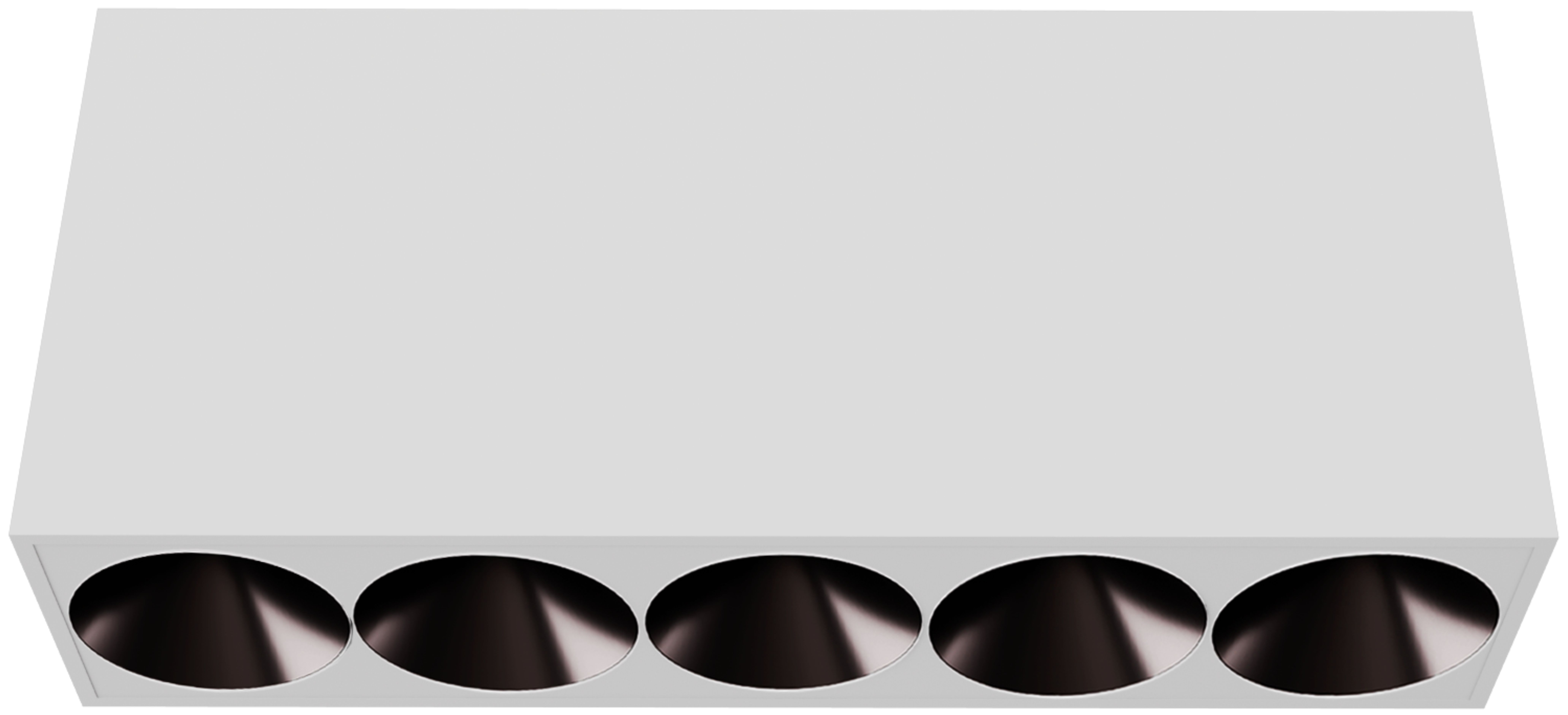

Aeonic Circle Surface 1×5

Interior Spaces

Built for applications where surface integration is required, the Aeonic Circle Surface 1×5 offers wide-coverage illumination with refined circular optics. Its clean, linear design complements exposed ceiling styles while providing high luminous efficacy and consistent beam uniformity

Enquire Now

Specifications

Product Image
Wattage
10W
Lumen
905 lm - 955 lm
Beam Angle
15°/ 24°/ 38°
UGR
<19
IP rating
IP20
check icon
Surface-Mounted Configuration
Simplifies installation and retrofitting.
check icon
Circular Optics
Ensures glare-free, diffused light with low UGR.
check icon
Architectural Simplicity
Blends easily with contemporary interior aesthetics.
check icon
Comprehensive Dimming Compatibility
Available in Non-Dimmable, Analog, Triac, DALI, DALI Tunable, and RF Tunable control options.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Aeonic Circle 1x5-Surface 1271 W137 x H65 mm 10 955 4000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Surface 1271 W137 x H65 mm 10 955 4000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Surface 1271 W137 x H65 mm 10 955 4000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Surface 1271 W137 x H65 mm 10 955 4000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable - Download Download Download
product-img Aeonic Circle 1x5-Surface 1271 W137 x H65 mm 10 930 3000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Surface 1271 W137 x H65 mm 10 930 3000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Surface 1271 W137 x H65 mm 10 930 3000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Surface 1271 W137 x H65 mm 10 930 3000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable - Download Download Download
product-img Aeonic Circle 1x5-Surface 1271 W137 x H65 mm 10 905 2700 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Surface 1271 W137 x H65 mm 10 905 2700 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Surface 1271 W137 x H65 mm 10 905 2700 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Surface 1271 W137 x H65 mm 10 905 2700 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable - Download Download Download
