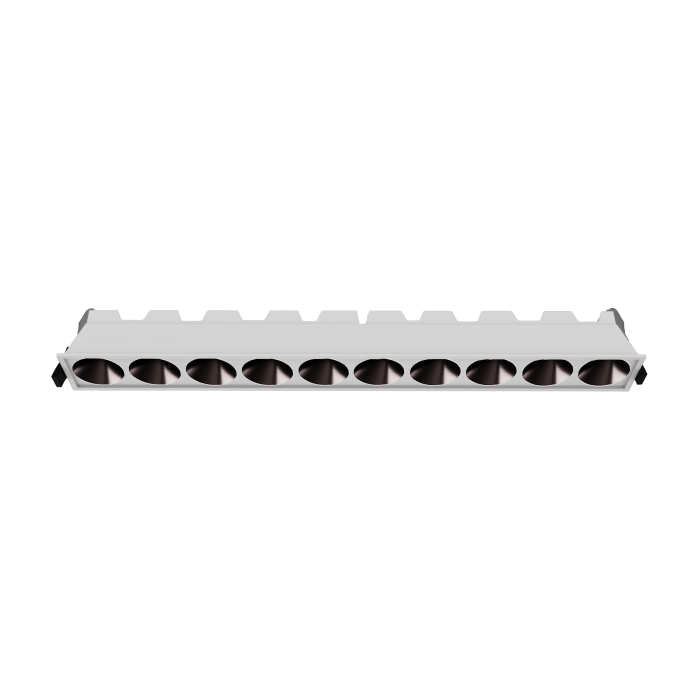

Ten Circular Reflector Modules
Ensures seamless illumination and high visual comfort.
The Aeonic Circle Trim 1×10 delivers expansive illumination with refined optical control. Its ten circular reflectors create a continuous line of soft, evenly diffused light, ideal for sophisticated interiors requiring both performance and visual elegance
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Aeonic Circle 1x10-Trim | 1272 | W280 x H48 mm | 20 | 1935 | 4000 | 92 | 15 | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Aeonic Circle 1x10-Trim | 1272 | W280 x H48 mm | 20 | 1935 | 4000 | 92 | 24 | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Aeonic Circle 1x10-Trim | 1272 | W280 x H48 mm | 20 | 1935 | 4000 | 92 | 38 | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Aeonic Circle 1x10-Trim | 1272 | W280 x H48 mm | 20 | 1935 | 4000 | 92 | 60 | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Aeonic Circle 1x10-Trim | 1272 | W280 x H48 mm | 20 | 1935 | 4000 | 92 | Wallwash | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Aeonic Circle 1x10-Trim | 1272 | W280 x H48 mm | 20 | 1875 | 3000 | 92 | 15 | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Aeonic Circle 1x10-Trim | 1272 | W280 x H48 mm | 20 | 1875 | 3000 | 92 | 24 | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Aeonic Circle 1x10-Trim | 1272 | W280 x H48 mm | 20 | 1875 | 3000 | 92 | 38 | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Aeonic Circle 1x10-Trim | 1272 | W280 x H48 mm | 20 | 1875 | 3000 | 92 | 60 | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Aeonic Circle 1x10-Trim | 1272 | W280 x H48 mm | 20 | 1875 | 3000 | 92 | Wallwash | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Aeonic Circle 1x10-Trim | 1272 | W280 x H48 mm | 20 | 1830 | 2700 | 92 | 15 | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Aeonic Circle 1x10-Trim | 1272 | W280 x H48 mm | 20 | 1830 | 2700 | 92 | 24 | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Aeonic Circle 1x10-Trim | 1272 | W280 x H48 mm | 20 | 1830 | 2700 | 92 | 38 | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Aeonic Circle 1x10-Trim | 1272 | W280 x H48 mm | 20 | 1830 | 2700 | 92 | 60 | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable | Download | Download | Download | Download |
|
|
Aeonic Circle 1x10-Trim | 1272 | W280 x H48 mm | 20 | 1830 | 2700 | 92 | Wallwash | IP20 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable | Download | Download | Download | Download |
