Allura deep M/L

  • Gallery Image

Allura deep M/L

Interior Spaces

The Allura Deep takes glare control to the next level. With an extended recess and a carefully engineered cut-off angle, it offers exceptional visual comfort and precise beam control. Ideal for settings that require focus without distraction, its design ensures only the light — not the source — is visible, achieving an atmosphere of subtle sophistication.

Enquire Now

Specifications

Product Image
Wattage
10W/15W
Lumen
595lm - 2700lm
Beam angle
15° /24°/ 38° /60°
UGR
<16
IP Rating
IP44
check icon
Deep Cut-Off Optics
Superior glare control for visual comfort
check icon
Focused Illumination
Perfect for precision lighting applications
check icon
Clean Design
Conceals light source for a seamless ceiling look
check icon
High Performance
Consistent, controlled beam with minimal spill

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual

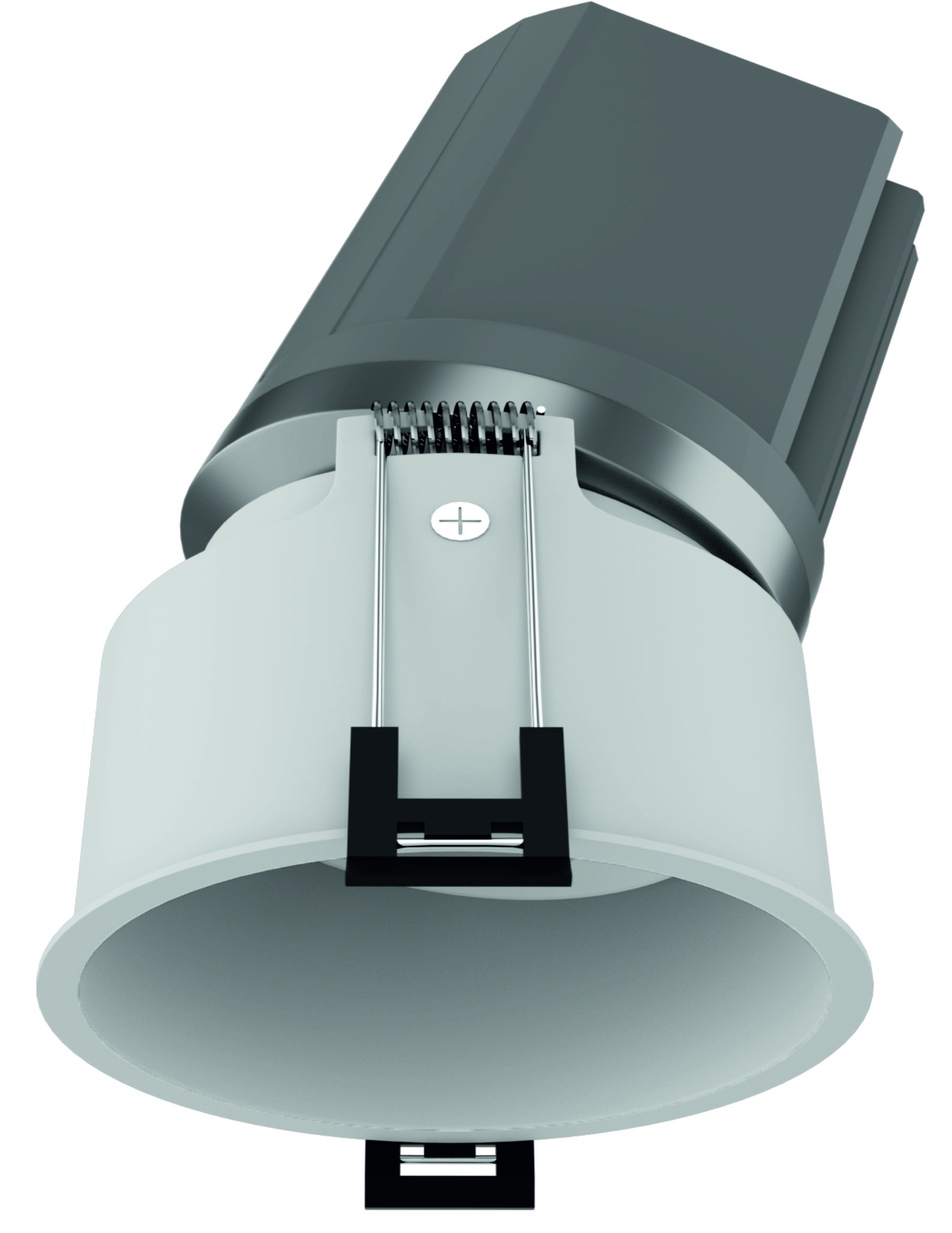

product-img Allura Deep 1051 Dia 75 x H 114mm 15 1285 4000 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1051 Dia 75 x H 114mm 15 1285 4000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1051 Dia 75 x H 114mm 15 1285 4000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1051 Dia 75 x H 114mm 15 1285 4000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1051 Dia 75 x H 114mm 15 1285 4000 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1051 Dia 75 x H 114mm 15 1245 3000 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1051 Dia 75 x H 114mm 15 1245 3000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1051 Dia 75 x H 114mm 15 1245 3000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1051 Dia 75 x H 114mm 15 1245 3000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1051 Dia 75 x H 114mm 15 1245 3000 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1051 Dia 75 x H 114mm 15 1215 2700 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1051 Dia 75 x H 114mm 15 1215 2700 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1051 Dia 75 x H 114mm 15 1215 2700 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1051 Dia 75 x H 114mm 15 1215 2700 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1051 Dia 75 x H 114mm 15 1215 2700 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download

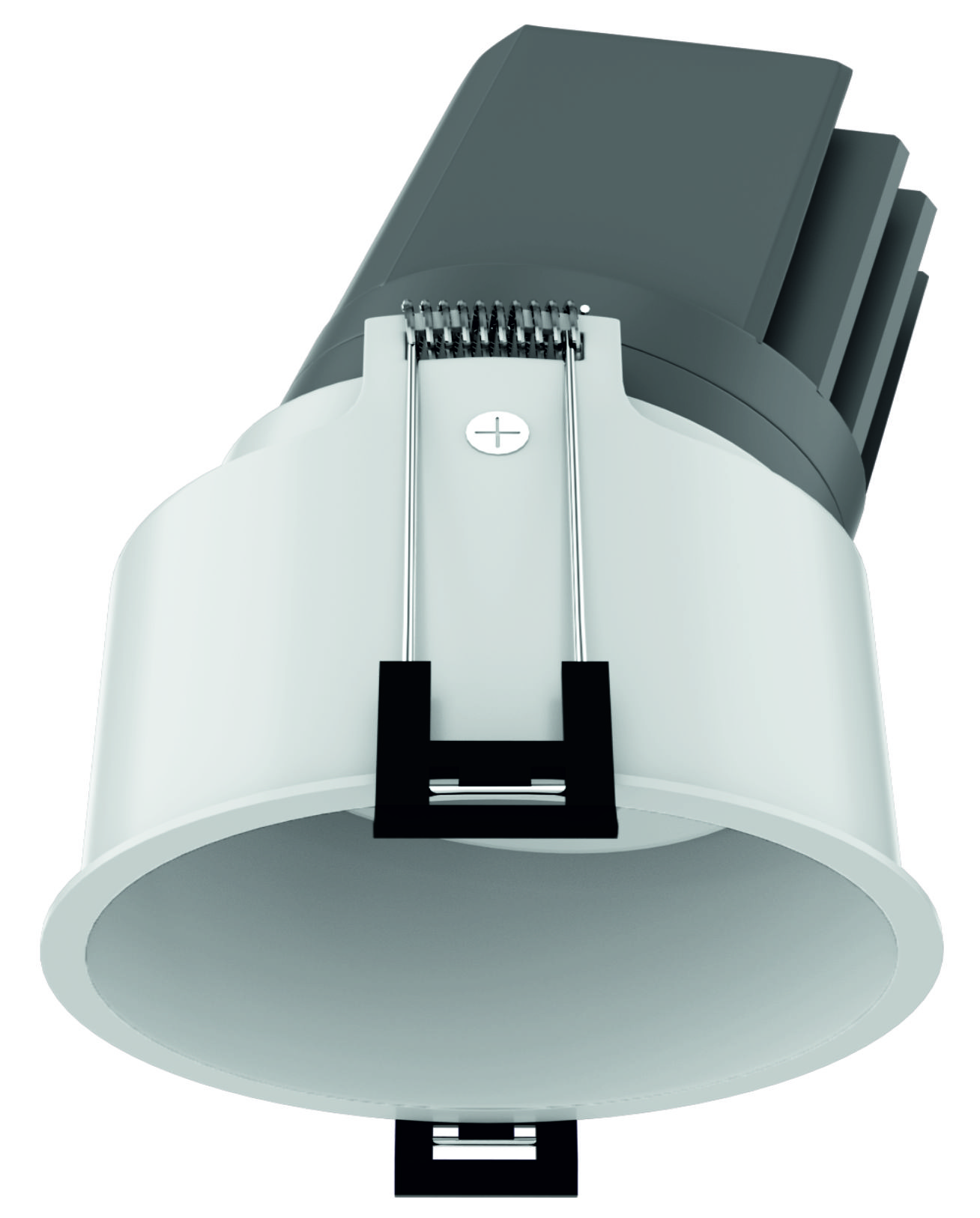

product-img Allura Deep 1050 Dia 75 x H 105mm 10 855 4000 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1050 Dia 75 x H 105mm 10 855 4000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1050 Dia 75 x H 105mm 10 855 4000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1050 Dia 75 x H 105mm 10 855 4000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1050 Dia 75 x H 105mm 10 855 4000 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1050 Dia 75 x H 105mm 10 830 3000 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1050 Dia 75 x H 105mm 10 830 3000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1050 Dia 75 x H 105mm 10 830 3000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1050 Dia 75 x H 105mm 10 830 3000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1050 Dia 75 x H 105mm 10 830 3000 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1050 Dia 75 x H 105mm 10 810 2700 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1050 Dia 75 x H 105mm 10 810 2700 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1050 Dia 75 x H 105mm 10 810 2700 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1050 Dia 75 x H 105mm 10 810 2700 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Deep 1050 Dia 75 x H 105mm 10 810 2700 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
