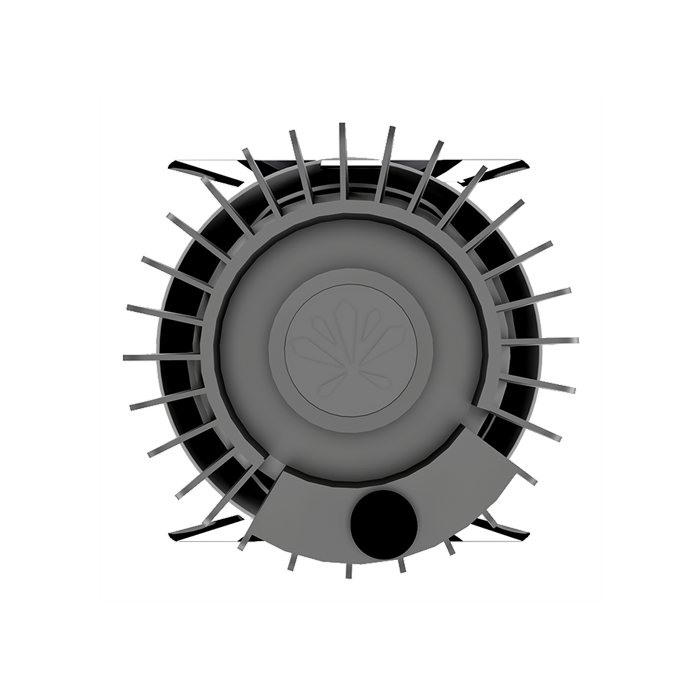

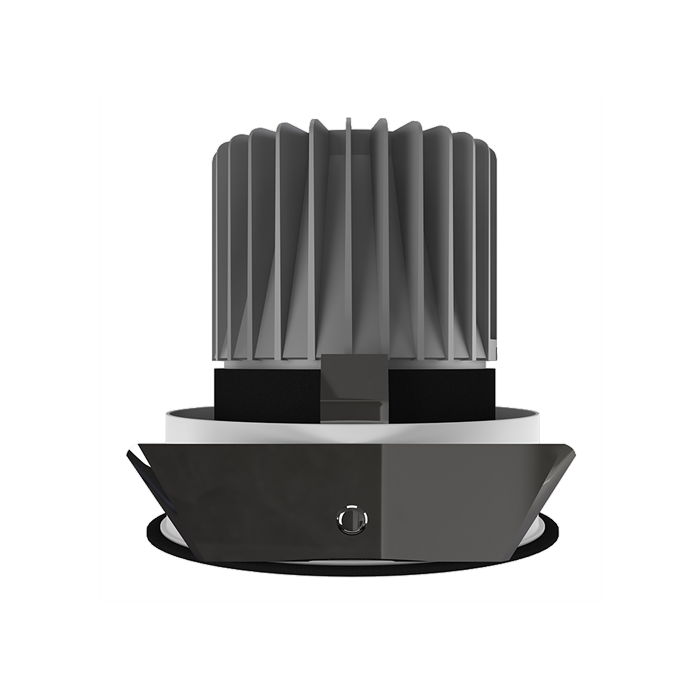

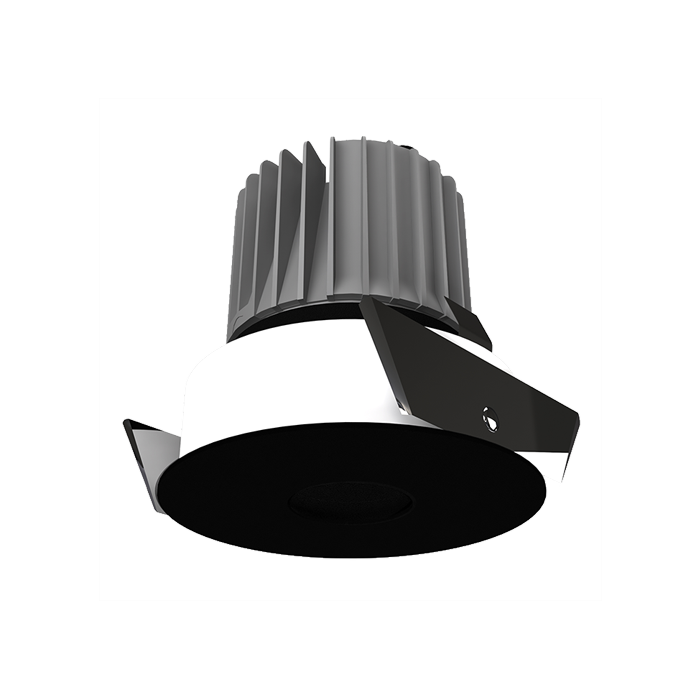

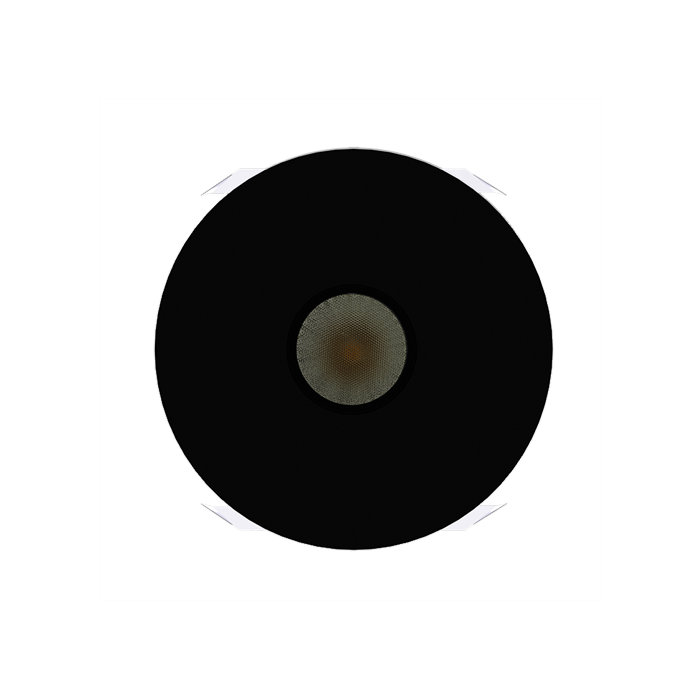

Allura pinhole S/M/L

Interior Spaces

Discreet yet powerful, the Allura Pinhole is designed for targeted illumination in guestrooms and residences. Its deep-recessed design eliminates direct glare while offering precision lighting for reading or relaxing. Compact, elegant, and purpose-driven, it enhances visual comfort and ambience without drawing attention to itself — making it a subtle yet essential part of refined lighting design.

Enquire Now

Specifications

Product Image
Wattage
7W/10W/15W
Lumen
485lm - 1090lm
Beam angle
10°/ 15°/ 24° /38° /60°
UGR
<19
IP Rating
IP44
check icon
Deep-Recessed Optics
Minimizes glare and directs light precisely
check icon
Focused Illumination
Ideal for bedside or accent lighting
check icon
Discreet Design
Sleek and minimal appearance complements interiors.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Allura Pinhole 1009 Dia 85 x H 109mm 15 1090 4000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1009 Dia 85 x H 109mm 15 1090 4000 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1009 Dia 85 x H 109mm 15 1090 4000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1009 Dia 85 x H 109mm 15 1090 4000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1009 Dia 85 x H 109mm 15 1090 4000 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1009 Dia 85 x H 109mm 15 1055 3000 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1009 Dia 85 x H 109mm 15 1055 3000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1009 Dia 85 x H 109mm 15 1055 3000 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1009 Dia 85 x H 109mm 15 1055 3000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1009 Dia 85 x H 109mm 15 1055 3000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1009 Dia 85 x H 109mm 15 1030 2700 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1009 Dia 85 x H 109mm 15 1030 2700 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1009 Dia 85 x H 109mm 15 1030 2700 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1009 Dia 85 x H 109mm 15 1030 2700 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1008 Dia 85 x H 100mm 10 725 4000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1008 Dia 85 x H 100mm 10 725 4000 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1009 Dia 85 x H 109mm 15 1030 2700 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1008 Dia 85 x H 100mm 10 725 4000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1008 Dia 85 x H 100mm 10 725 4000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1008 Dia 85 x H 100mm 10 725 4000 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1008 Dia 85 x H 100mm 10 705 3000 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1008 Dia 85 x H 100mm 10 705 3000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1008 Dia 85 x H 100mm 10 705 2700 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1008 Dia 85 x H 100mm 10 705 3000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1008 Dia 85 x H 100mm 10 705 3000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1008 Dia 85 x H 100mm 10 685 2700 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1008 Dia 85 x H 100mm 10 685 2700 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1008 Dia 85 x H 100mm 10 685 2700 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1008 Dia 85 x H 100mm 10 685 2700 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1008 Dia 85 x H 100mm 10 685 2700 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 10 725 4000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 10 725 4000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 10 725 4000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 10 705 3000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 10 705 3000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 10 705 3000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 10 685 2700 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 10 685 2700 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 7 515 4000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 7 515 4000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 10 685 2700 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 7 515 4000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 7 500 3000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 7 500 3000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 7 500 3000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 7 485 2700 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 7 485 2700 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Pinhole 1007 Dia 70 x H 84mm 7 485 2700 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
