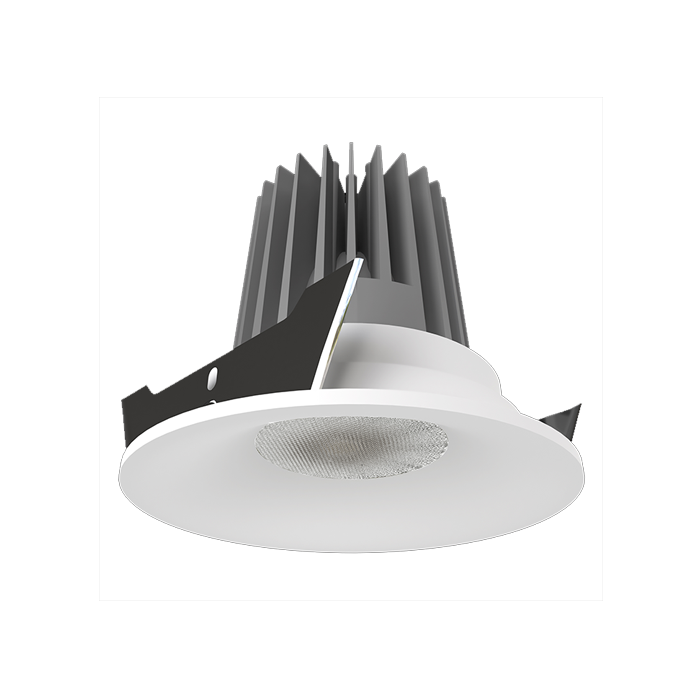

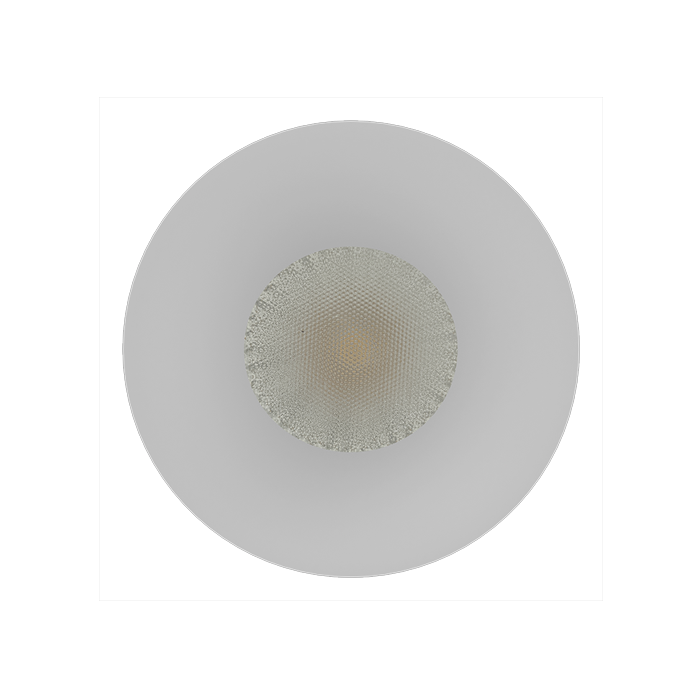

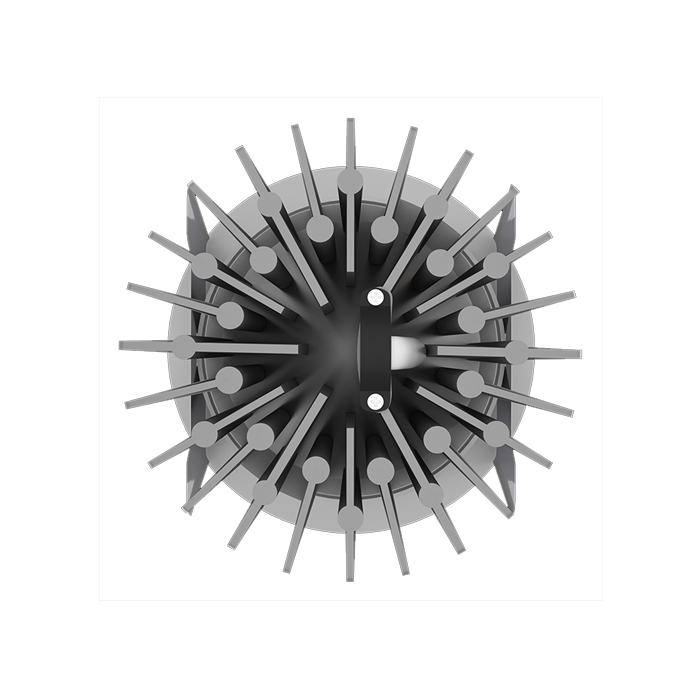

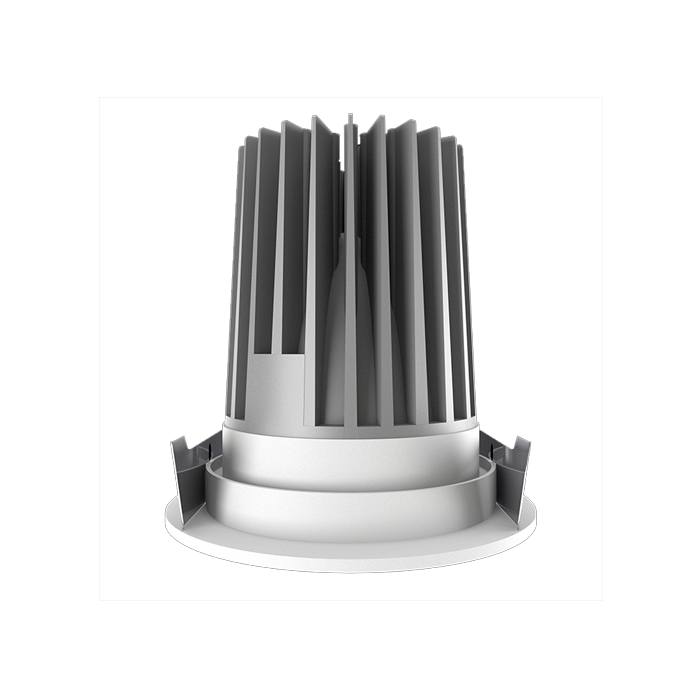

Allura taper S/M/L

Interior Spaces

Combining artistry and engineering, the Allura Taper features a uniquely shaped reflector that diffuses light gently across surfaces. This soft, glare-free output enhances comfort while maintaining brightness, making it ideal for sophisticated interiors. With its sculpted taper profile, it delivers both visual harmony and exceptional performance — lighting that complements elegance.

Enquire Now

Specifications

Product Image
Wattage
7W/10W/15W
Lumen
585lm - 1320lm
Beam angle
10°/ 15°/ 24° /38° /60°
UGR
<19
IP Rating
IP44
check icon
Tapered Reflector
Smooth, diffused light output for refined environments
check icon
Glare Reduction
Engineered to enhance visual comfort
check icon
Elegant Design
Adds architectural sophistication to any ceiling
check icon
Balanced Performance
High efficiency with soft illumination

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Allura Taper 1039 Dia 85 x H 106mm 15 1320 4000 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1039 Dia 85 x H 106mm 15 1320 4000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1039 Dia 85 x H 106mm 15 1320 4000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1039 Dia 85 x H 106mm 15 1320 4000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1039 Dia 85 x H 106mm 15 1320 4000 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1039 Dia 85 x H 106mm 15 1280 3000 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1039 Dia 85 x H 106mm 15 1280 3000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1039 Dia 85 x H 106mm 15 1280 3000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1039 Dia 85 x H 106mm 15 1280 3000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1039 Dia 85 x H 106mm 15 1280 3000 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1039 Dia 85 x H 106mm 15 1250 2700 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1039 Dia 85 x H 106mm 15 1250 2700 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1039 Dia 85 x H 106mm 15 1250 2700 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1039 Dia 85 x H 106mm 15 1250 2700 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1039 Dia 85 x H 106mm 15 1250 2700 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1038 Dia 85 x H 90mm 10 880 4000 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1038 Dia 85 x H 90mm 10 880 4000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1038 Dia 85 x H 90mm 10 880 4000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1038 Dia 85 x H 90mm 10 880 4000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1038 Dia 85 x H 90mm 10 880 4000 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1038 Dia 85 x H 90mm 10 855 3000 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1038 Dia 85 x H 90mm 10 855 3000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1038 Dia 85 x H 90mm 10 855 3000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1038 Dia 85 x H 90mm 10 855 3000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1038 Dia 85 x H 90mm 10 855 3000 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1038 Dia 85 x H 90mm 10 835 2700 95 60 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1038 Dia 85 x H 90mm 10 835 2700 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1038 Dia 85 x H 90mm 10 835 2700 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1038 Dia 85 x H 90mm 10 835 2700 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1038 Dia 85 x H 90mm 10 835 2700 95 10 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 10 880 4000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 10 880 4000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 10 880 4000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 10 855 3000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 10 855 3000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 10 855 3000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 10 835 2700 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 10 835 2700 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 10 835 2700 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 7 620 4000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 7 620 4000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 7 620 4000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 7 600 3000 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 7 600 3000 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 7 600 3000 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 7 585 2700 95 38 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 7 585 2700 95 24 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
product-img Allura Taper 1037 Dia 70 x H 82mm 7 585 2700 95 15 IP44 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable Download Download Download Download
