Flexum-Side-bend-M-IP65-(12x20)

  • Gallery Image

Flexum-Side-bend-M-IP65-(12x20)

Interior Spaces

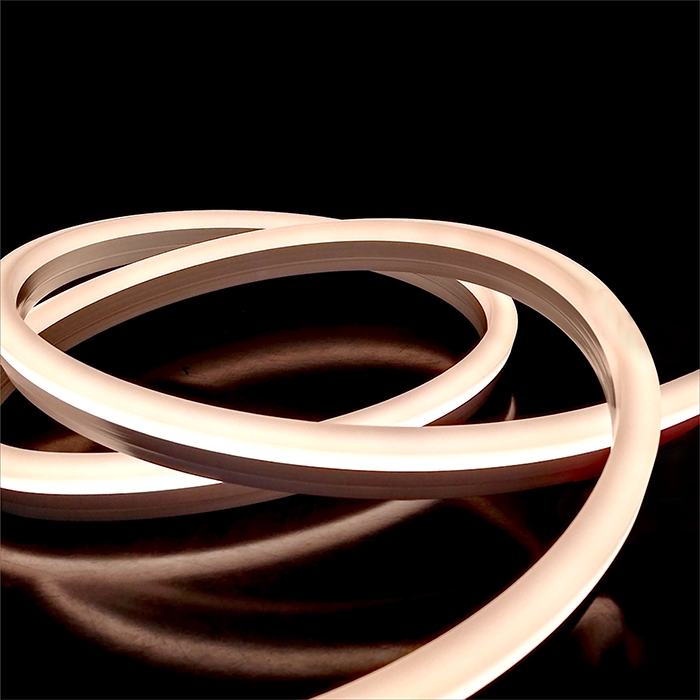

Flexum Side Bend M is a flexible linear LED designed for installations needing bends along the side axis, allowing designers to create dramatic curves in signage, facades, or accent outlines in wet locations. The exclusive 30-meter length option enables grand, uninterrupted runs.

Enquire Now

Specifications

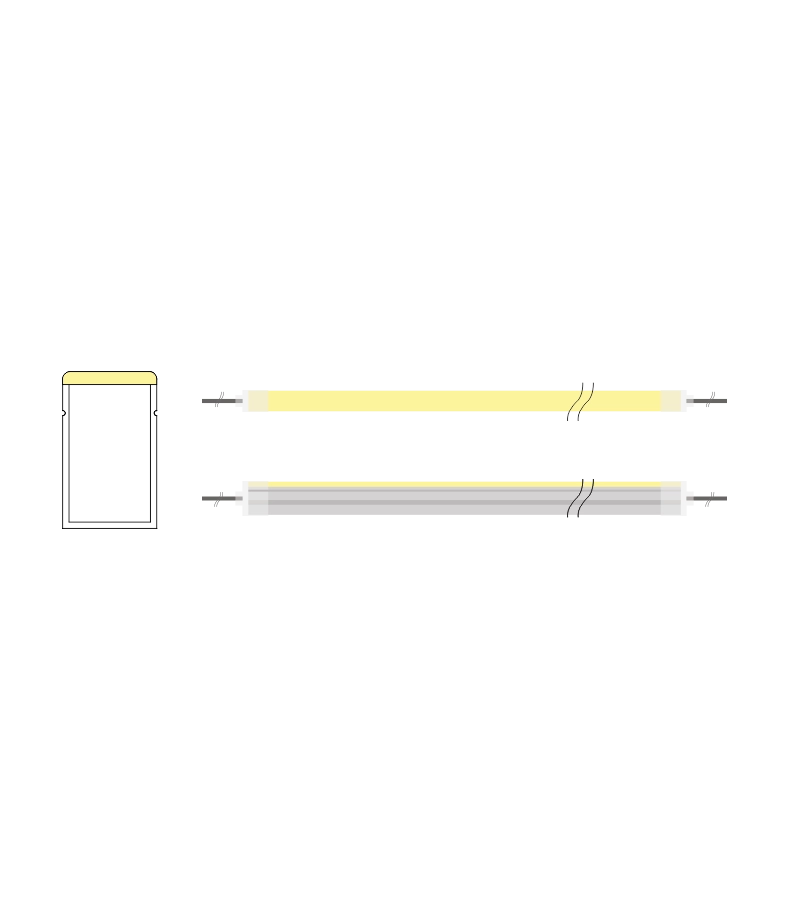

Product Image
Wattage
6 W/m / 10W/m / 12 W/m
Lumen
425 lm/m - 865 lm/m
Beam Angle
N/A
Cut out
N/A
IP rating
IP 65
check icon
True Design Freedom
Capable of dramatic, fluid bends—enabling custom curves for signage, illuminated outlines, and organic architectural accents.
check icon
Rugged Outdoor Reliability
Boasts IP65 protection and exclusive 30-meter single length for long, weatherproof runs on facades, landscapes, and exteriors.
check icon
Dazzling Dynamic Scenes
Supports RGBW and tunable whites, letting you personalize exterior identities, animate pathways, or highlight brand features at any hour.
check icon
Easy, Versatile Deployment
Chain and clamp mounting, remote driver, and flexible cable entry adapt effortlessly to complex project requirements—saving labor and accelerating rollout.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 6 425 2700 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 6 435 3000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 6 450 4000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 12 845 2700 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 12 865 3000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 12 895 4000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 10 720 Tunable White2700 to 6500 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 10 515 RGB + 2700 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 10 515 RGB + 3000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 10 610 RGB + 3000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 10 790 Tunable White2700 to 6500 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 10 600 RGB + 2700 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 12 895 4000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 12 865 3000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 12 845 2700 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 6 450 4000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 6 435 3000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Side Bend- IP65 2174 Width 12mm x Height 20mm x Length 5000mm 6 425 2700 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
