Flexum-Top-bend-L-IP65-(30x20)

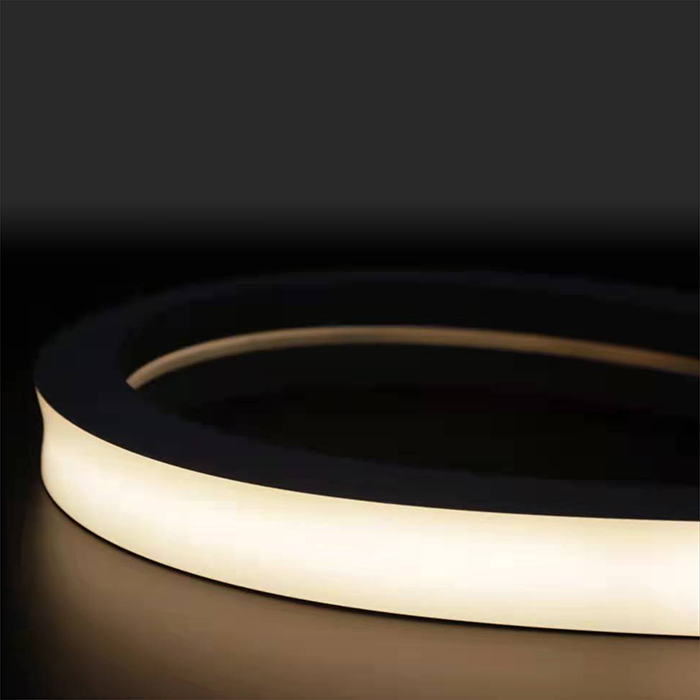

  • Gallery Image

Flexum-Top-bend-L-IP65-(30x20)

Interior Spaces

Top Bend Flexum offers vertical axis flexibility, preferred for outlining structures, coves, or pathways with smooth bends and even illumination. Extended size range ensures performance from small details to large architectural runs.

Enquire Now

Specifications

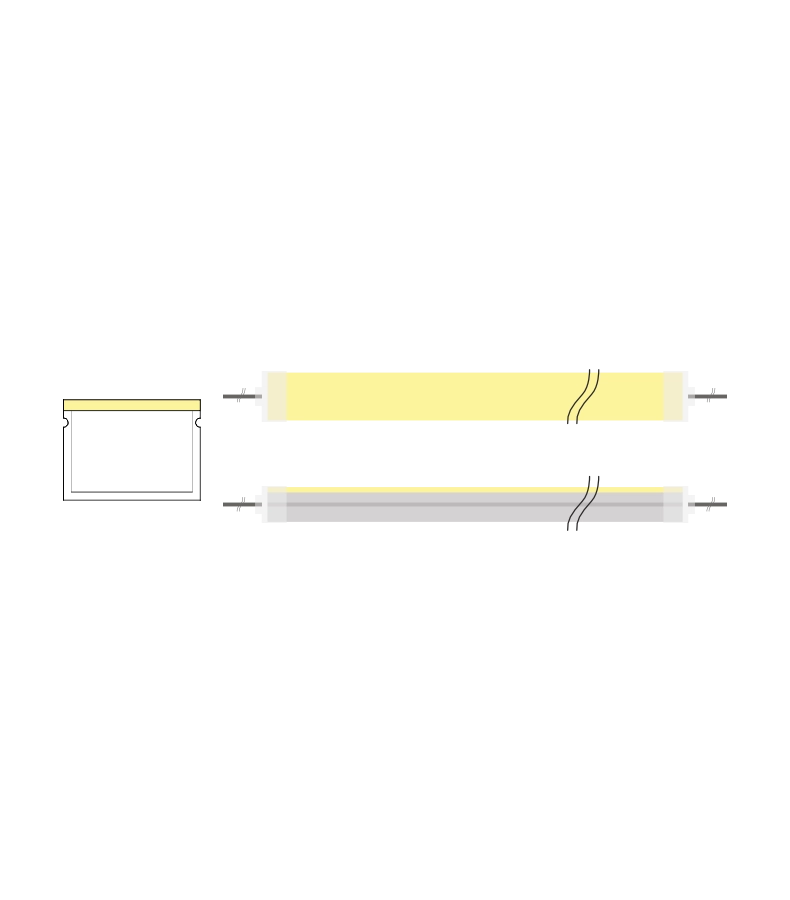

Product Image
Wattage
12 W/m / 20 W/m / 24 W/m
Lumen
930 lm/m - 1965 lm/m
Beam Angle
N/A
Cut out
N/A
IP rating
IP 65
check icon
Smooth Vertical Outlines
Advanced top-bend flexibility enables flawless curves along rooftops, steps, or cove edges, making architectural forms glow with sophistication.
check icon
All-Weather Endurance
IP65 construction and robust 30m lengths thrive in demanding outdoor zones, from skyline accents to pool perimeters.
check icon
Uncompromising Quality
High CRI LEDs and MacAdam step consistency guarantee pure colors and smooth dimming, delivering a luxurious yet economic experience over decades.
check icon
Designer Assembly
Choice of clamp and chain mounts, flexible cable entry, remote driver—every component specified for easy, secure installation at any scale.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 12 930 2700 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 12 955 3000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 12 985 4000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 24 1860 2700 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 24 1905 3000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 24 1965 4000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 20 1030 RGB + 2700 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 20 1030 RGB + 3000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 20 1030 RGB + 2700 Digital 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 20 1030 RGB + 3000 Digital 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 20 1220 RGB + 3000 Digital 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 20 1200 RGB + 2700 Digital 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 20 1220 RGB + 3000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 20 1200 RGB + 2700 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 24 1965 4000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 24 1905 3000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 24 1860 2700 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 12 955 3000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 12 985 4000 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Flexum Top Bend- IP65 2187 Width 30mm x Height 20mm x Length 5000mm 12 930 2700 92 120 IP65 NA Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
