Zero-Glare Optical System
Equipped with a high-transmission screen lens and refined reflector design to provide glare-free, comfortable illumination ideal for hospitality and residential spaces
The Hyeya Flat is a premium recessed downlight engineered for shallow ceiling spaces without compromising on performance or aesthetics. With a sleek, minimalist profile and high-efficiency LED array, Hyeya Flat provides uniform, low-glare illumination ideal for modern interiors. Available in multiple sizes and lumen outputs, it offers flexibility for diverse architectural applications — from hospitality and retail environments to premium residential settings
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

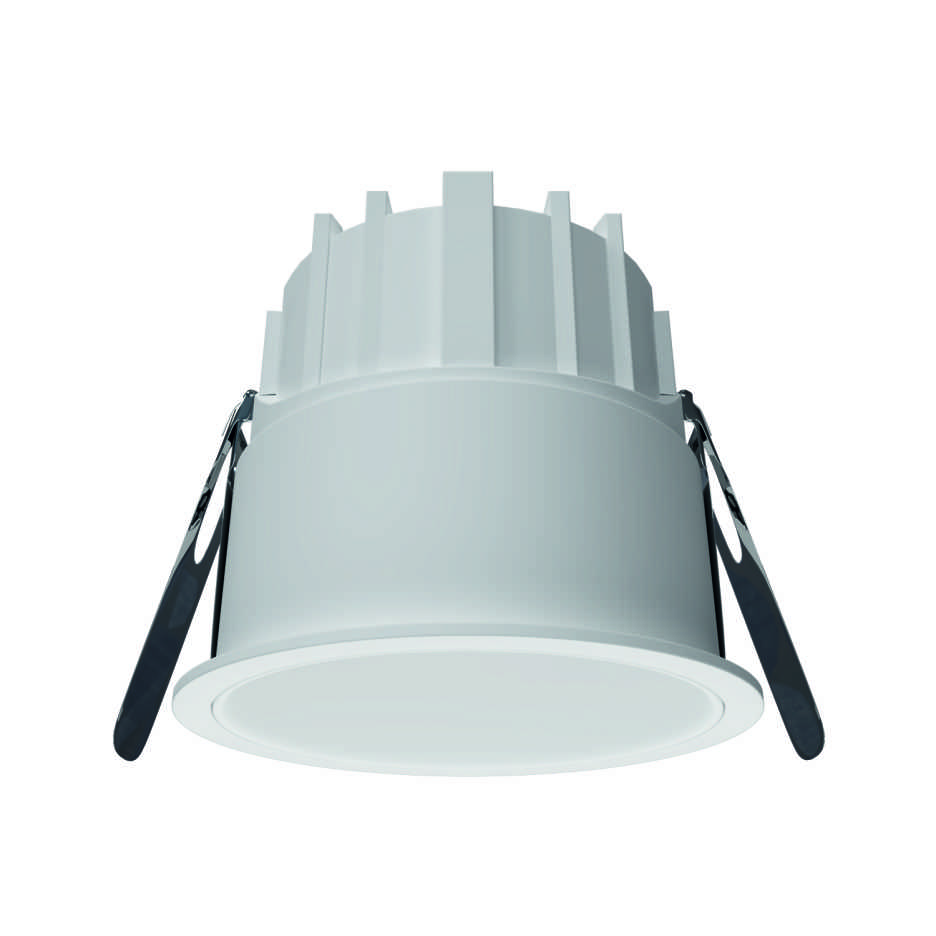

Hyeya Flat | 1337 | Dia 62 x H 57mm | 8 | 650 | 2700 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1337 | Dia 62 x H 57mm | 8 | 650 | 2700 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1337 | Dia 62 x H 57mm | 8 | 650 | 2700 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1337 | Dia 62 x H 57mm | 8 | 650 | 2700 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1337 | Dia 62 x H 57mm | 8 | 670 | 3000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1337 | Dia 62 x H 57mm | 8 | 670 | 3000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1337 | Dia 62 x H 57mm | 8 | 670 | 3000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1337 | Dia 62 x H 57mm | 8 | 670 | 3000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1337 | Dia 62 x H 57mm | 8 | 720 | 4000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1337 | Dia 62 x H 57mm | 8 | 720 | 4000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1337 | Dia 62 x H 57mm | 8 | 720 | 4000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1337 | Dia 62 x H 57mm | 8 | 720 | 4000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|

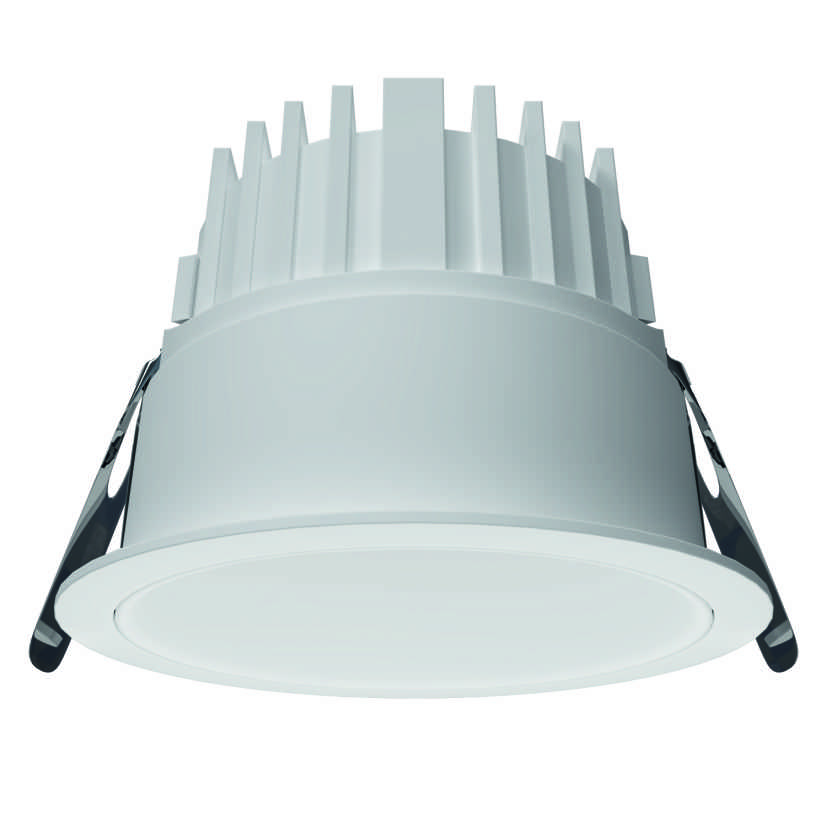

Hyeya Flat | 1338 | Dia 84 x H 61mm | 12 | 745 | 2700 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1338 | Dia 84 x H 61mm | 12 | 745 | 2700 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1338 | Dia 84 x H 61mm | 12 | 745 | 2700 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1338 | Dia 84 x H 61mm | 12 | 745 | 2700 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1338 | Dia 84 x H 61mm | 12 | 760 | 3000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1338 | Dia 84 x H 61mm | 12 | 760 | 3000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1338 | Dia 84 x H 61mm | 12 | 760 | 3000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1338 | Dia 84 x H 61mm | 12 | 760 | 3000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1338 | Dia 84 x H 61mm | 12 | 785 | 4000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1338 | Dia 84 x H 61mm | 12 | 785 | 4000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1338 | Dia 84 x H 61mm | 12 | 785 | 4000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1338 | Dia 84 x H 61mm | 12 | 785 | 4000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|

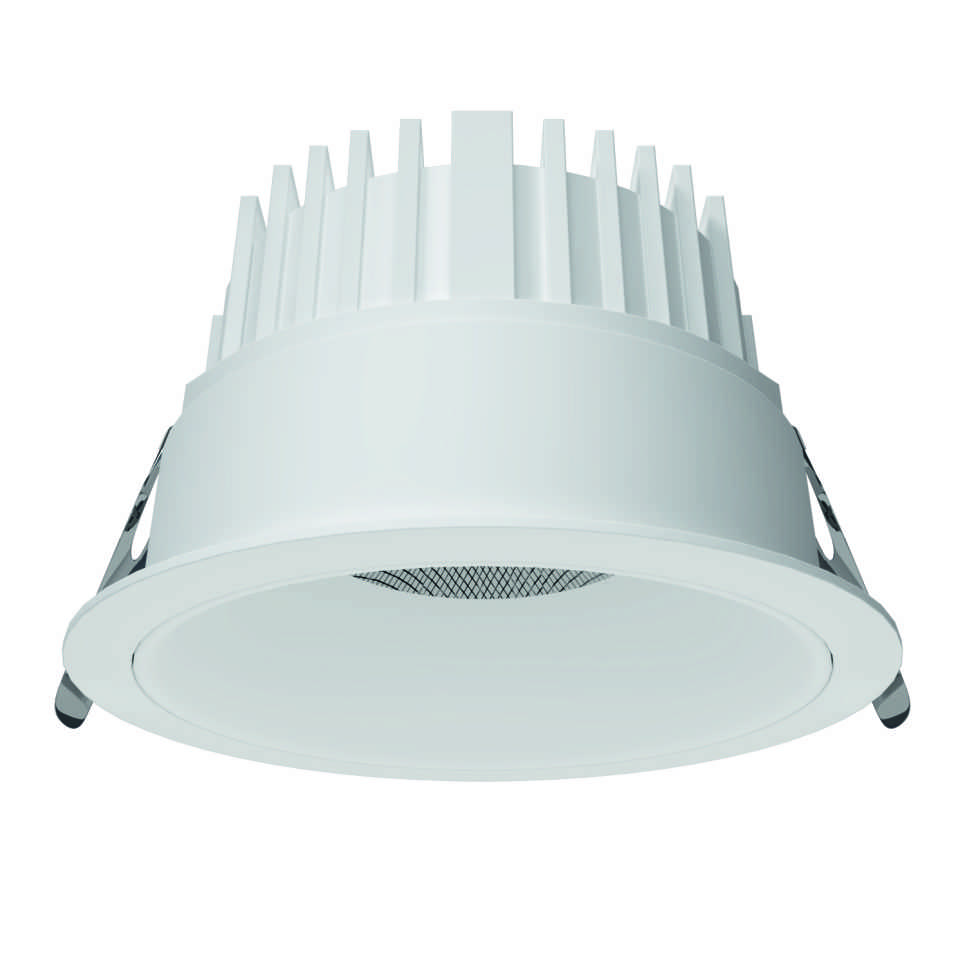

Hyeya Flat | 1339 | Dia 105 x H 71mm | 18 | 1105 | 2700 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1339 | Dia 105 x H 71mm | 18 | 1105 | 2700 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1339 | Dia 105 x H 71mm | 18 | 1105 | 2700 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1339 | Dia 105 x H 71mm | 18 | 1105 | 2700 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1339 | Dia 105 x H 71mm | 18 | 1135 | 3000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1339 | Dia 105 x H 71mm | 18 | 1135 | 3000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1339 | Dia 105 x H 71mm | 18 | 1135 | 3000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1339 | Dia 105 x H 71mm | 18 | 1135 | 3000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1339 | Dia 105 x H 71mm | 18 | 1165 | 4000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1339 | Dia 105 x H 71mm | 18 | 1165 | 4000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1339 | Dia 105 x H 71mm | 18 | 1165 | 4000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1339 | Dia 105 x H 71mm | 18 | 1165 | 4000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|

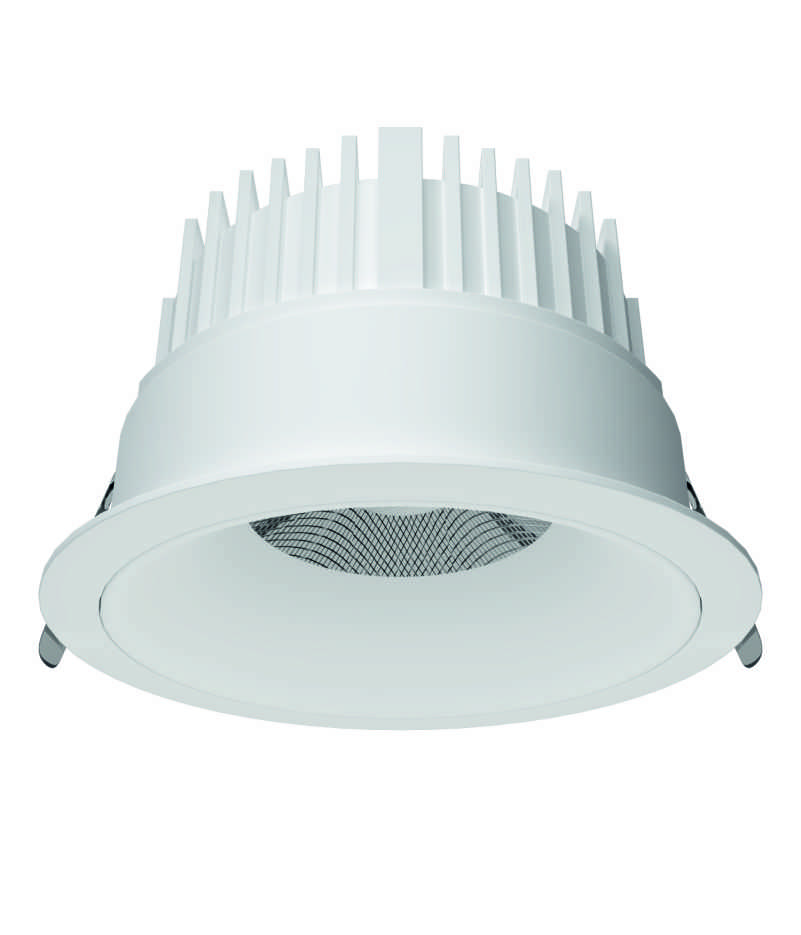

Hyeya Flat | 1340 | Dia 130 x H 71mm | 22 | 1475 | 2700 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1340 | Dia 130 x H 71mm | 22 | 1475 | 2700 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1340 | Dia 130 x H 71mm | 22 | 1475 | 2700 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1340 | Dia 130 x H 71mm | 22 | 1475 | 2700 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1340 | Dia 130 x H 71mm | 22 | 1515 | 3000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1340 | Dia 130 x H 71mm | 22 | 1515 | 3000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1340 | Dia 130 x H 71mm | 22 | 1515 | 3000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1340 | Dia 130 x H 71mm | 22 | 1515 | 3000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1340 | Dia 130 x H 71mm | 22 | 1560 | 4000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1340 | Dia 130 x H 71mm | 22 | 1560 | 4000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1340 | Dia 130 x H 71mm | 22 | 1560 | 4000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1340 | Dia 130 x H 71mm | 22 | 1560 | 4000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|

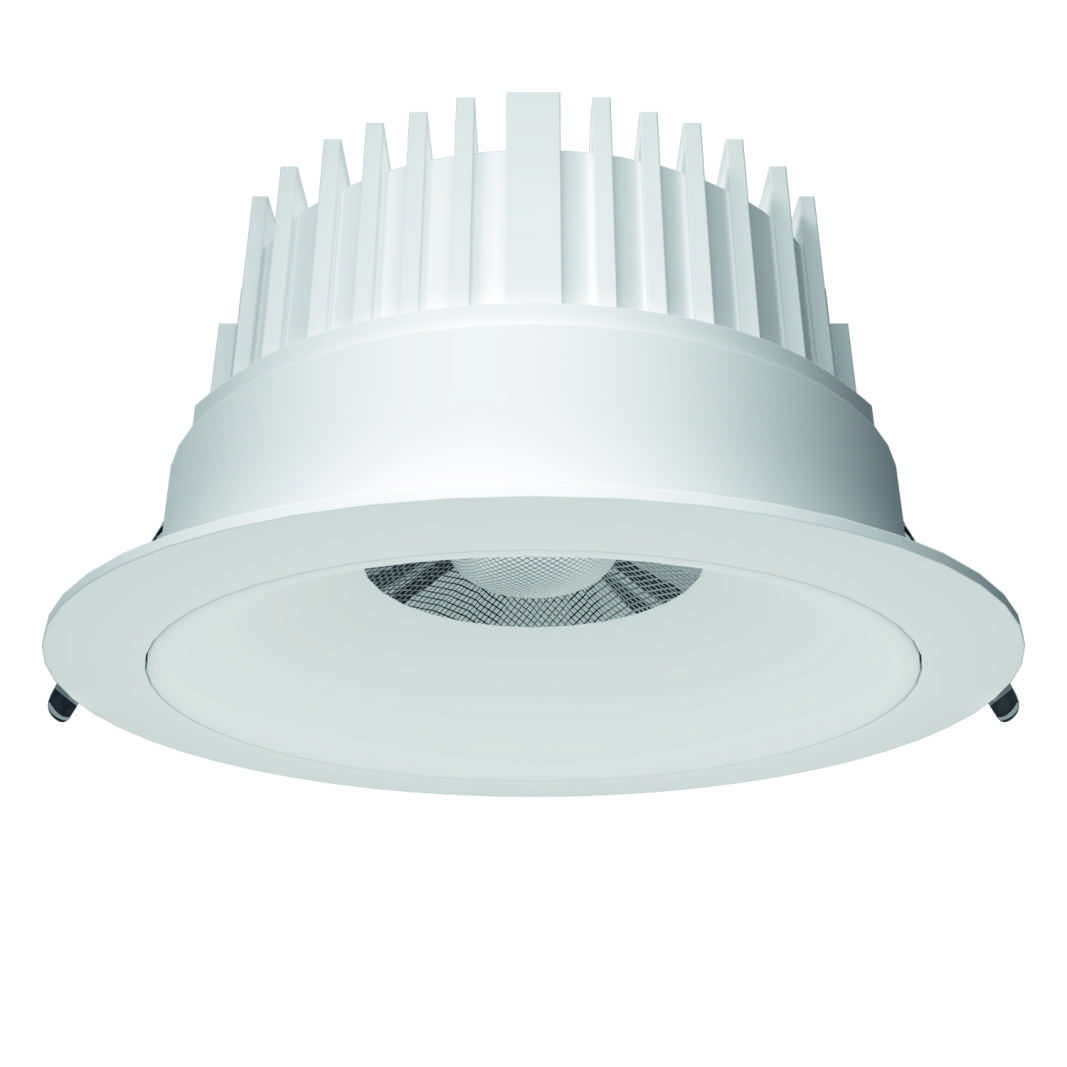

Hyeya Flat | 1341 | Dia 170 x H 78mm | 22 | 1560 | 4000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | - | Download | Download | Download |
|
|
Hyeya Flat | 1341 | Dia 170 x H 78mm | 35 | 2205 | 2700 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1341 | Dia 170 x H 78mm | 35 | 2205 | 2700 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1341 | Dia 170 x H 78mm | 35 | 2205 | 2700 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1341 | Dia 170 x H 78mm | 35 | 2205 | 2700 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1341 | Dia 170 x H 78mm | 35 | 2260 | 3000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1341 | Dia 170 x H 78mm | 35 | 2260 | 3000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1341 | Dia 170 x H 78mm | 35 | 2260 | 3000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1341 | Dia 170 x H 78mm | 35 | 2260 | 3000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1341 | Dia 170 x H 78mm | 35 | 2330 | 4000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1341 | Dia 170 x H 78mm | 35 | 2330 | 4000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1341 | Dia 170 x H 78mm | 35 | 2330 | 4000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Flat | 1341 | Dia 170 x H 78mm | 35 | 2330 | 4000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
