Elegant Surface-Mounted Design
Streamlined cylindrical housing offers a minimalist, architectural aesthetic ideal for exposed ceilings or areas without recessed space

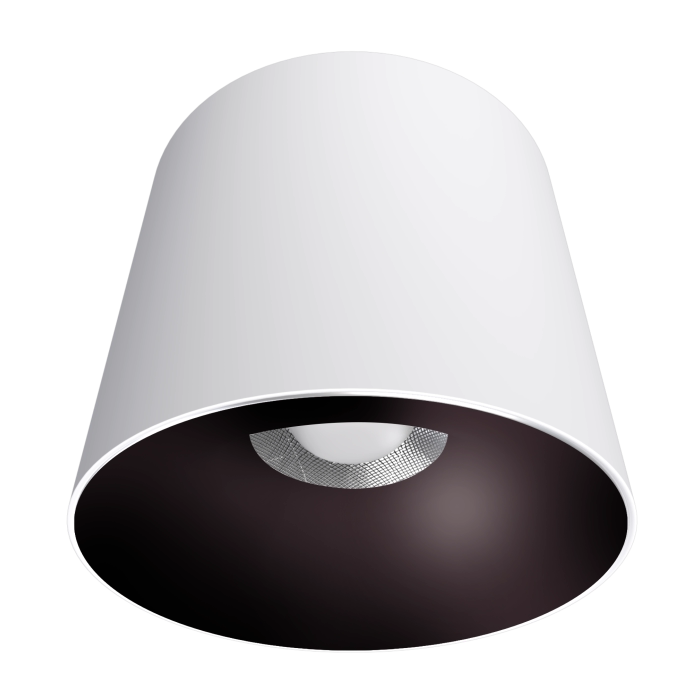

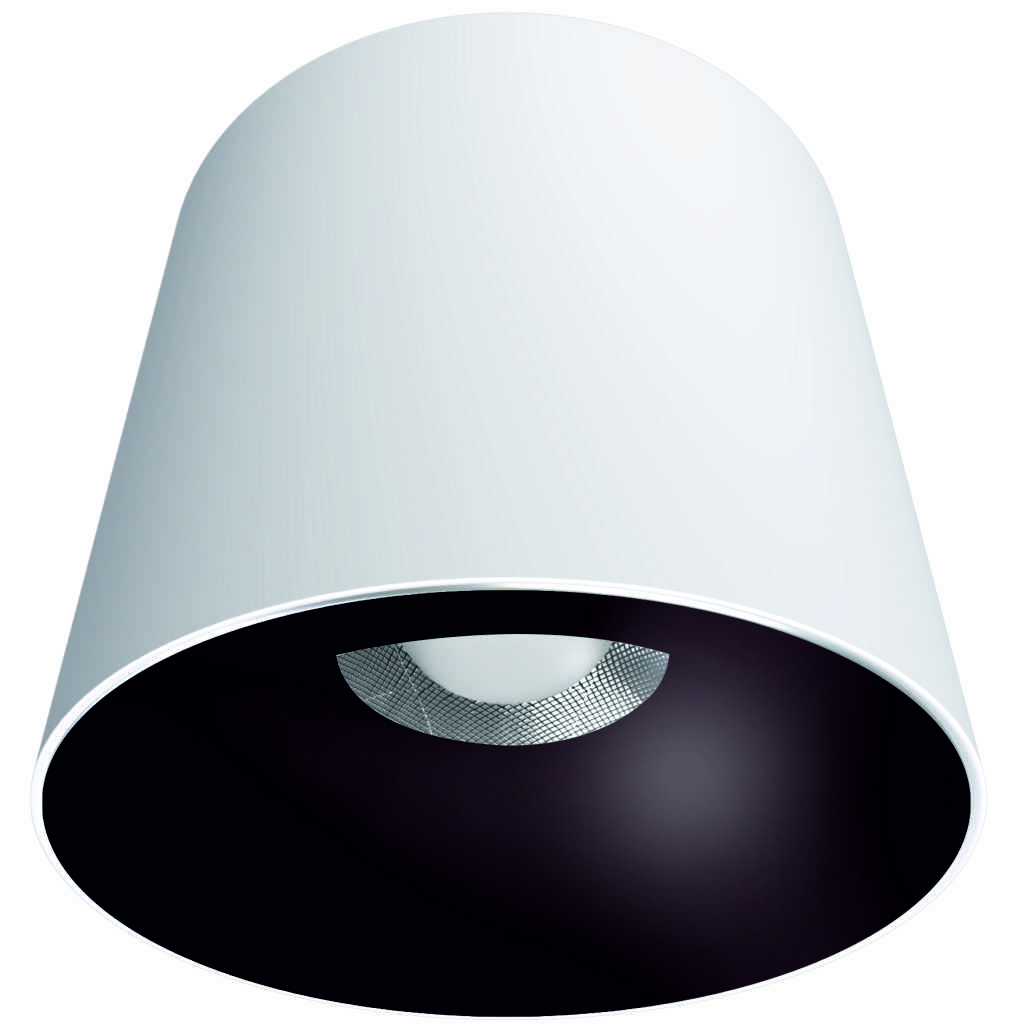

The Hyeya Surface Round is a sophisticated surface-mounted luminaire designed to deliver high-quality illumination where recessed mounting isn’t possible. Combining refined aesthetics with superior optical control, it offers a clean, contemporary form factor suited to modern hospitality, retail, and residential interiors.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Hyeya Surface Round | 1366 | Dia 55 x H 75mm | 8 | 650 | 2700 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1366 | Dia 55 x H 75mm | 8 | 650 | 2700 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1366 | Dia 55 x H 75mm | 8 | 650 | 2700 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1366 | Dia 55 x H 75mm | 8 | 650 | 2700 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1366 | Dia 55 x H 75mm | 8 | 670 | 3000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1366 | Dia 55 x H 75mm | 8 | 670 | 3000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1366 | Dia 55 x H 75mm | 8 | 670 | 3000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1366 | Dia 55 x H 75mm | 8 | 670 | 3000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1366 | Dia 55 x H 75mm | 8 | 720 | 4000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1366 | Dia 55 x H 75mm | 8 | 720 | 4000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1366 | Dia 55 x H 75mm | 8 | 720 | 4000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1366 | Dia 55 x H 75mm | 8 | 720 | 4000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1367 | Dia 75 x H 83mm | 12 | 745 | 2700 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1367 | Dia 75 x H 83mm | 12 | 745 | 2700 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1367 | Dia 75 x H 83mm | 12 | 745 | 2700 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1367 | Dia 75 x H 83mm | 12 | 745 | 2700 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1367 | Dia 75 x H 83mm | 12 | 760 | 3000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1367 | Dia 75 x H 83mm | 12 | 760 | 3000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1367 | Dia 75 x H 83mm | 12 | 760 | 3000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1367 | Dia 75 x H 83mm | 12 | 760 | 3000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1367 | Dia 75 x H 83mm | 12 | 785 | 4000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1367 | Dia 75 x H 83mm | 12 | 785 | 4000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1367 | Dia 75 x H 83mm | 12 | 785 | 4000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1367 | Dia 75 x H 83mm | 12 | 785 | 4000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1368 | Dia 75 x H 83mm | 18 | 1105 | 2700 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1368 | Dia 75 x H 83mm | 18 | 1105 | 2700 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1368 | Dia 75 x H 83mm | 18 | 1105 | 2700 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1368 | Dia 75 x H 83mm | 18 | 1105 | 2700 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1368 | Dia 75 x H 83mm | 18 | 1135 | 3000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1368 | Dia 75 x H 83mm | 18 | 1135 | 3000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1368 | Dia 75 x H 83mm | 18 | 1135 | 3000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1368 | Dia 75 x H 83mm | 18 | 1135 | 3000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1368 | Dia 75 x H 83mm | 18 | 1165 | 4000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1368 | Dia 75 x H 83mm | 18 | 1165 | 4000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1368 | Dia 75 x H 83mm | 18 | 1165 | 4000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1368 | Dia 75 x H 83mm | 18 | 1165 | 4000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1369 | Dia 115 x H 110mm | 22 | 1475 | 2700 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1369 | Dia 115 x H 110mm | 22 | 1475 | 2700 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1369 | Dia 115 x H 110mm | 22 | 1475 | 2700 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1369 | Dia 115 x H 110mm | 22 | 1475 | 2700 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1369 | Dia 115 x H 110mm | 22 | 1515 | 3000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1369 | Dia 115 x H 110mm | 22 | 1515 | 3000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1369 | Dia 115 x H 110mm | 22 | 1515 | 3000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1369 | Dia 115 x H 110mm | 22 | 1515 | 3000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1369 | Dia 115 x H 110mm | 22 | 1560 | 4000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1369 | Dia 115 x H 110mm | 22 | 1560 | 4000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1369 | Dia 115 x H 110mm | 22 | 1560 | 4000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1369 | Dia 115 x H 110mm | 22 | 1560 | 4000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1374 | Dia 142 x H 130mm | 35 | 2205 | 2700 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1374 | Dia 142 x H 130mm | 35 | 2205 | 2700 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1374 | Dia 142 x H 130mm | 35 | 2205 | 2700 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1374 | Dia 142 x H 130mm | 35 | 2205 | 2700 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1374 | Dia 142 x H 130mm | 35 | 2260 | 3000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1374 | Dia 142 x H 130mm | 35 | 2260 | 3000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1374 | Dia 142 x H 130mm | 35 | 2260 | 3000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1374 | Dia 142 x H 130mm | 35 | 2260 | 3000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1374 | Dia 142 x H 130mm | 35 | 2330 | 4000 | 95 | 15 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1374 | Dia 142 x H 130mm | 35 | 2330 | 4000 | 95 | 24 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1374 | Dia 142 x H 130mm | 35 | 2330 | 4000 | 95 | 36 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
|
|
Hyeya Surface Round | 1374 | Dia 142 x H 130mm | 35 | 2330 | 4000 | 95 | 60 | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tuneable/RF Tuneable | Download | Download | Download | Download |
