High Power & Efficiency
Robust 12W output at 48V ensures bright, effective illumination for focused applications.

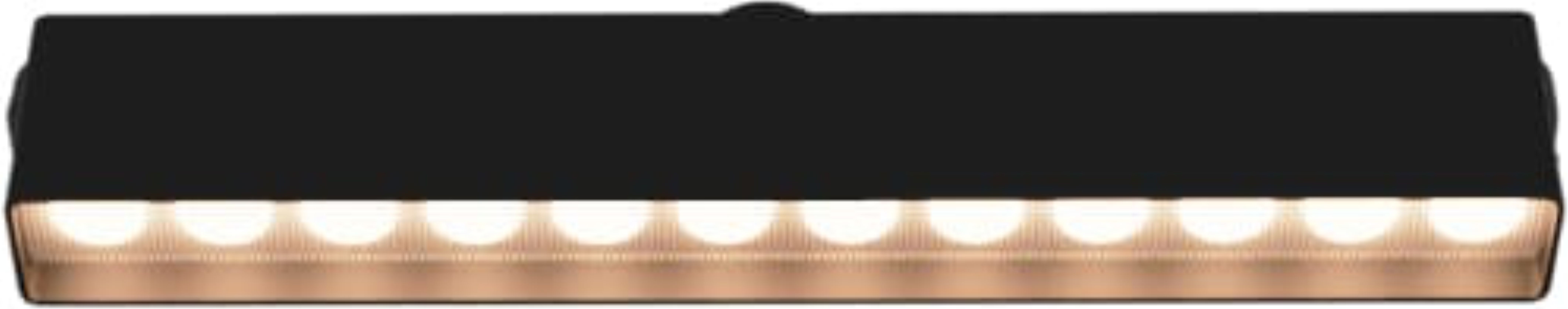

Discreet - Grid is a fixed linear module designed to deliver a uniform, powerful wash of light for general and display applications within the 48V track system. It utilizes multiple focused LED points over its 230mm length to create a high-impact, continuous line of accent lighting. Ideal for areas where the lighting focus is permanent, such as uniform shelf illumination or continuous wall washing, the Grid 230 provides high-CRI quality and multiple beam angle options
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Joule Discreet Grid | 2235 | Width 26mm x Length 230mm | 12 | 1067 | 4000 | 92 | 38 | IP20 | NA | Non Dim | Download | Download | Download | Download |
|
|
Joule Discreet Grid | 2235 | Width 26mm x Length 230mm | 12 | 1021 | 3000 | 92 | 24 | IP20 | NA | Non Dim | Download | Download | Download | Download |
|
|
Joule Discreet Grid | 2235 | Width 26mm x Length 230mm | 12 | 997 | 2700 | 92 | 15 | IP20 | NA | Non Dim | Download | Download | Download | Download |
|
|
Joule Discreet Grid | 2235 | Width 26mm x Length 230mm | 12 | 1021 | 3000 | 92 | 24 | IP20 | NA | Non Dim | Download | Download | Download | Download |
|
|
Joule Discreet Grid | 2235 | Width 26mm x Length 230mm | 12 | 1067 | 4000 | 92 | 38 | IP20 | NA | Non Dim | Download | Download | Download | Download |
|
|
Joule Discreet Grid | 2235 | Width 26mm x Length 230mm | 12 | 997 | 2700 | 92 | 15 | IP20 | NA | Non Dim | Download | Download | Download | Download |
|
|
Joule Discreet Grid | 2235 | Width 26mm x Length 230mm | 12 | 1067 | 4000 | 92 | 38 | IP20 | NA | Non Dim | Download | Download | Download | Download |
|
|
Joule Discreet Grid | 2235 | Width 26mm x Length 230mm | 12 | 1021 | 3000 | 92 | 24 | IP20 | NA | Non Dim | Download | Download | Download | Download |
|
|
Joule Discreet Grid | 2235 | Width 26mm x Length 230mm | 12 | 997 | 2700 | 92 | 15 | IP20 | NA | Non Dim | Download | Download | Download | Download |
