Sleek Linear Form
The thin, minimalist profile 12mm ensures the light source remains subtle and unobtrusive within the track

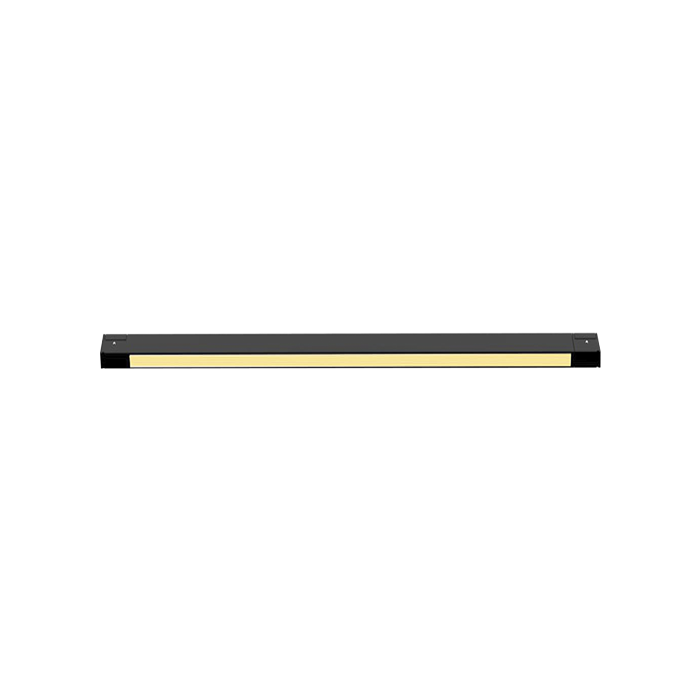

Invi Diffused Modules (M and L) are the ideal linear solution for general and ambient lighting within the Joule Invi Magnetic Track system. Designed to eliminate hot spots and glare (UGR < 19), these modules create a soft, continuous band of light that is perfect for retail shelf lighting, uniform task lighting over counters, or subtle corridor illumination. Like all Invi modules, they attach magnetically for maximum flexibility and deliver high-CRI light quality with a discreet, minimalist aesthetic
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

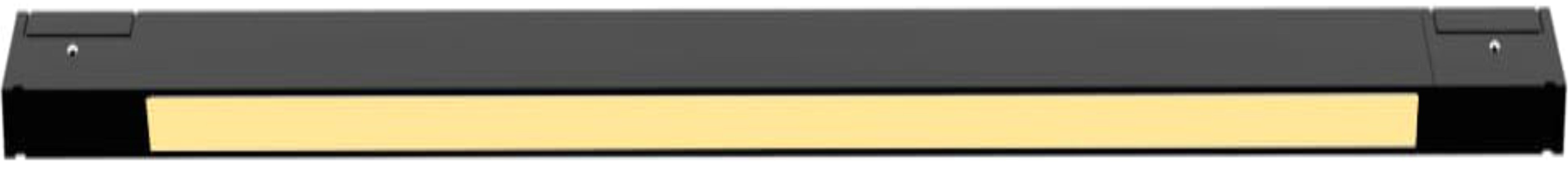

Joule Invi Diffused | 2229 | Width 10mm x Length 358mm | 9 | 738 | 4000 | 92 | Diffused | IP20 | NA | Non Dim | Download | Download | Download | Download |
|
|
Joule Invi Diffused | 2229 | Width 10mm x Length 358mm | 9 | 707 | 3000 | 92 | Diffused | IP20 | NA | Non Dim | Download | Download | Download | Download |
|
|
Joule Invi Diffused | 2229 | Width 10mm x Length 358mm | 9 | 691 | 2700 | 92 | Diffused | IP20 | NA | Non Dim | Download | Download | Download | Download |
|
|

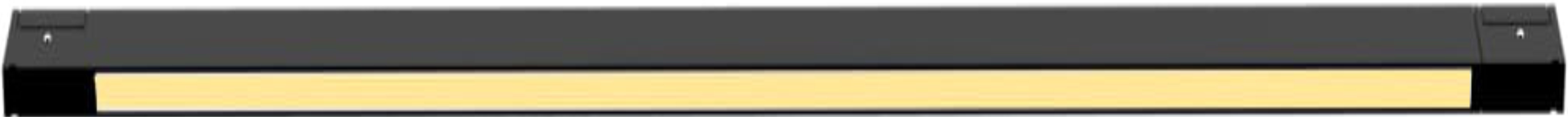

Joule Invi Diffused | 2230 | Width 10mm x Length 578mm | 18 | 1476 | 4000 | 92 | Diffused | IP20 | NA | Non Dim | Download | Download | Download | Download |
|
|
Joule Invi Diffused | 2230 | Width 10mm x Length 578mm | 18 | 1414 | 3000 | 92 | Diffused | IP20 | NA | Non Dim | Download | Download | Download | Download |
|
|
Joule Invi Diffused | 2230 | Width 10mm x Length 578mm | 18 | 1382 | 2700 | 92 | Diffused | IP20 | NA | Non Dim | Download | Download | Download | Download |
