Instant Magnetic Attachment
Enables tool-free placement and repositioning anywhere along the Invi Track, providing maximum design flexibility

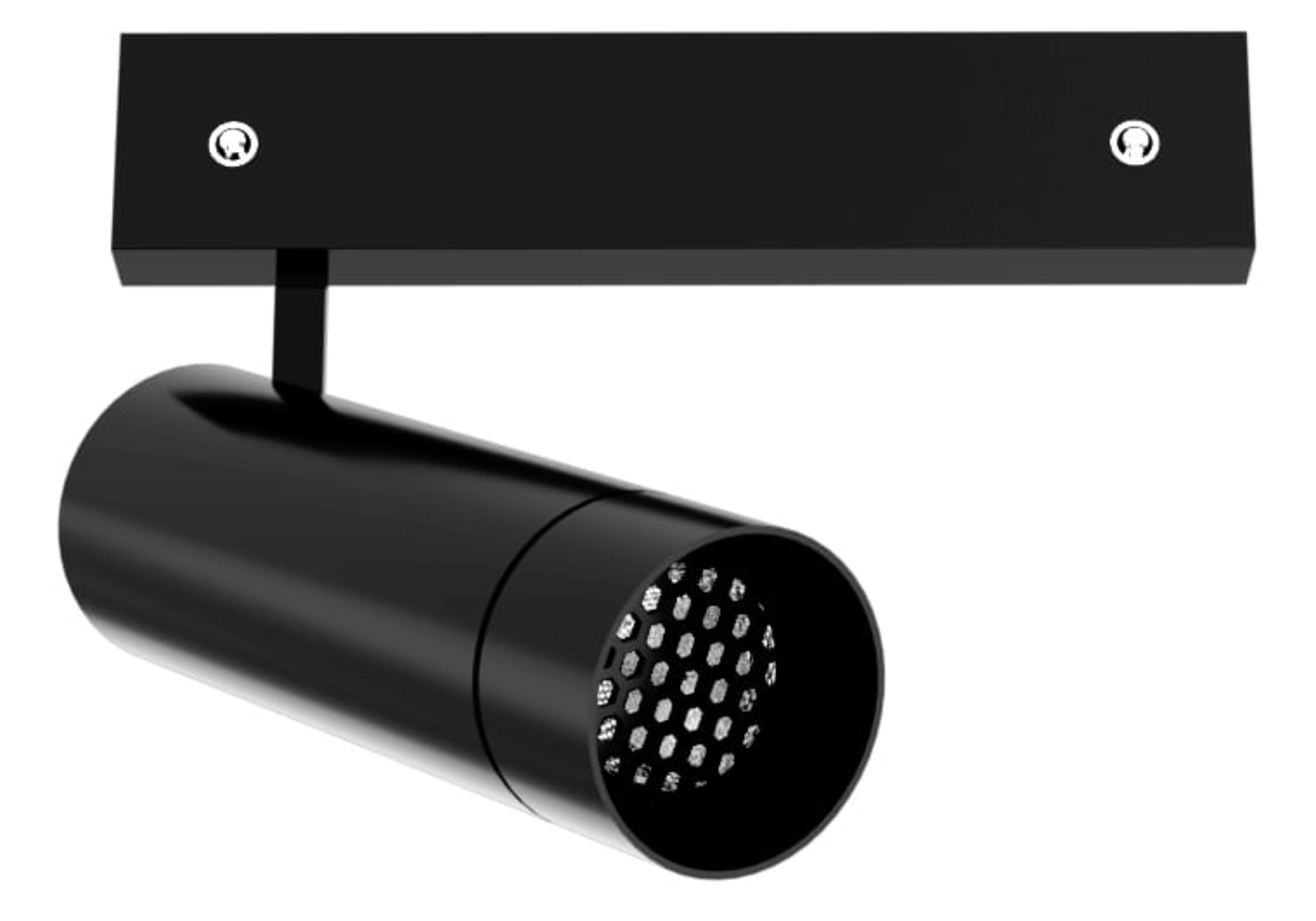

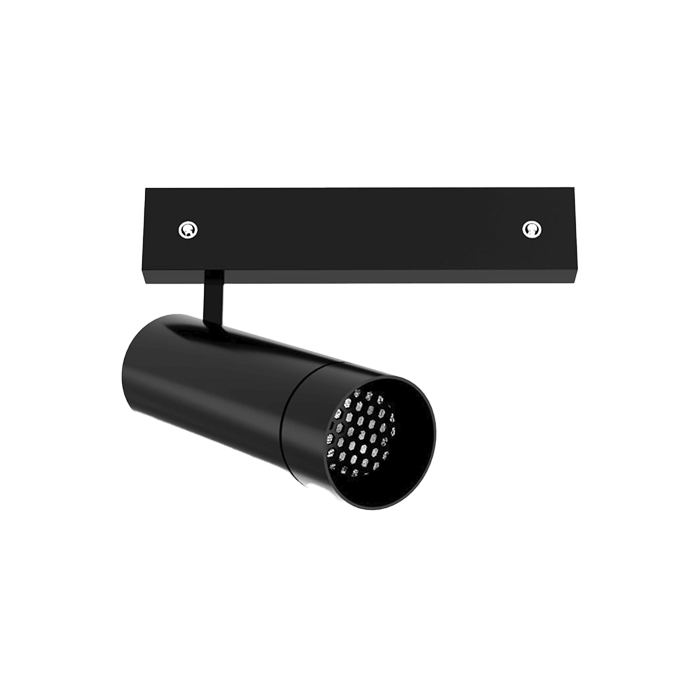

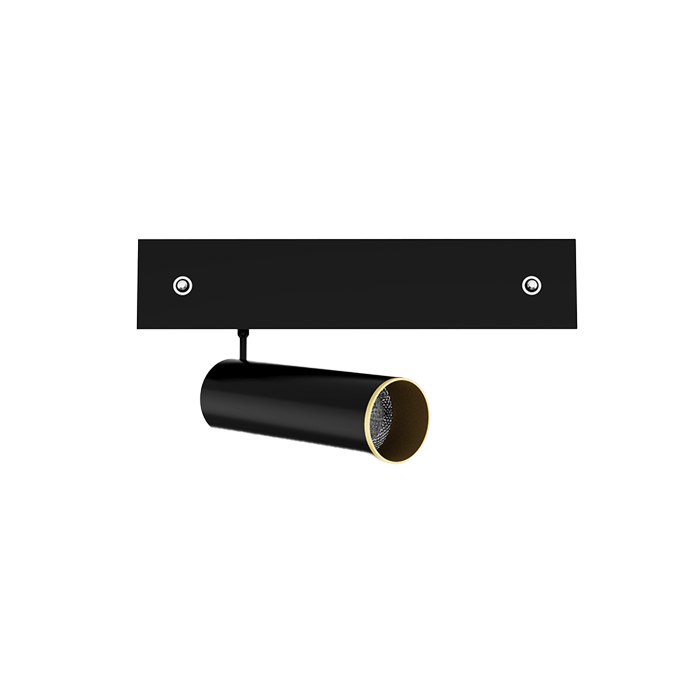

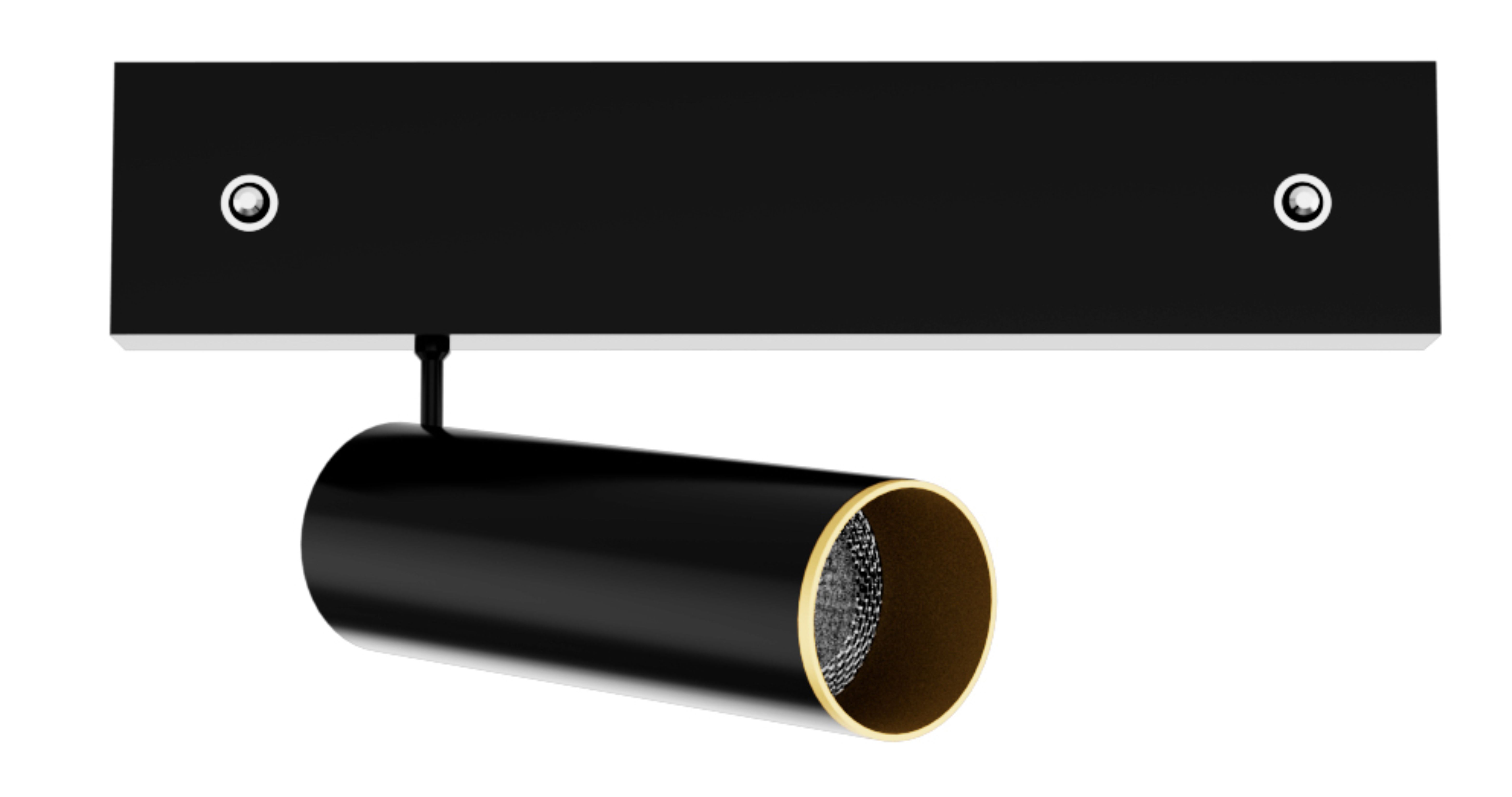

Invi Magnetic Spot Modules (S and M) represent the core of the Joule Invi system, delivering high-CRI, focused accent lighting within a clean, adaptable track infrastructure. Both modules utilize a magnetic attachment for instant, tool-free placement and aiming, enabling designers to effortlessly change the lighting focus as needs evolve. With superior Type CRI 95 light quality and deep recessing to achieve a low UGR < 19, these modules provide bright, comfortable, and precise illumination ideal for highlighting artwork, merchandise, or architectural details in galleries, retail spaces, and high-end residential projects.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Joule Invi Spot | 2227 | Diameter 22mm x Height 67mm | 3 | 267 | 4000 | 95 | 24 | IP20 | Honeycomb | Non Dim | Download | Download | Download | Download |
|
|
Joule Invi Spot | 2227 | Diameter 22mm x Height 67mm | 3 | 258 | 3000 | 95 | 24 | IP20 | Honeycomb | Non Dim | Download | Download | Download | Download |
|
|
Joule Invi Spot | 2227 | Diameter 22mm x Height 67mm | 3 | 254 | 2700 | 95 | 24 | IP20 | Honeycomb | Non Dim | Download | Download | Download | Download |
|
|
Joule Invi Spot | 2228 | Diameter 34mm x Height 100mm | 8 | 712 | 4000 | 95 | 24 | IP20 | Honeycomb | Non Dim | Download | Download | Download | Download |
|
|
Joule Invi Spot | 2228 | Diameter 34mm x Height 100mm | 8 | 678 | 2700 | 95 | 24 | IP20 | Honeycomb | Non Dim | Download | Download | Download | Download |
|
|
Joule Invi Spot | 2228 | Diameter 34mm x Height 100mm | 8 | 687 | 3000 | 95 | 24 | IP20 | Honeycomb | Non Dim | Download | Download | Download | Download |
