Uniform Light Wash
Provides smooth, homogenous diffused lighting without visible light sources.

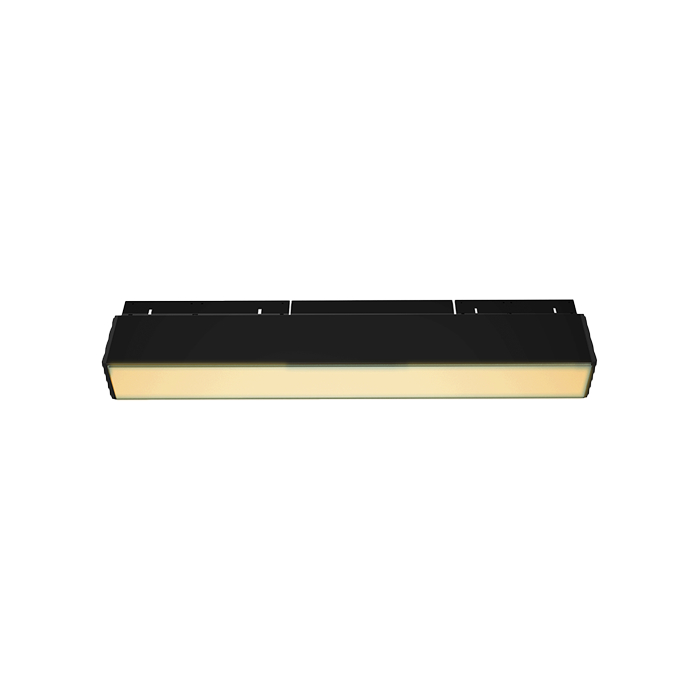

Joule Diffused module is a linear light source that provides soft, uniform illumination across a space. It features a high-quality diffuser to eliminate hotspots and distribute a smooth, even wash of ambient light. This module is typically used to fill in linear runs between accent modules or to provide the main source of low-glare general illumination in corridors and rooms.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Joule Standard Diffused | 2156 | Width 22mm x Length 300mm | 10 | 848 | Tunable White2700 to 6500 | 92 | Diffused | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | - | Download | Download | Download |
|
|
Joule Standard Diffused | 2156 | Width 22mm x Length 300mm | 10 | 880 | 6500 | 92 | Diffused | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Diffused | 2156 | Width 22mm x Length 300mm | 10 | 860 | 4000 | 92 | Diffused | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Diffused | 2156 | Width 22mm x Length 300mm | 10 | 835 | 3000 | 92 | Diffused | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Diffused | 2156 | Width 22mm x Length 300mm | 10 | 815 | 2700 | 92 | Diffused | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Diffused | 2157 | Width 22mm x Length 600mm | 18 | 1523 | Tunable White2700 to 6500 | 92 | Diffused | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | - | Download | Download | Download |
|
|
Joule Standard Diffused | 2157 | Width 22mm x Length 600mm | 18 | 628 | 6500 | 92 | Diffused | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Diffused | 2157 | Width 22mm x Length 600mm | 18 | 628 | 4000 | 92 | Diffused | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Diffused | 2157 | Width 22mm x Length 600mm | 18 | 968 | 3000 | 92 | Diffused | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Diffused | 2157 | Width 22mm x Length 600mm | 18 | 1523 | 2700 | 92 | Diffused | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
