Joule standard grid M/L

  • Gallery Image

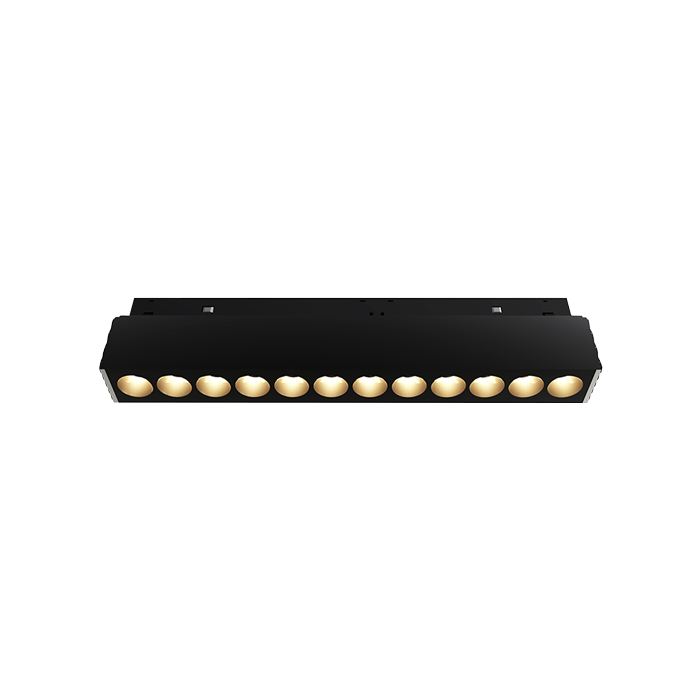

Joule standard grid M/L

Interior Spaces

Joule Grid module is a highly controlled downlight that features a deep-set, anti-glare reflector or grid. This design ensures the light source is shielded, delivering powerful illumination with supreme visual comfort. It is perfect for commercial settings, galleries, and high-end residential areas where strong, focused light is required without any visual distraction or glare.

Enquire Now

Specifications

Product Image
Wattage
12W - 18W
Lumen
1050lm - 1665lm
Beam angle
15°/25°/38°
UGR
< 19
IP Rating
IP20
check icon
Supreme Glare Control
Deep-set grid optics provide a low UGR <19 rating for exceptional visual comfort.
check icon
High Output
Available in up to 10W of High Power LED, delivering bright, focused illumination.
check icon
Focused Beams:
Features 15° and 24° beam angle options for precision accent lighting.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual

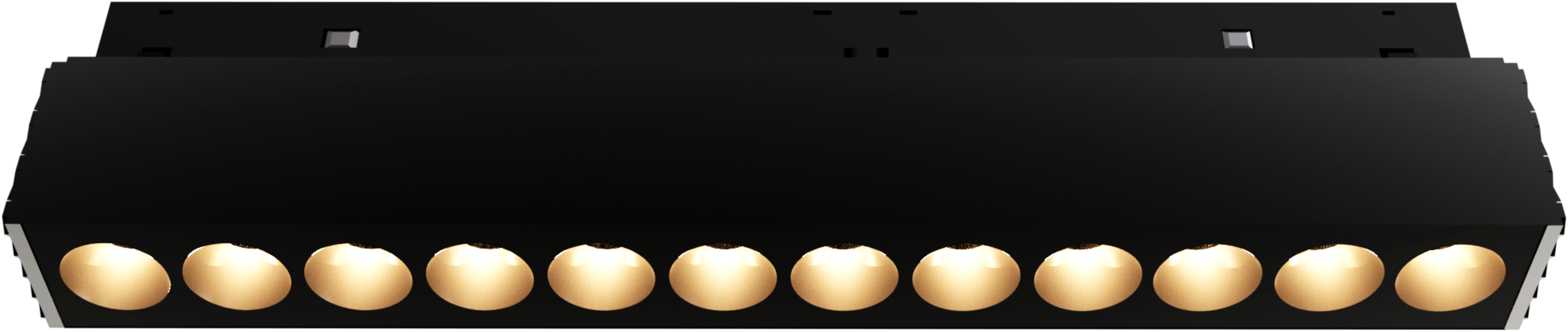

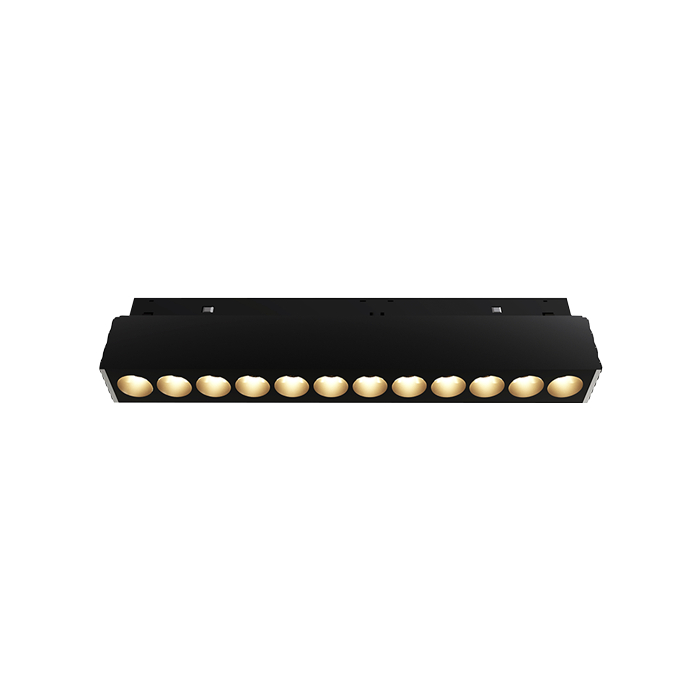

product-img Joule Standard Grid 2151 Width 22mm x Length 220mm 12 1110 4000 92 38 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2151 Width 22mm x Length 220mm 12 1110 4000 92 24 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2151 Width 22mm x Length 220mm 12 1110 4000 92 15 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2151 Width 22mm x Length 220mm 12 1075 3000 92 38 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2151 Width 22mm x Length 220mm 12 1075 3000 92 24 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2151 Width 22mm x Length 220mm 12 1075 3000 92 15 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2151 Width 22mm x Length 220mm 12 1050 2700 92 38 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2151 Width 22mm x Length 220mm 12 1050 2700 92 24 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2151 Width 22mm x Length 220mm 12 1050 2700 92 15 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2152 Width 22mm x Length 330mm 18 1665 4000 92 38 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2152 Width 22mm x Length 330mm 18 1665 4000 92 24 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2152 Width 22mm x Length 330mm 18 1665 4000 92 15 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2152 Width 22mm x Length 330mm 18 1615 3000 92 38 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2152 Width 22mm x Length 330mm 18 1615 3000 92 24 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2152 Width 22mm x Length 330mm 18 1615 3000 92 15 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2152 Width 22mm x Length 330mm 18 1575 2700 92 38 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2152 Width 22mm x Length 330mm 18 1575 2700 92 24 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
product-img Joule Standard Grid 2152 Width 22mm x Length 330mm 18 1575 2700 92 15 IP20 NA Non Dim/Analog Dim/DALI Dim/Dali Tunable Download Download Download Download
