Directional Adjustability
Can be tilted to focus light exactly where it is needed.

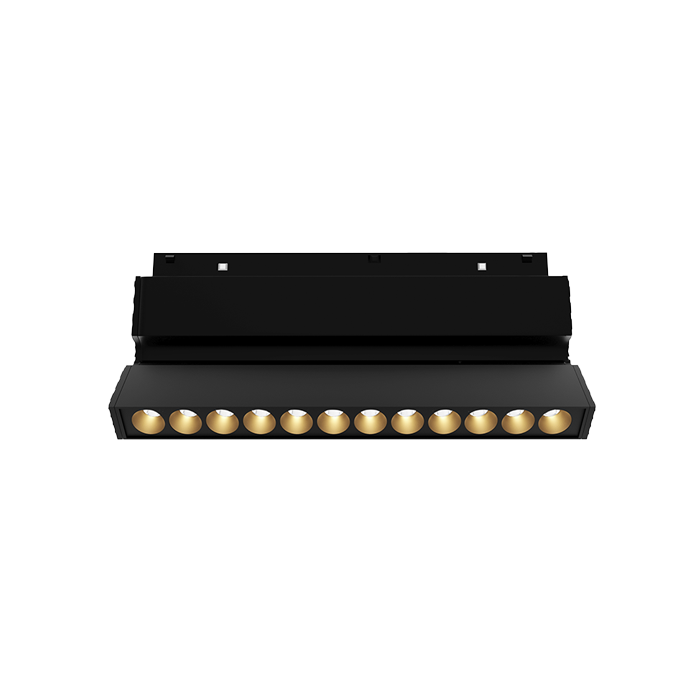

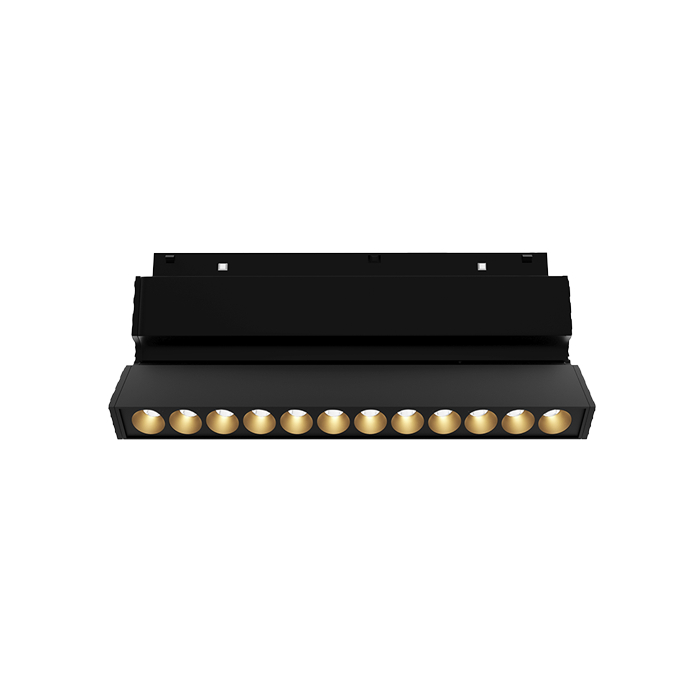

Joule Tilt module adds dynamic flexibility to the track system, allowing the downlight to be precisely angled to preference. This functionality is essential for accenting sloped ceilings, highlighting wall displays, or directing light away from viewing angles. It provides the same glare control and high CRI as the Grid module but with full manual adjustability for versatile spotlighting.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

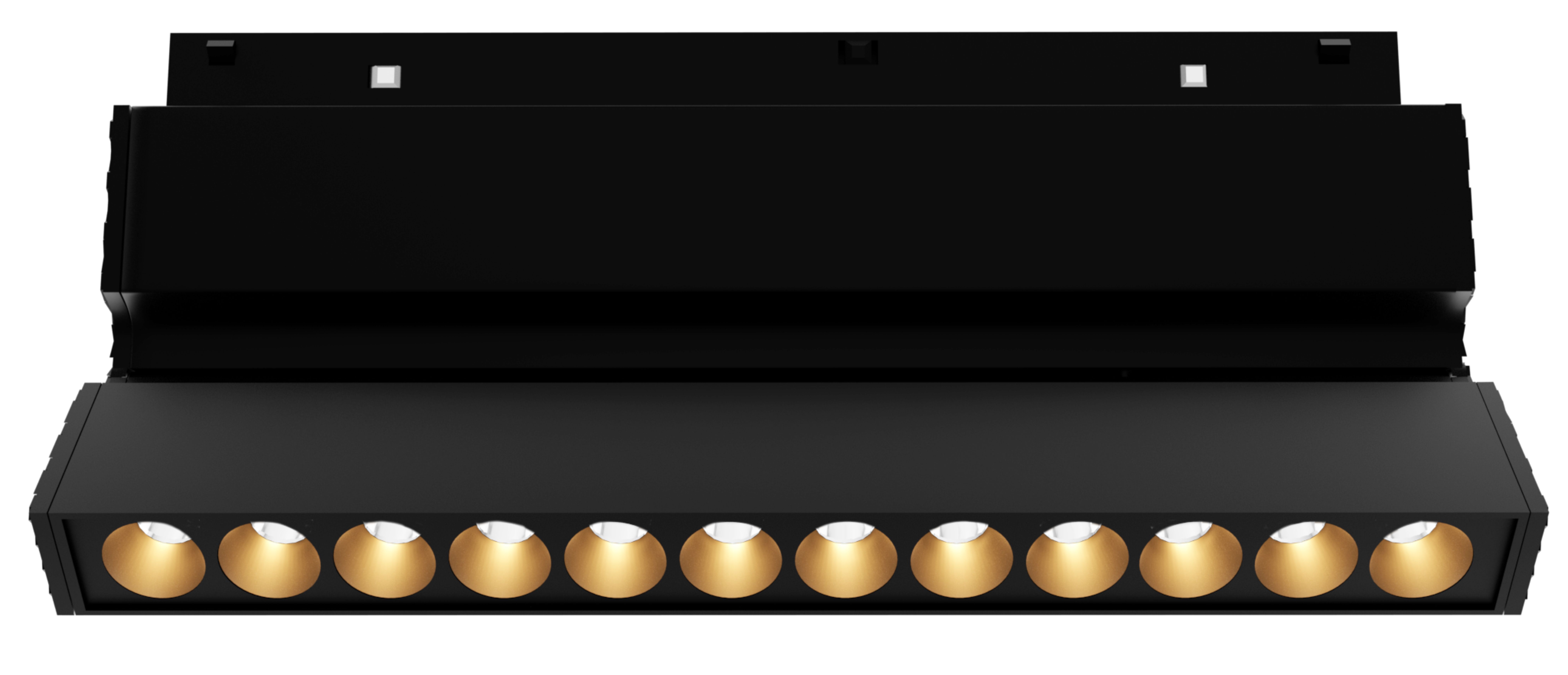

Joule Standard Tilt | 2154 | Width 22mm x Length 220mm | 12 | 628 | 4000 | 92 | 38 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2154 | Width 22mm x Length 220mm | 12 | 628 | 3000 | 92 | 38 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2154 | Width 22mm x Length 220mm | 12 | 628 | 2700 | 92 | 38 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2154 | Width 22mm x Length 220mm | 12 | 968 | 4000 | 92 | 24 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2154 | Width 22mm x Length 220mm | 12 | 1523 | 3000 | 92 | 24 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2154 | Width 22mm x Length 220mm | 12 | 848 | 2700 | 92 | 24 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2154 | Width 22mm x Length 220mm | 12 | 1638 | 4000 | 92 | 15 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2154 | Width 22mm x Length 220mm | 12 | 1638 | 3000 | 92 | 15 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2154 | Width 22mm x Length 220mm | 12 | 1638 | 2700 | 92 | 15 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2155 | Width 22mm x Length 330mm | 18 | 1665 | 4000 | 92 | 38 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2155 | Width 22mm x Length 330mm | 18 | 1547 | 4000 | 92 | 24 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2155 | Width 22mm x Length 330mm | 18 | 860 | 4000 | 92 | 15 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2155 | Width 22mm x Length 330mm | 18 | 1615 | 3000 | 92 | 38 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2155 | Width 22mm x Length 330mm | 18 | 1547 | 3000 | 92 | 24 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2155 | Width 22mm x Length 330mm | 18 | 860 | 3000 | 92 | 15 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2155 | Width 22mm x Length 330mm | 18 | 1575 | 2700 | 92 | 38 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2155 | Width 22mm x Length 330mm | 18 | 1547 | 2700 | 92 | 24 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Tilt | 2155 | Width 22mm x Length 330mm | 18 | 860 | 2700 | 92 | 15 | IP20 | NA | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
