Powerful Output
Delivers a concentrated beam for high-intensity accent lighting.

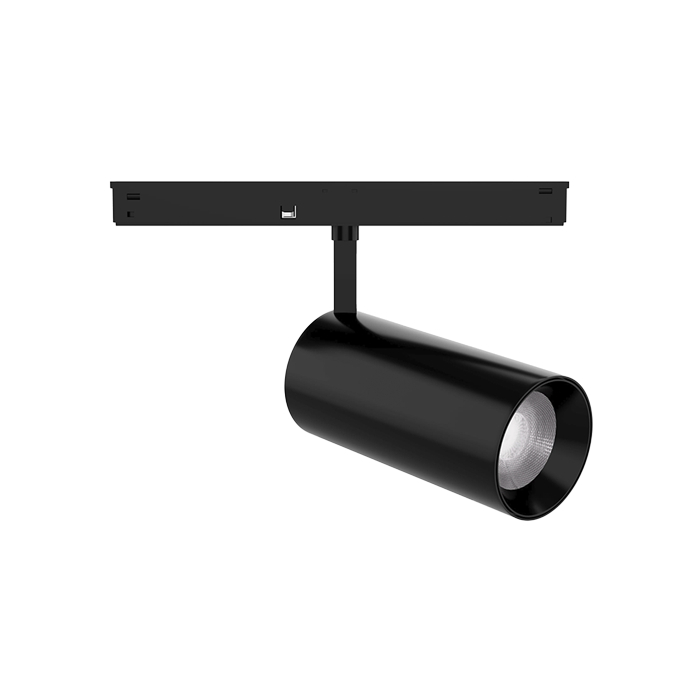

Joule Spot is a compact, high-intensity module that delivers a powerful, concentrated beam of light. Its small size makes it discreet, while its strong output is ideal for creating dramatic accent lighting. It is commonly used to create sharp contrasts, highlight small objects, or add a dramatic "pop" of light to specific focal points.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Joule Standard Spot | 2161 | Diameter 45mm x Length 90mm | 7 | 630 | 4000 | 92 | 38 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2161 | Diameter 45mm x Length 90mm | 7 | 630 | 4000 | 92 | 24 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2161 | Diameter 45mm x Length 90mm | 7 | 630 | 4000 | 92 | 15 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2161 | Diameter 45mm x Length 90mm | 7 | 610 | 3000 | 92 | 38 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2161 | Diameter 45mm x Length 90mm | 7 | 610 | 3000 | 92 | 24 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2161 | Diameter 45mm x Length 90mm | 7 | 610 | 3000 | 92 | 15 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2161 | Diameter 45mm x Length 90mm | 7 | 595 | 2700 | 92 | 38 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2161 | Diameter 45mm x Length 90mm | 7 | 595 | 2700 | 92 | 24 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2161 | Diameter 45mm x Length 90mm | 7 | 595 | 2700 | 92 | 15 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2162 | Diameter 50mm x Length 100mm | 12 | 1085 | 4000 | 92 | 38 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2162 | Diameter 50mm x Length 100mm | 12 | 1085 | 4000 | 92 | 24 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2162 | Diameter 50mm x Length 100mm | 12 | 1085 | 4000 | 92 | 15 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2162 | Diameter 50mm x Length 100mm | 12 | 1050 | 3000 | 92 | 38 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2162 | Diameter 50mm x Length 100mm | 12 | 1050 | 3000 | 92 | 24 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2162 | Diameter 50mm x Length 100mm | 12 | 1050 | 3000 | 92 | 15 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2162 | Diameter 50mm x Length 100mm | 12 | 1025 | 2700 | 92 | 38 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2162 | Diameter 50mm x Length 100mm | 12 | 1025 | 2700 | 92 | 24 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2162 | Diameter 50mm x Length 100mm | 12 | 1025 | 2700 | 92 | 15 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2170 | Diameter 60mm x Length 125mm | 18 | 1627 | 4000 | 92 | 38 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2170 | Diameter 60mm x Length 125mm | 18 | 1627 | 4000 | 92 | 24 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2170 | Diameter 60mm x Length 125mm | 18 | 1627 | 4000 | 92 | 15 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2170 | Diameter 60mm x Length 125mm | 18 | 1575 | 3000 | 92 | 38 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2170 | Diameter 60mm x Length 125mm | 18 | 1575 | 3000 | 92 | 24 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2170 | Diameter 60mm x Length 125mm | 18 | 1575 | 3000 | 92 | 15 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2170 | Diameter 60mm x Length 125mm | 18 | 1537 | 2700 | 92 | 38 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2170 | Diameter 60mm x Length 125mm | 18 | 1537 | 2700 | 92 | 24 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
|
|
Joule Standard Spot | 2170 | Diameter 60mm x Length 125mm | 18 | 1537 | 2700 | 92 | 15 | IP20 | Honeycomb | Non Dim/Analog Dim/DALI Dim/Dali Tunable | Download | Download | Download | Download |
