Soft, Uniform Illumination
Diffused lens design provides even light distribution with minimal glare, enhancing visual comfort and ambience

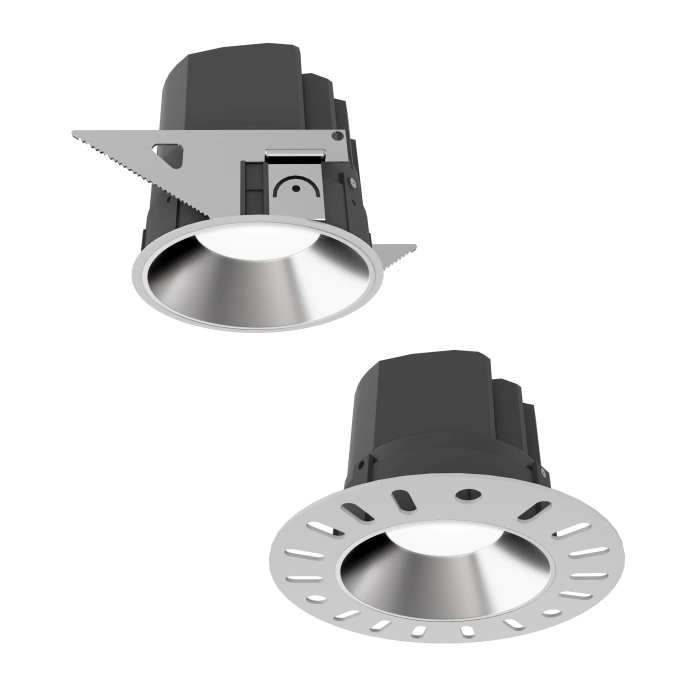

The Opus Diffused Series embodies the essence of soft, balanced illumination for contemporary interiors. Designed with architectural precision, it merges advanced LED technology with diffused optical control to deliver uniform, glare-free light across any space. Available in both trim and trimless configurations, Opus Diffused seamlessly integrates into ceilings for a sleek, minimalist finish. Its high-performance light engine ensures exceptional efficiency, color consistency, and visual comfort — making it ideal for hospitality, residential, and corporate settings where ambience and aesthetics matter equally.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Opus Diffused Trimless | 1141 | Dia 51 x H 62mm | 10 | 770 | 2700 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused Trimless | 1141 | Dia 51 x H 62mm | 10 | 790 | 3000 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused Trimless | 1141 | Dia 51 x H 62mm | 10 | 815 | 4000 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused Trimless | 1144 | Dia 68 x H 74mm | 15 | 1175 | 2700 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused Trimless | 1144 | Dia 68 x H 74mm | 15 | 1205 | 3000 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused Trimless | 1144 | Dia 68 x H 74mm | 15 | 1240 | 4000 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused Trimless | 1147 | Dia 88 x H 93mm | 25 | 1860 | 2700 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused Trimless | 1147 | Dia 88 x H 93mm | 25 | 1910 | 3000 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused Trimless | 1147 | Dia 88 x H 93mm | 25 | 1965 | 4000 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused Trimless | 1150 | Dia 105 x H 107mm | 35 | 2745 | 2700 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused Trimless | 1150 | Dia 105 x H 107mm | 35 | 2815 | 3000 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused Trimless | 1150 | Dia 105 x H 107mm | 35 | 2900 | 4000 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|

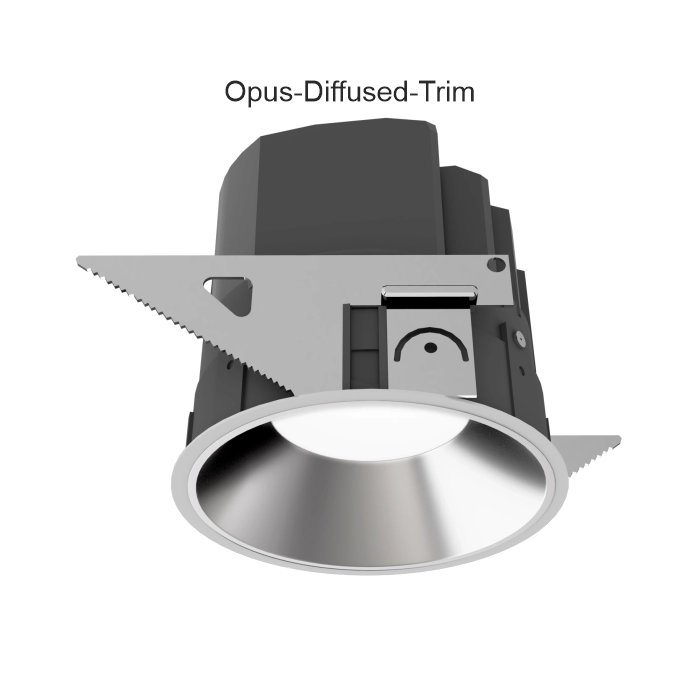

Opus Diffused | 1140 | Dia 70 x H 62mm | 10 | 770 | 2700 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused | 1140 | Dia 70 x H 62mm | 10 | 790 | 3000 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused | 1140 | Dia 70 x H 62mm | 10 | 815 | 4000 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused | 1143 | Dia 87 x H 74mm | 15 | 1175 | 2700 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused | 1143 | Dia 87 x H 74mm | 15 | 1205 | 3000 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused | 1143 | Dia 87 x H 74mm | 15 | 1240 | 4000 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused | 1146 | Dia 108 x H 93mm | 25 | 1860 | 2700 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused | 1146 | Dia 108 x H 93mm | 25 | 1910 | 3000 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused | 1146 | Dia 108 x H 93mm | 25 | 1965 | 4000 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused | 1149 | Dia 130 x H 107mm | 35 | 2745 | 2700 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused | 1149 | Dia 130 x H 107mm | 35 | 2815 | 3000 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Opus Diffused | 1149 | Dia 130 x H 107mm | 35 | 2900 | 4000 | 95 | Diffused | IP44 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
