Retractable Pullout Mechanism
Features a unique design that allows the light engine to be pulled out of the ceiling for maximum aiming flexibility, covering a wider range than fixed-angle adjustable lights.
Tenace Pullout Capsule Models (Trim/Trimless) are the most versatile adjustable downlights for modern, linear designs. These fixtures feature a mechanism that allows the light engine to be pulled out of the ceiling and fully articulated with 360° rotation and high-angle tilt. This unique combination of the Capsule's clean aesthetic and dynamic movement delivers powerful, precise accenting across a wider range than standard recessed fixtures.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

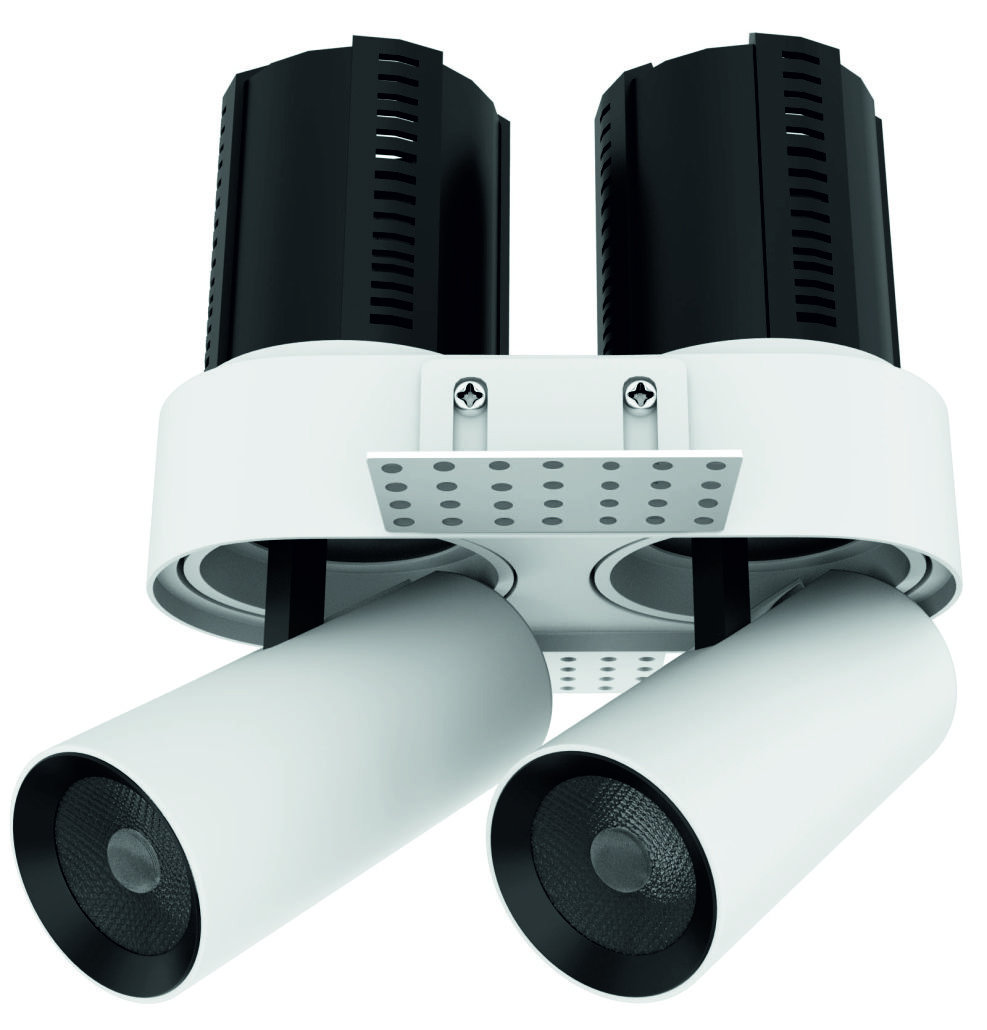

Tenace Pullout - Capsule Trimless | 1237 | 122L x 60W x 89H | 14 | 1280 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1237 | 122L x 60W x 89H | 14 | 1280 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1237 | 122L x 60W x 89H | 14 | 1280 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1237 | 122L x 60W x 89H | 14 | 1280 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1237 | 122L x 60W x 89H | 14 | 1280 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1237 | 122L x 60W x 89H | 14 | 1240 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1237 | 122L x 60W x 89H | 14 | 1240 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1237 | 122L x 60W x 89H | 14 | 1240 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1237 | 122L x 60W x 89H | 14 | 1240 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1237 | 122L x 60W x 89H | 14 | 1240 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1237 | 122L x 60W x 89H | 14 | 1210 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1237 | 122L x 60W x 89H | 14 | 1210 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1237 | 122L x 60W x 89H | 14 | 1210 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1237 | 122L x 60W x 89H | 14 | 1210 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1237 | 122L x 60W x 89H | 14 | 1210 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1239 | 179L x 84W x 115H | 24 | 2170 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1239 | 179L x 84W x 115H | 24 | 2170 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1239 | 179L x 84W x 115H | 24 | 2170 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1239 | 179L x 84W x 115H | 24 | 2170 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1239 | 179L x 84W x 115H | 24 | 2170 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1239 | 179L x 84W x 115H | 24 | 2110 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1239 | 179L x 84W x 115H | 24 | 2110 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1239 | 179L x 84W x 115H | 24 | 2110 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1239 | 179L x 84W x 115H | 24 | 2110 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1239 | 179L x 84W x 115H | 24 | 2110 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1239 | 179L x 84W x 115H | 24 | 2060 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1239 | 179L x 84W x 115H | 24 | 2060 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1239 | 179L x 84W x 115H | 24 | 2060 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1239 | 179L x 84W x 115H | 24 | 2060 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1239 | 179L x 84W x 115H | 24 | 2060 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|

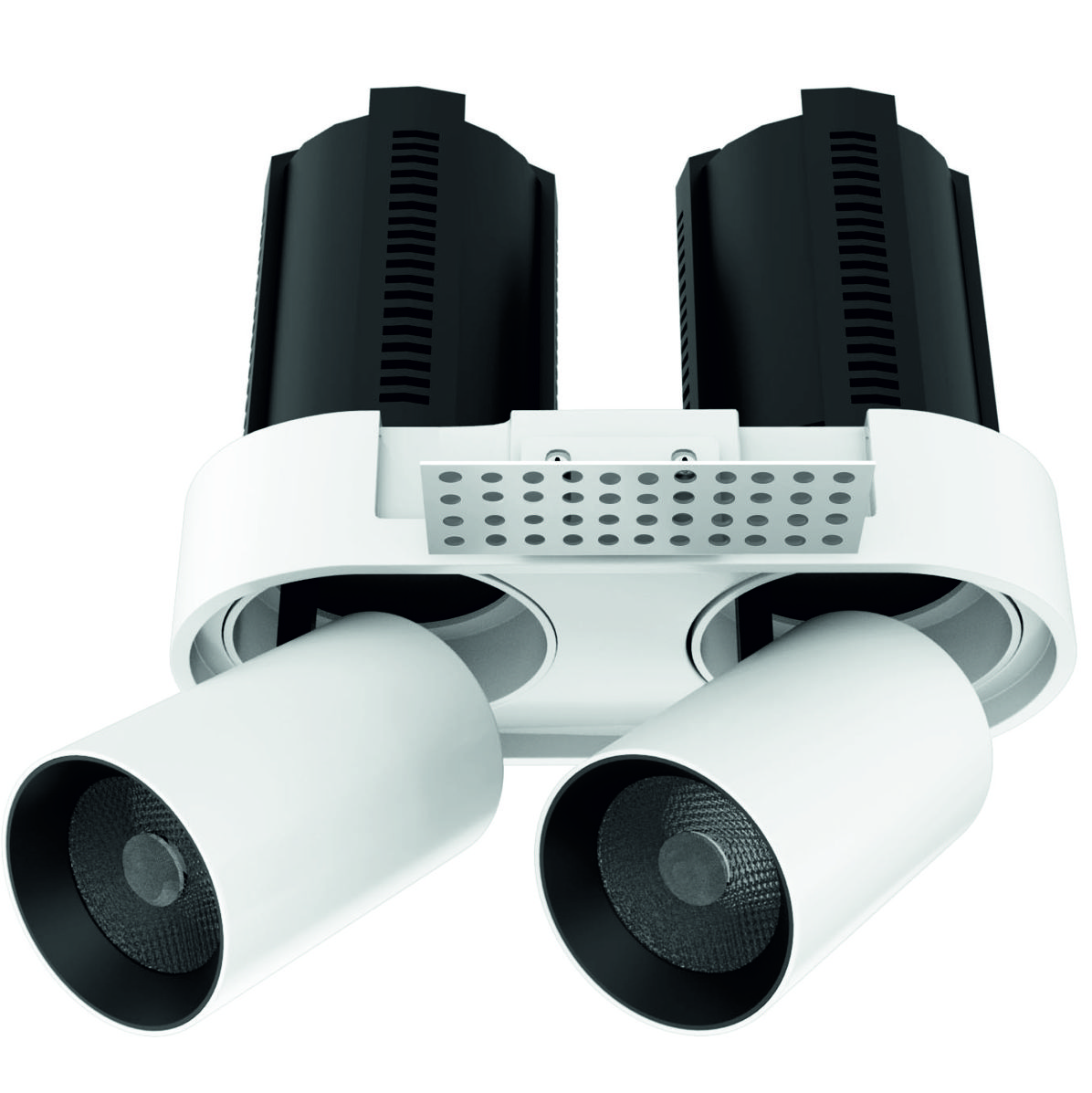

Tenace Pullout - Capsule Trimless | 1241 | 224L x 104W x 134H | 50 | 4500 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1241 | 224L x 104W x 134H | 50 | 4500 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1241 | 224L x 104W x 134H | 50 | 4500 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1241 | 224L x 104W x 134H | 50 | 4500 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1241 | 224L x 104W x 134H | 50 | 4500 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1241 | 224L x 104W x 134H | 50 | 4360 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1241 | 224L x 104W x 134H | 50 | 4360 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1241 | 224L x 104W x 134H | 50 | 4360 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1241 | 224L x 104W x 134H | 50 | 4360 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1241 | 224L x 104W x 134H | 50 | 4250 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1241 | 224L x 104W x 134H | 50 | 4360 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1241 | 224L x 104W x 134H | 50 | 4250 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1241 | 224L x 104W x 134H | 50 | 4250 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1241 | 224L x 104W x 134H | 50 | 4250 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule Trimless | 1241 | 224L x 104W x 134H | 50 | 4250 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|

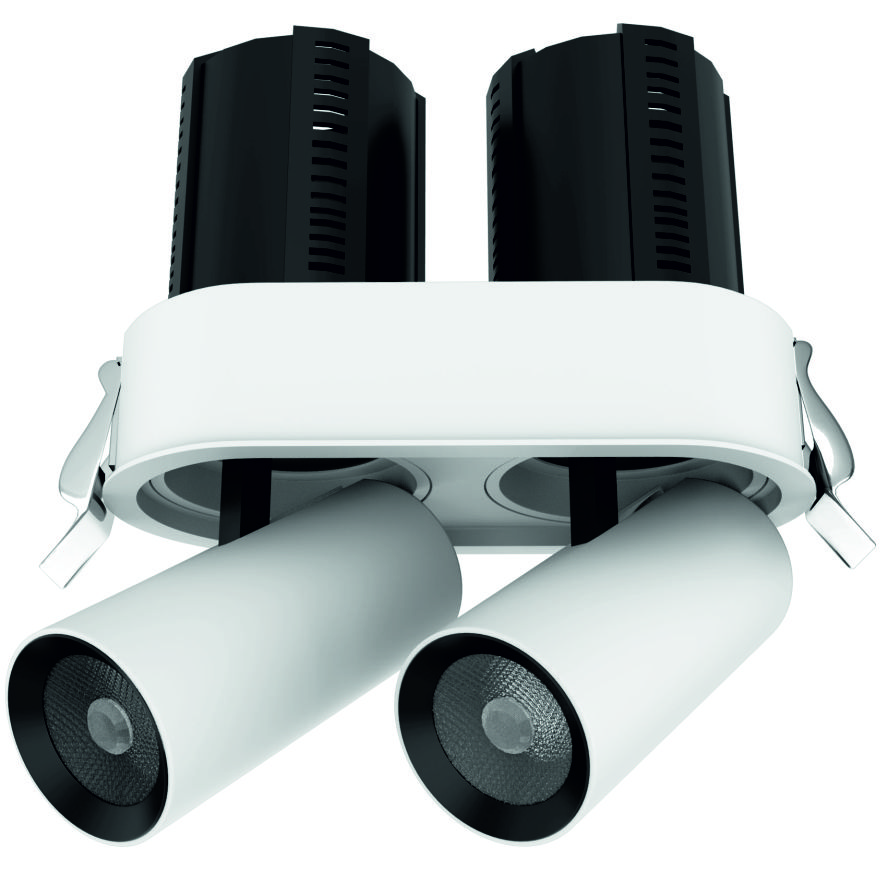

Tenace Pullout - Capsule | 1236 | 140L x 78W x 89H | 14 | 1280 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1236 | 140L x 78W x 89H | 14 | 1280 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1236 | 140L x 78W x 89H | 14 | 1280 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1236 | 140L x 78W x 89H | 14 | 1280 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1236 | 140L x 78W x 89H | 14 | 1280 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1236 | 140L x 78W x 89H | 14 | 1240 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1236 | 140L x 78W x 89H | 14 | 1240 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1236 | 140L x 78W x 89H | 14 | 1240 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1236 | 140L x 78W x 89H | 14 | 1240 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1236 | 140L x 78W x 89H | 14 | 1240 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1236 | 140L x 78W x 89H | 14 | 1210 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1236 | 140L x 78W x 89H | 14 | 1210 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1236 | 140L x 78W x 89H | 14 | 1210 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1236 | 140L x 78W x 89H | 14 | 1210 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1236 | 140L x 78W x 89H | 14 | 1210 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1238 | 195L x 100W x 115H | 24 | 2170 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1238 | 195L x 100W x 115H | 24 | 2170 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1238 | 195L x 100W x 115H | 24 | 2170 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1238 | 195L x 100W x 115H | 24 | 2170 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1238 | 195L x 100W x 115H | 24 | 2170 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1238 | 195L x 100W x 115H | 24 | 2110 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1238 | 195L x 100W x 115H | 24 | 2110 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1238 | 195L x 100W x 115H | 24 | 2110 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1238 | 195L x 100W x 115H | 24 | 2110 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1238 | 195L x 100W x 115H | 24 | 2110 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1238 | 195L x 100W x 115H | 24 | 2060 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1238 | 195L x 100W x 115H | 24 | 2060 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1238 | 195L x 100W x 115H | 24 | 2060 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1238 | 195L x 100W x 115H | 24 | 2060 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1238 | 195L x 100W x 115H | 24 | 2060 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|

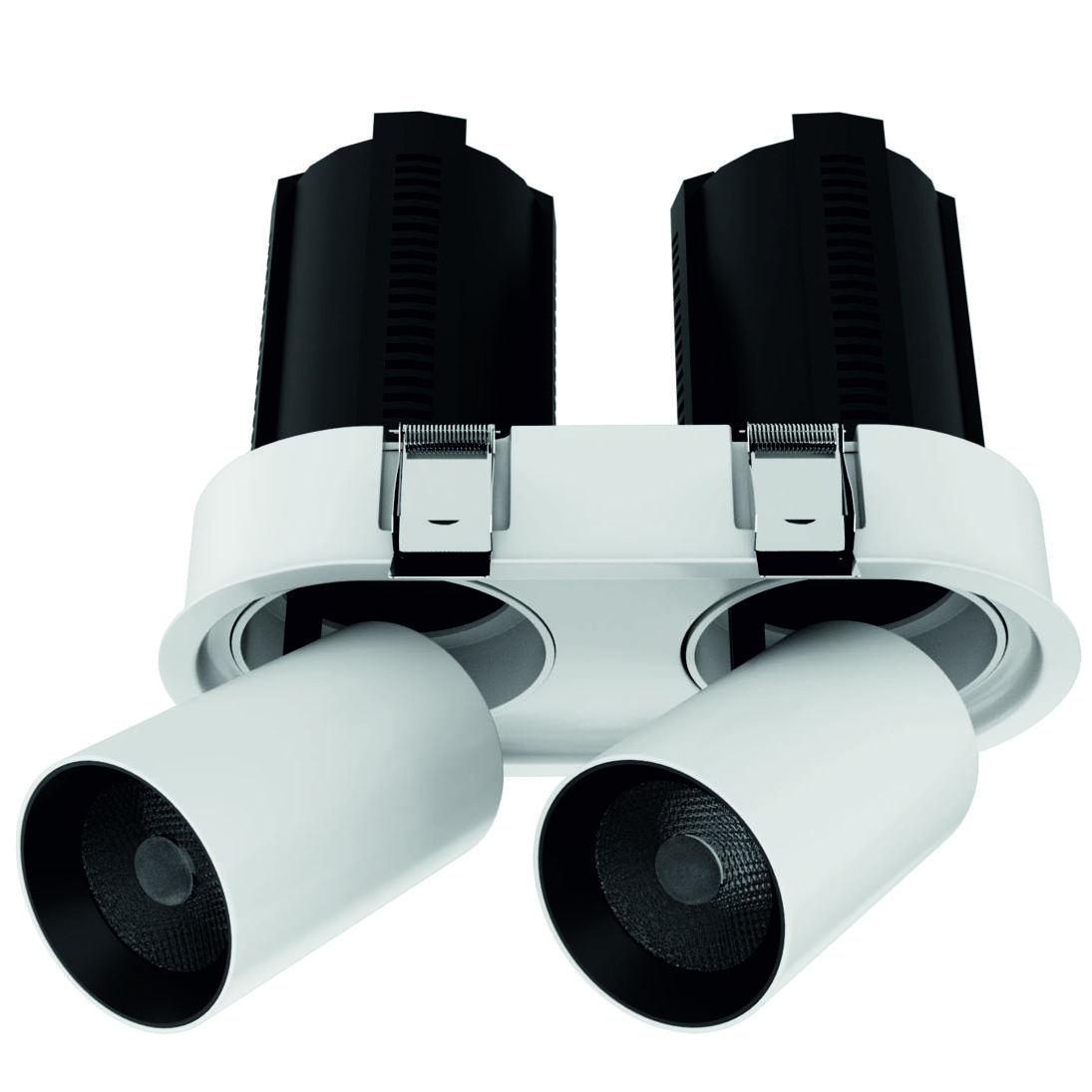

Tenace Pullout - Capsule | 1240 | 240L x 120W x 134H | 50 | 4500 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1240 | 240L x 120W x 134H | 50 | 4500 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1240 | 240L x 120W x 134H | 50 | 4500 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1240 | 240L x 120W x 134H | 50 | 4500 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1240 | 240L x 120W x 134H | 50 | 4500 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1240 | 240L x 120W x 134H | 50 | 4360 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1240 | 240L x 120W x 134H | 50 | 4360 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1240 | 240L x 120W x 134H | 50 | 4360 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1240 | 240L x 120W x 134H | 50 | 4360 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1240 | 240L x 120W x 134H | 50 | 4360 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1240 | 240L x 120W x 134H | 50 | 4250 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1240 | 240L x 120W x 134H | 50 | 4250 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1240 | 240L x 120W x 134H | 50 | 4250 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1240 | 240L x 120W x 134H | 50 | 4250 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Capsule | 1240 | 240L x 120W x 134H | 50 | 4250 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
