Retractable Pullout Mechanism
Features a unique design that allows the light engine to be pulled out of the ceiling for maximum aiming flexibility, covering a wider range than fixed-angle adjustable lights.

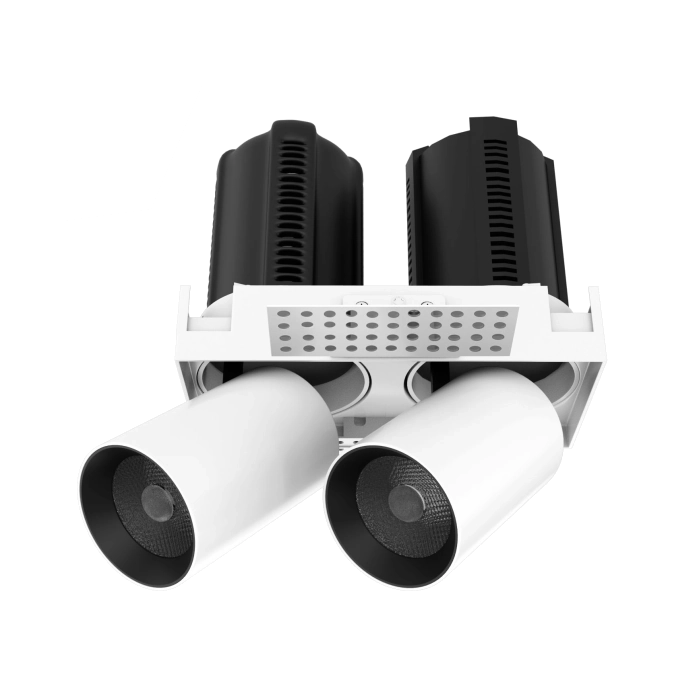

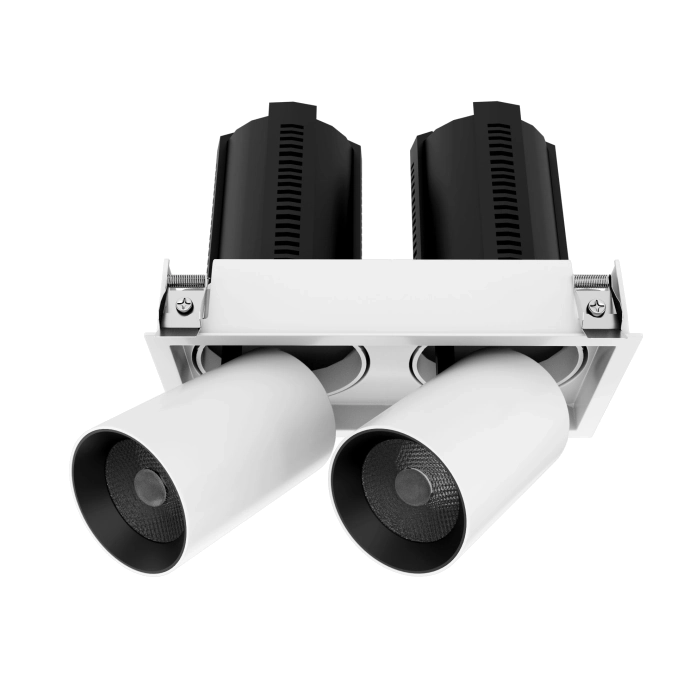

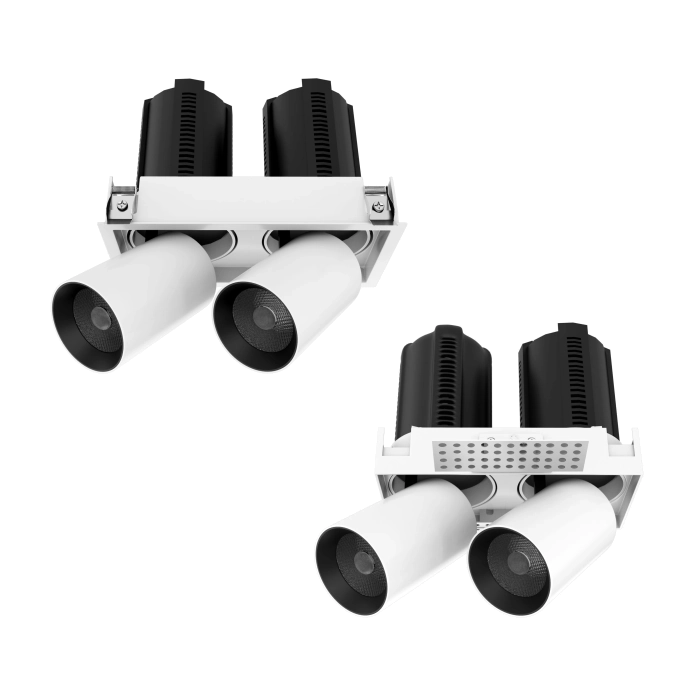

Tenace Pullout Frame models (Trim/Trimless) are the ultimate linear accent fixture, featuring two independently adjustable light engines within a single rectangular frame. These fixtures boast a mechanism that allows both light sources to be pulled out of the ceiling and fully articulated with 360° rotation and high-angle tilt. This delivers twice the accent power with an unparalleled range of light aiming, ideal for lighting features across wide areas or long corridors.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Tenace Pullout - Frame Trimless | 1243 | 117L x 60W x 83H | 14 | 1280 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1243 | 117L x 60W x 83H | 14 | 1280 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1243 | 117L x 60W x 83H | 14 | 1280 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1243 | 117L x 60W x 83H | 14 | 1280 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1243 | 117L x 60W x 83H | 14 | 1280 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1243 | 117L x 60W x 83H | 14 | 1240 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1243 | 117L x 60W x 83H | 14 | 1240 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1243 | 117L x 60W x 83H | 14 | 1240 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1243 | 117L x 60W x 83H | 14 | 1240 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1243 | 117L x 60W x 83H | 14 | 1240 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1243 | 117L x 60W x 83H | 14 | 1210 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1243 | 117L x 60W x 83H | 14 | 1210 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1243 | 117L x 60W x 83H | 14 | 1210 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1243 | 117L x 60W x 83H | 14 | 1210 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1243 | 117L x 60W x 83H | 14 | 1210 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1245 | 164L x 84W x 115H | 24 | 2170 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1245 | 164L x 84W x 115H | 24 | 2170 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1245 | 164L x 84W x 115H | 24 | 2170 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1245 | 164L x 84W x 115H | 24 | 2170 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1245 | 164L x 84W x 115H | 24 | 2110 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1245 | 164L x 84W x 115H | 24 | 2170 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1245 | 164L x 84W x 115H | 24 | 2110 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1245 | 164L x 84W x 115H | 24 | 2110 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1245 | 164L x 84W x 115H | 24 | 2110 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1245 | 164L x 84W x 115H | 24 | 2060 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1245 | 164L x 84W x 115H | 24 | 2110 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1245 | 164L x 84W x 115H | 24 | 2060 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1245 | 164L x 84W x 115H | 24 | 2060 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1245 | 164L x 84W x 115H | 24 | 2060 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1245 | 164L x 84W x 115H | 24 | 2060 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|

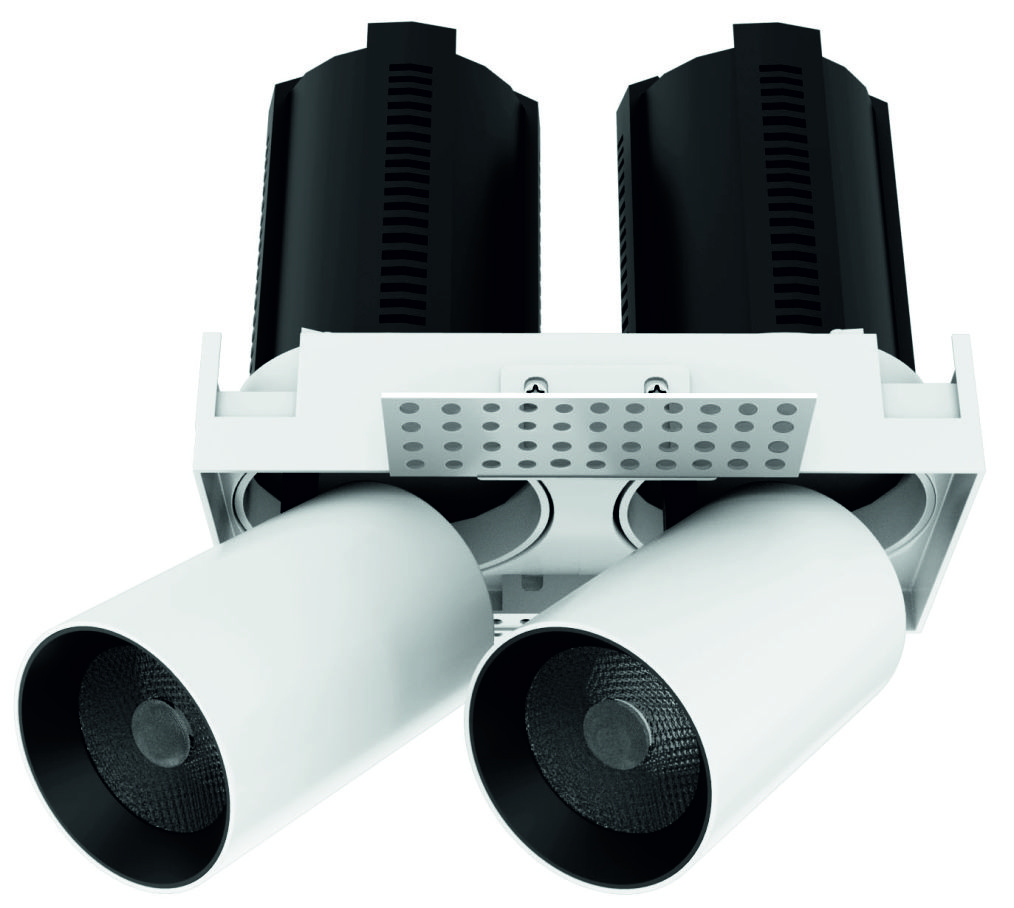

Tenace Pullout - Frame Trimless | 1247 | 209L x 94W x 145H | 50 | 4360 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1247 | 209L x 94W x 145H | 50 | 4360 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1247 | 209L x 94W x 145H | 50 | 4360 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1247 | 209L x 94W x 145H | 50 | 4250 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1247 | 209L x 94W x 145H | 50 | 4250 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1247 | 209L x 94W x 145H | 50 | 4250 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1247 | 209L x 94W x 145H | 50 | 4250 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1247 | 209L x 94W x 145H | 50 | 4250 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1247 | 209L x 94W x 145H | 50 | 4360 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1247 | 209L x 94W x 145H | 50 | 4360 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1247 | 209L x 94W x 145H | 50 | 4500 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1247 | 209L x 94W x 145H | 50 | 4500 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1247 | 209L x 94W x 145H | 50 | 4500 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1247 | 209L x 94W x 145H | 50 | 4500 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame Trimless | 1247 | 209L x 94W x 145H | 50 | 4500 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|

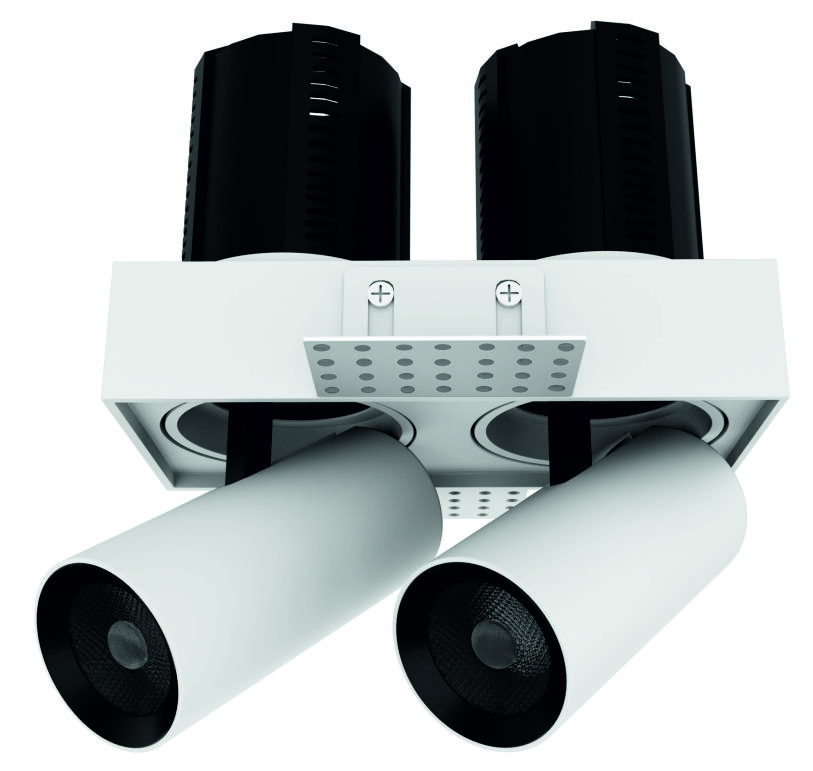

Tenace Pullout - Frame | 1242 | 130L x 72W x 83H | 14 | 1280 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1242 | 130L x 72W x 83H | 14 | 1280 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1242 | 130L x 72W x 83H | 14 | 1280 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1242 | 130L x 72W x 83H | 14 | 1280 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1242 | 130L x 72W x 83H | 14 | 1280 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1242 | 130L x 72W x 83H | 14 | 1240 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1242 | 130L x 72W x 83H | 14 | 1240 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1242 | 130L x 72W x 83H | 14 | 1240 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1242 | 130L x 72W x 83H | 14 | 1240 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1242 | 130L x 72W x 83H | 14 | 1240 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1242 | 130L x 72W x 83H | 14 | 1210 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1242 | 130L x 72W x 83H | 14 | 1210 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1242 | 130L x 72W x 83H | 14 | 1210 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1242 | 130L x 72W x 83H | 14 | 1210 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1242 | 130L x 72W x 83H | 14 | 1210 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1244 | 180L x 101W x 115H | 24 | 2170 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1244 | 180L x 101W x 115H | 24 | 2170 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1244 | 180L x 101W x 115H | 24 | 2170 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1244 | 180L x 101W x 115H | 24 | 2170 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1244 | 180L x 101W x 115H | 24 | 2170 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1244 | 180L x 101W x 115H | 24 | 2110 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1244 | 180L x 101W x 115H | 24 | 2110 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1244 | 180L x 101W x 115H | 24 | 2110 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1244 | 180L x 101W x 115H | 24 | 2110 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1244 | 180L x 101W x 115H | 24 | 2110 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1244 | 180L x 101W x 115H | 24 | 2060 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1244 | 180L x 101W x 115H | 24 | 2060 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1244 | 180L x 101W x 115H | 24 | 2060 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1244 | 180L x 101W x 115H | 24 | 2060 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1244 | 180L x 101W x 115H | 24 | 2060 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|

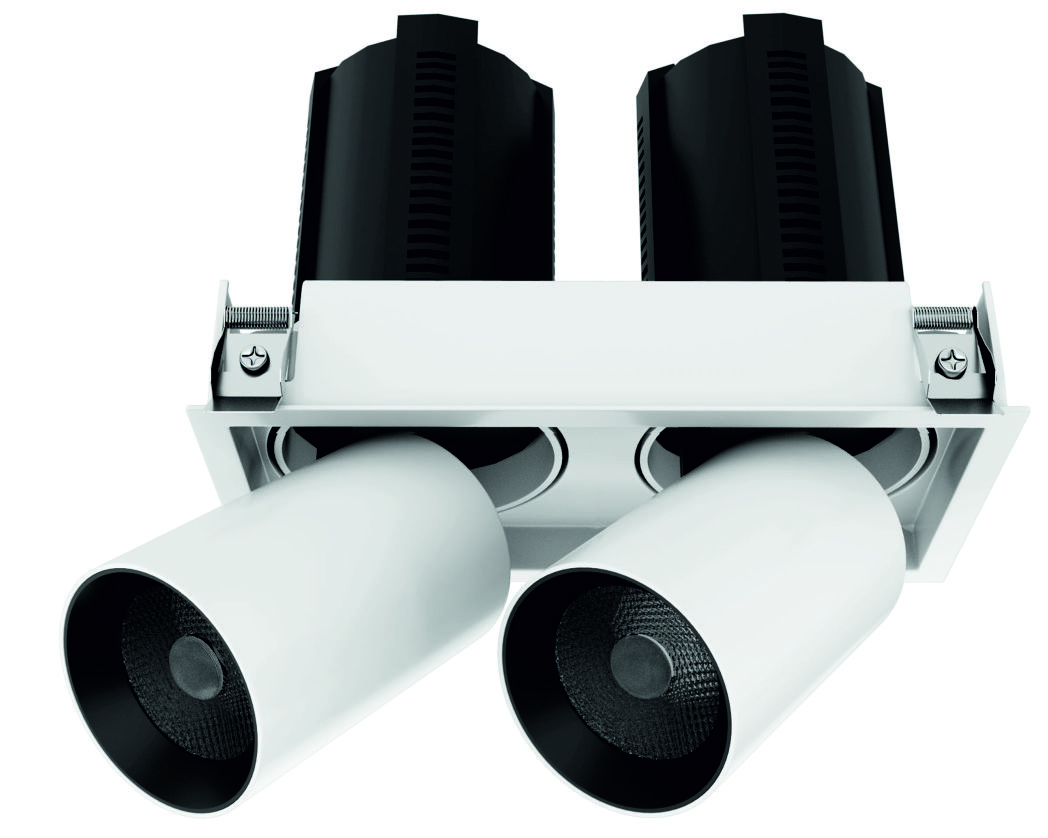

Tenace Pullout - Frame | 1246 | 225L x 110W x 145H | 50 | 4500 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1246 | 225L x 110W x 145H | 50 | 4500 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1246 | 225L x 110W x 145H | 50 | 4500 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1246 | 225L x 110W x 145H | 50 | 4500 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1246 | 225L x 110W x 145H | 50 | 4500 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1246 | 225L x 110W x 145H | 50 | 4360 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1246 | 225L x 110W x 145H | 50 | 4360 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1246 | 225L x 110W x 145H | 50 | 4360 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1246 | 225L x 110W x 145H | 50 | 4360 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1246 | 225L x 110W x 145H | 50 | 4250 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1246 | 225L x 110W x 145H | 50 | 4360 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1246 | 225L x 110W x 145H | 50 | 4250 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1246 | 225L x 110W x 145H | 50 | 4250 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1246 | 225L x 110W x 145H | 50 | 4250 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Pullout - Frame | 1246 | 225L x 110W x 145H | 50 | 4250 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
