Tenace Round XSA

Interior Spaces

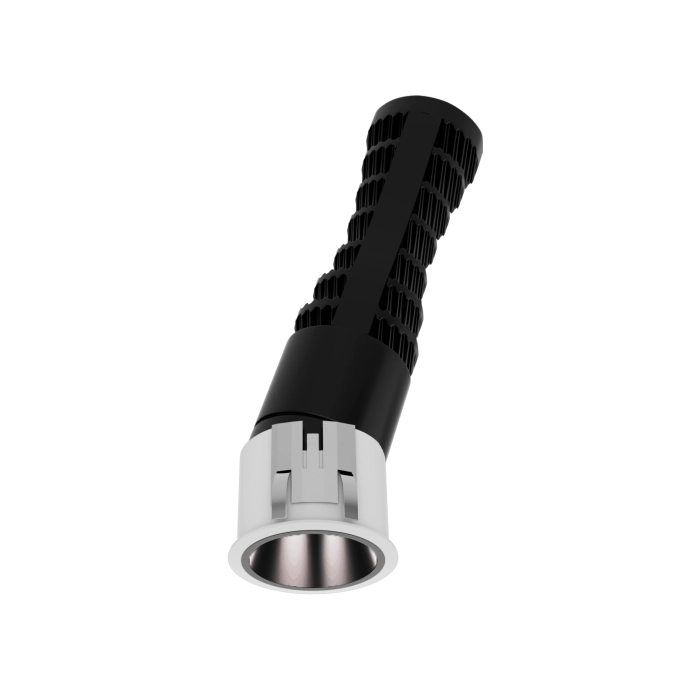

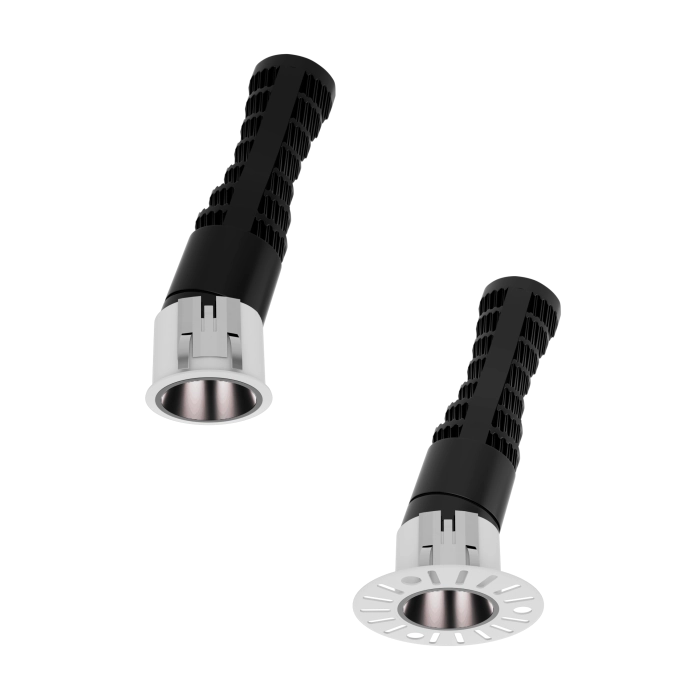

Tenace Round XSA models (Trim #1054 / Trim less #1055) are premium directional downlights that combine the supreme anti-glare properties of the Tenace family with full directional flexibility. These adjustable fixtures maintain the extremely small Ø38mm trim profile and the deep-recessed light source, resulting in an unmatched UGR <13 rating making this fixture is the ultimate tool for precise accent lighting in galleries, boutique displays, or high-end residential interiors where a powerful, movable light is needed, but the light source itself must remain hidden and completely stress-free.

Enquire Now

Specifications

Product Image
Wattage
7W
Lumen
630 lm - 665 lm
Beam Angle
15° / 24° / 38°
UGR
<14
IP Rating
IP65
check icon
Deep Recessed Design
Engineered with a deep-set light source to fully shield the Array LED from the viewing angle, guaranteeing superior visual comfort.
check icon
Trim/Trimless Felxibility

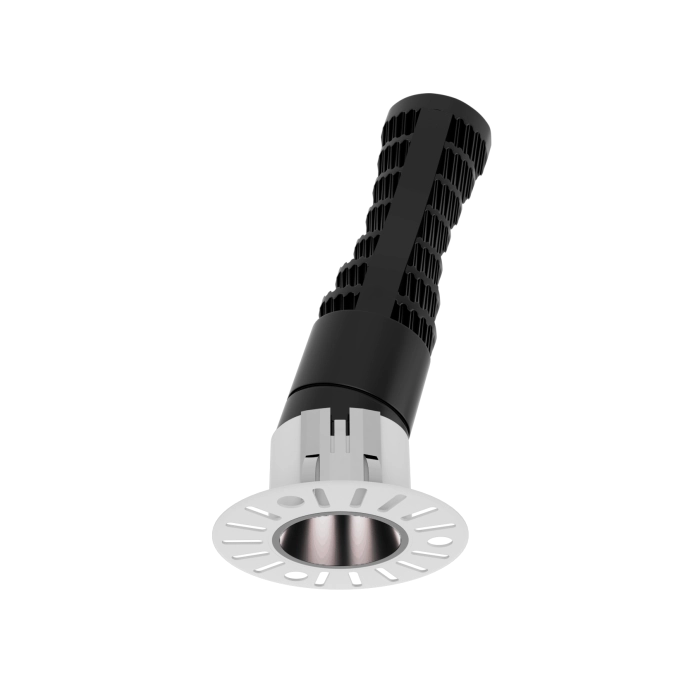

Available with a trim for a clean finish/chromed edge or a trimless option for seamless integration into the ceiling.
check icon
Directional Tilt Control
Complete flexibility to adjust the angle of the lighting source with tilt and rotate functionality.
check icon
Micro-Sized Profile
The extremely small Ø38mm trim size ensures discreet integration, maximizing focus on the illuminated object rather than the fixture itself.
check icon
IP65 Option
As part of our premium downlight range, this fixture is also available in an IP65 option for lighting in weather affected areas.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Tenace - Round XSA Trimless 1055 Dia 28 x H 100mm 7 665 4000 95 38 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA Trimless 1055 Dia 28 x H 100mm 7 665 4000 95 24 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA Trimless 1055 Dia 28 x H 100mm 7 665 4000 95 15 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA Trimless 1055 Dia 28 x H 100mm 7 645 3000 95 38 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA Trimless 1055 Dia 28 x H 100mm 7 645 3000 95 24 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA Trimless 1055 Dia 28 x H 100mm 7 645 3000 95 15 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA Trimless 1055 Dia 28 x H 100mm 7 630 2700 95 38 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA Trimless 1055 Dia 28 x H 100mm 7 630 2700 95 24 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA Trimless 1055 Dia 28 x H 100mm 7 630 2700 95 15 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA 1054 Dia 38 x H 100mm 7 665 4000 95 38 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA 1054 Dia 38 x H 100mm 7 665 4000 95 24 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA 1054 Dia 38 x H 100mm 7 665 4000 95 15 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA 1054 Dia 38 x H 100mm 7 645 3000 95 38 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA 1054 Dia 38 x H 100mm 7 645 3000 95 24 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA 1054 Dia 38 x H 100mm 7 645 3000 95 15 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA 1054 Dia 38 x H 100mm 7 630 2700 95 38 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA 1054 Dia 38 x H 100mm 7 630 2700 95 24 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSA 1054 Dia 38 x H 100mm 7 630 2700 95 15 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
