Tenace Round XSF

Interior Spaces

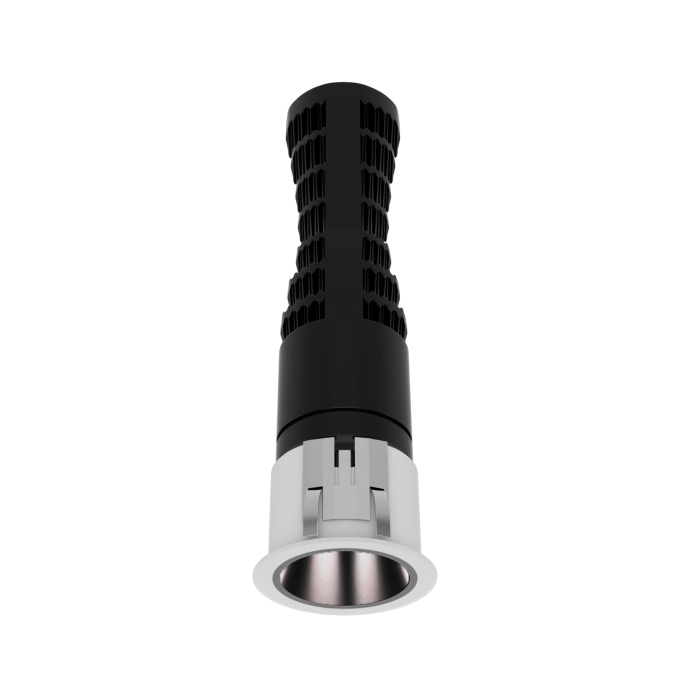

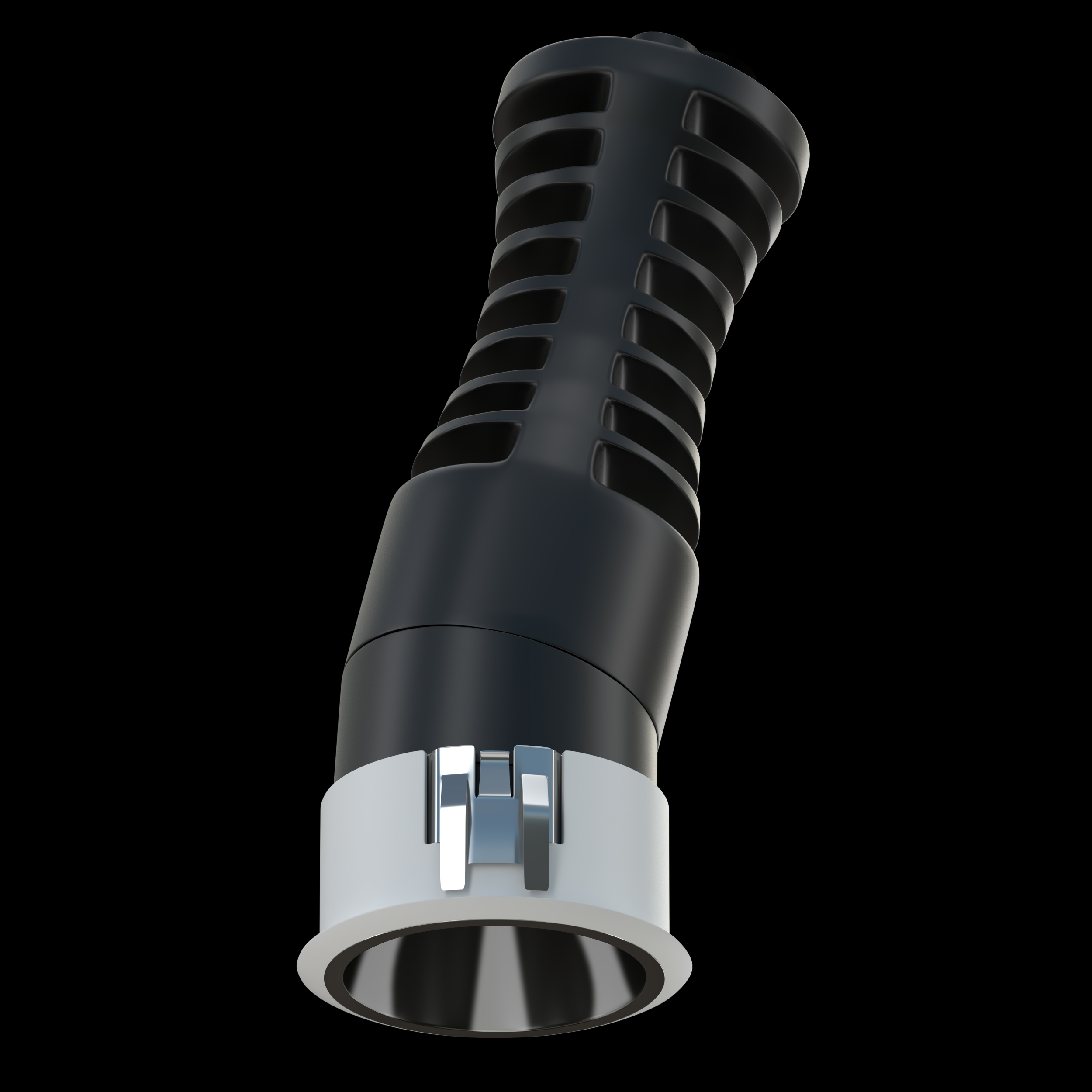

Tenace Round XSF is the smallest and most discreet fixture in the premium Tenace range, designed for architects and designers who prioritize uncompromised visual comfort and color fidelity. Its deep-set reflector and tiny Ø38mm trim ensure the light source is virtually invisible, delivering powerful illumination with an ultra-low UGR <16. This fixture is the ultimate choice for spaces where the quality of light is paramount, and the source itself must remain a subtle, stress-free element of the architecture.

Enquire Now

Specifications

Product Image
Wattage
7W
Lumen
630 lm - 665 lm
Beam Angle
15° / 24° / 38°
UGR
<14
IP Rating
IP65
check icon
Deep Recessed Design
Engineered with a deep-set light source to fully shield the Array LED from the viewing angle, guaranteeing superior visual comfort.
check icon
Flexible Application

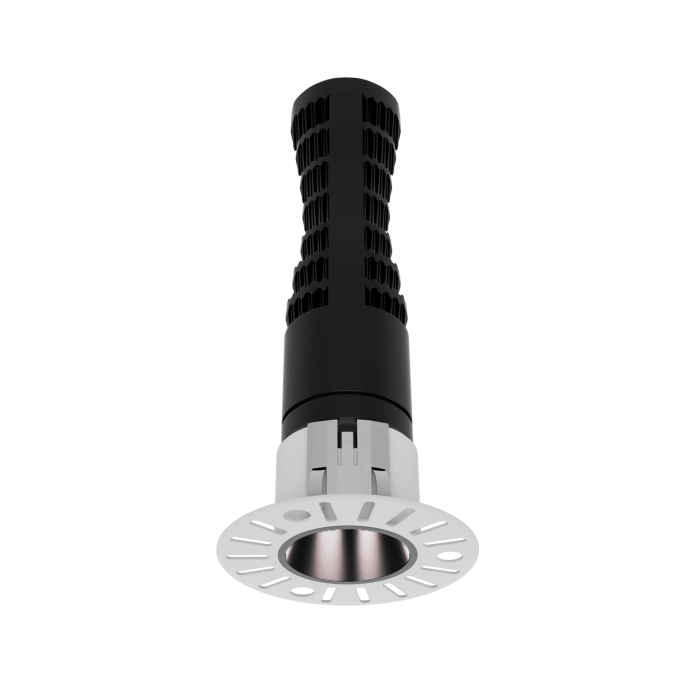

A flexible Trim/Trimless option allows the fixture to integrate seamlessly into the any ceiling application, making it highly discreet and architecturally subtle.
check icon
High Efficacy Output
Despite its small size, it delivers significant output—up to 425 lumens—making it effective for accenting and focused lighting applications.
check icon
IP65 Option
An all weather IP65 option is available for this fixture. Ideal for bathroom and other water affected areas.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Tenace - Round XSF Trimless 1053 Dia 28 x H 95mm 7 665 4000 95 38 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF Trimless 1053 Dia 28 x H 95mm 7 665 4000 95 24 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF Trimless 1053 Dia 28 x H 95mm 7 665 4000 95 15 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF Trimless 1053 Dia 28 x H 95mm 7 645 3000 95 38 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF Trimless 1053 Dia 28 x H 95mm 7 645 3000 95 24 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF Trimless 1053 Dia 28 x H 95mm 7 645 3000 95 15 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF Trimless 1053 Dia 28 x H 95mm 7 630 2700 95 38 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF Trimless 1053 Dia 28 x H 95mm 7 630 2700 95 24 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF Trimless 1053 Dia 28 x H 95mm 7 630 2700 95 15 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF 1052 Dia 38 x H 95mm 7 665 4000 95 38 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF 1052 Dia 38 x H 95mm 7 665 4000 95 24 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF 1052 Dia 38 x H 95mm 7 665 4000 95 15 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF 1052 Dia 38 x H 95mm 7 645 3000 95 38 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF 1052 Dia 38 x H 95mm 7 645 3000 95 24 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF 1052 Dia 38 x H 95mm 7 645 3000 95 15 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF 1052 Dia 38 x H 95mm 7 630 2700 95 38 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF 1052 Dia 38 x H 95mm 7 630 2700 95 24 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace - Round XSF 1052 Dia 38 x H 95mm 7 630 2700 95 15 IP44/IP65 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
