Protected Swivel Mechanism
Features a robust internal mechanism that enables 360° Rotation and high-angle Tilt while providing added protection to the light engine, making it durable for dynamic applications.

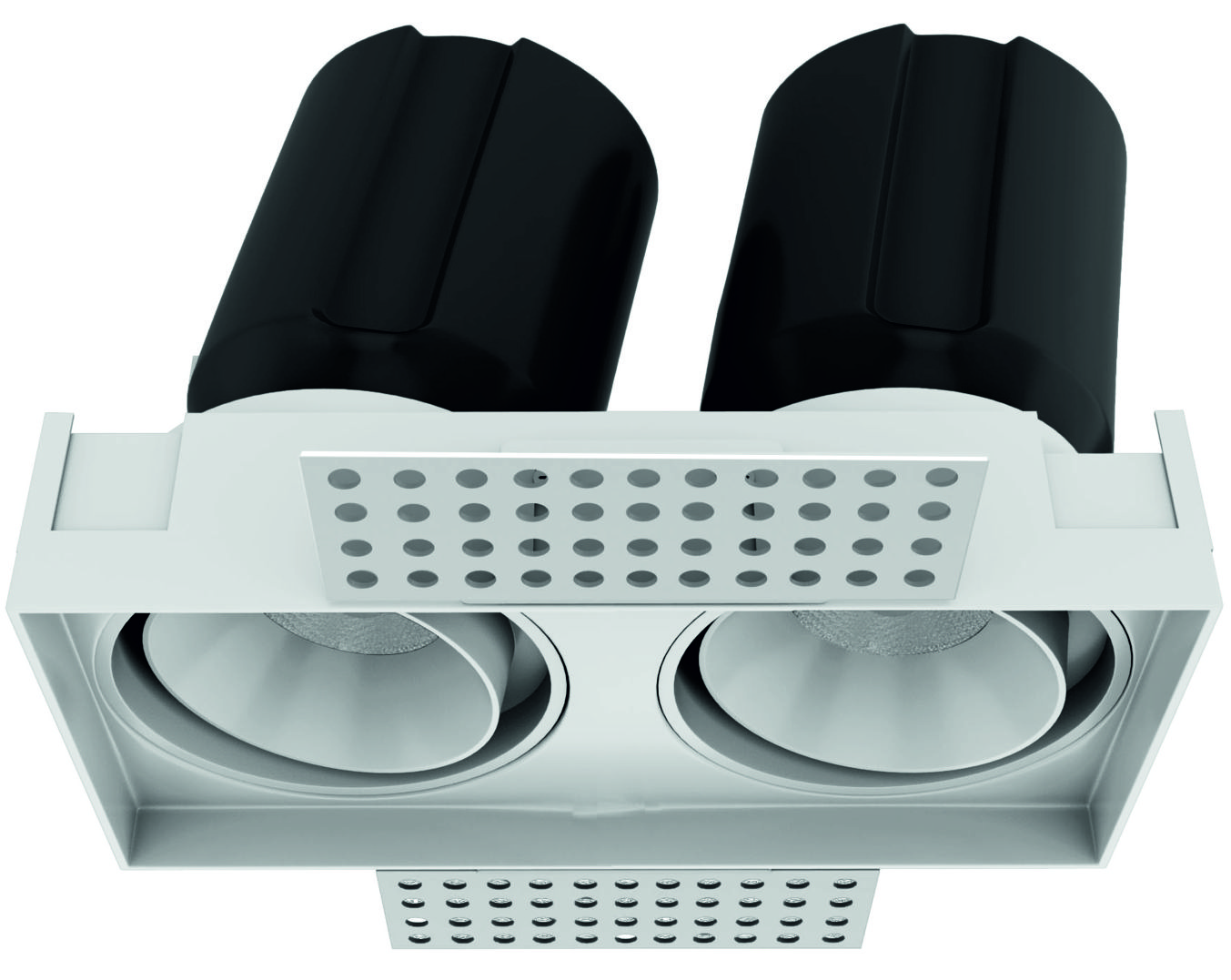

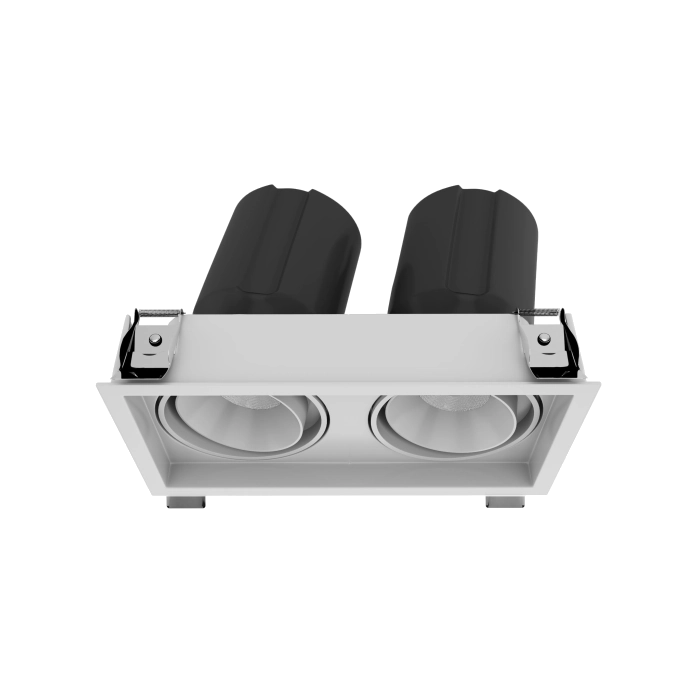

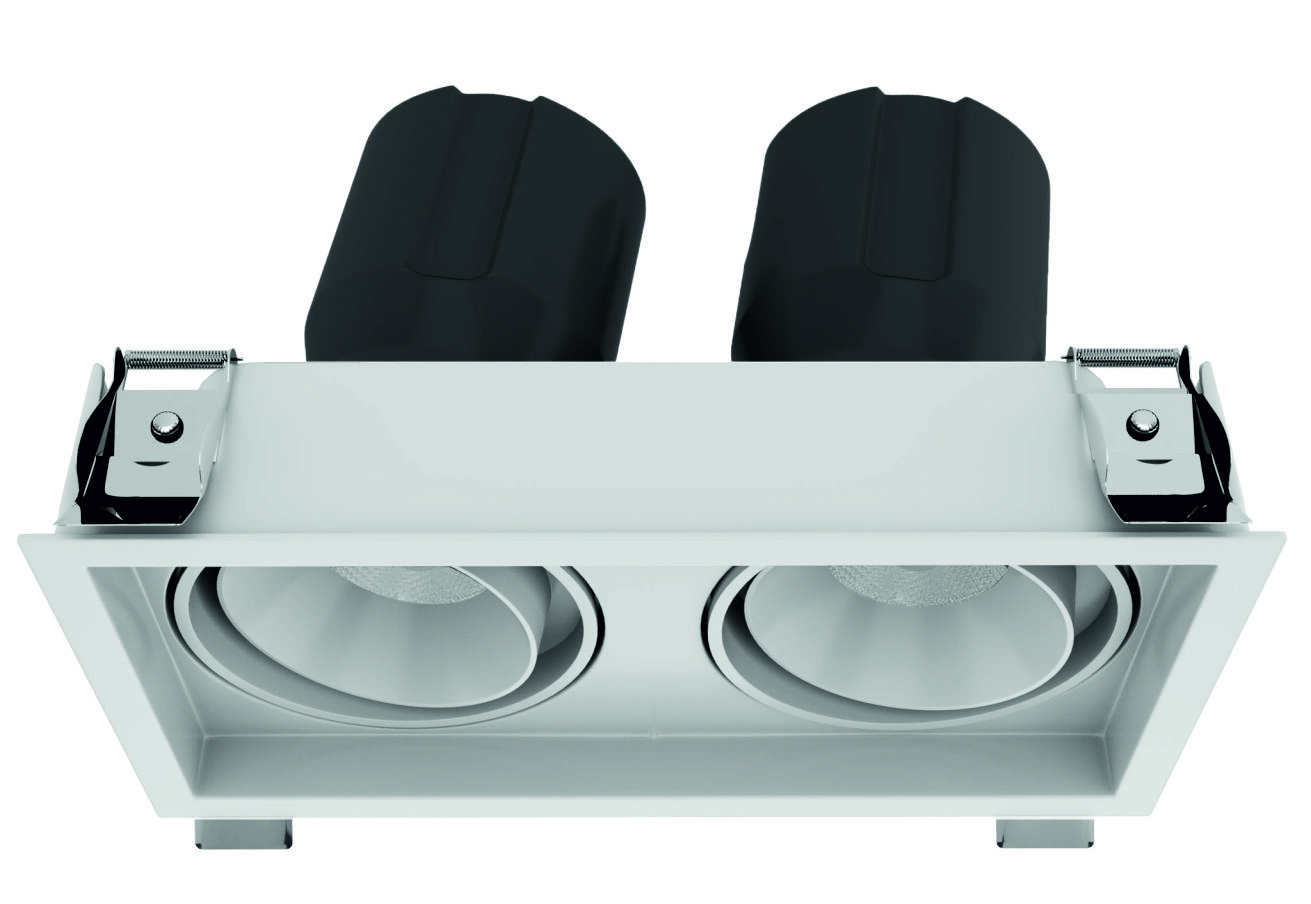

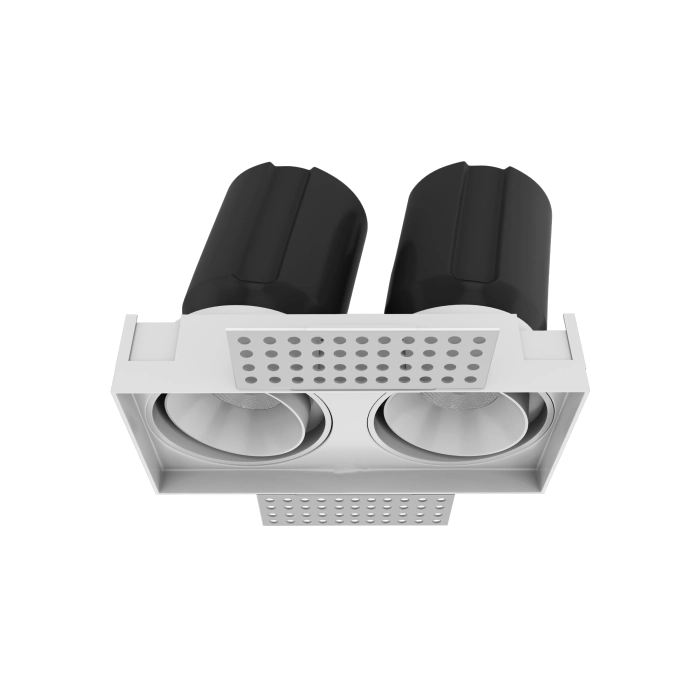

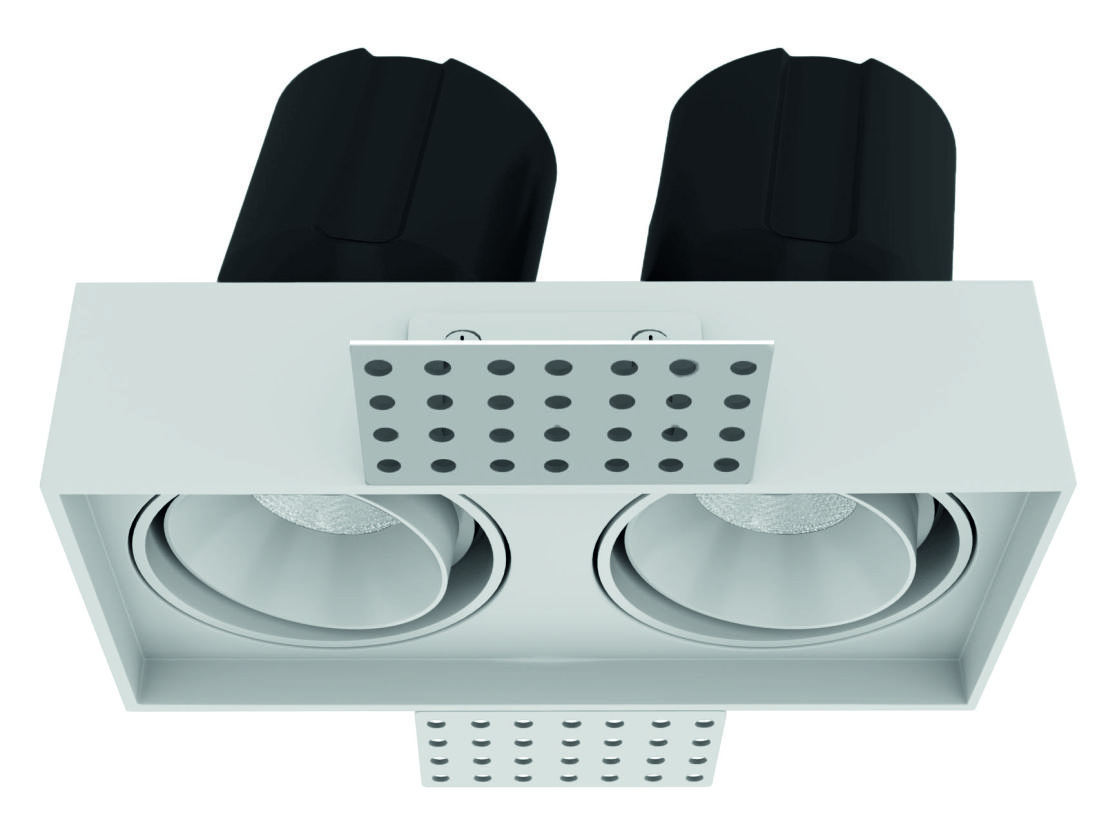

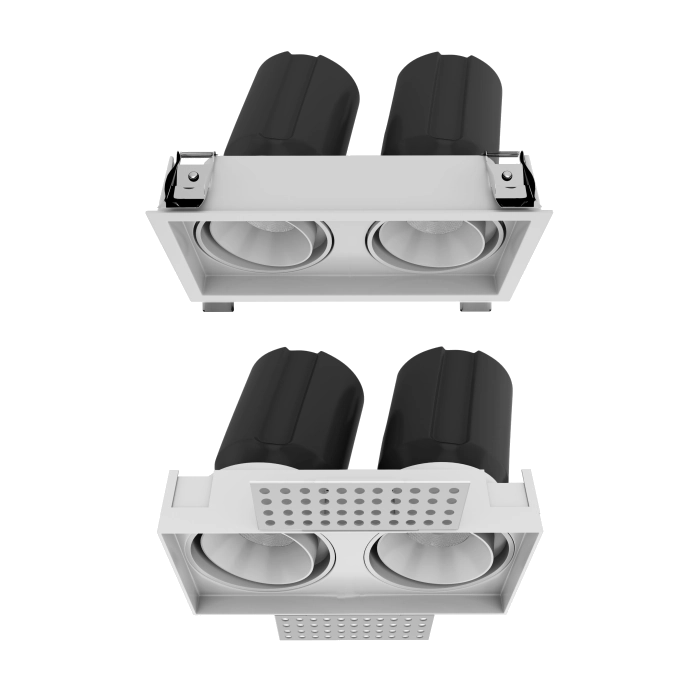

Tenace Swivel Frame models (Trim/Trimless) are high-performance linear downlights designed to house two adjustable light engines within a single rectangular frame. These fixtures feature two independent swivel mechanisms that allow each powerful Array LED (Typ CRI 95) to be aimed with full 360° rotation and high-angle tilt. The multi-module design delivers twice the accent power while the deep-recessed optics maintain the signature stress-free lighting experience.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Tenace Swivel - Frame Trimless | 1207 | 120L x 54W x 89H | 14 | 1240 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1207 | 120L x 54W x 89H | 14 | 1240 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1207 | 120L x 54W x 89H | 14 | 1240 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1207 | 120L x 54W x 89H | 14 | 1240 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1207 | 120L x 54W x 89H | 14 | 1240 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1207 | 120L x 54W x 89H | 14 | 1200 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1207 | 120L x 54W x 89H | 14 | 1200 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1207 | 120L x 54W x 89H | 14 | 1200 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1207 | 120L x 54W x 89H | 14 | 1200 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1207 | 120L x 54W x 89H | 14 | 1200 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1207 | 120L x 54W x 89H | 14 | 1170 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1207 | 120L x 54W x 89H | 14 | 1170 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1207 | 120L x 54W x 89H | 14 | 1170 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1207 | 120L x 54W x 89H | 14 | 1170 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1207 | 120L x 54W x 89H | 14 | 1170 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 40 | 3490 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 40 | 3490 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 40 | 3490 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 40 | 3490 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 40 | 3490 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 40 | 3380 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 40 | 3380 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 40 | 3380 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 40 | 3380 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 40 | 3380 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 40 | 3300 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 40 | 3300 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 40 | 3300 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 40 | 3300 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 40 | 3300 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 24 | 2100 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 24 | 2100 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 24 | 2100 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 24 | 2100 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 24 | 2100 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 24 | 2030 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 24 | 2030 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 24 | 2030 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 24 | 2030 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 24 | 2030 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 24 | 1980 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 24 | 1980 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 24 | 1980 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 24 | 1980 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1210 | 164L x 74W x 123H | 24 | 1980 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1213 | 207L x 94W x 155H | 70 | 6130 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1213 | 207L x 94W x 155H | 70 | 6130 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1213 | 207L x 94W x 155H | 70 | 6130 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1213 | 207L x 94W x 155H | 70 | 6130 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1213 | 207L x 94W x 155H | 70 | 6130 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1213 | 207L x 94W x 155H | 70 | 5960 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1213 | 207L x 94W x 155H | 70 | 5960 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1213 | 207L x 94W x 155H | 70 | 5960 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1213 | 207L x 94W x 155H | 70 | 5960 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1213 | 207L x 94W x 155H | 70 | 5960 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1213 | 207L x 94W x 155H | 70 | 5810 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1213 | 207L x 94W x 155H | 70 | 5810 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1213 | 207L x 94W x 155H | 70 | 5810 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1213 | 207L x 94W x 155H | 70 | 5810 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame Trimless | 1213 | 207L x 94W x 155H | 70 | 5810 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1206 | 129L x 65W x 89H | 14 | 1240 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1206 | 129L x 65W x 89H | 14 | 1240 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1206 | 129L x 65W x 89H | 14 | 1240 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1206 | 129L x 65W x 89H | 14 | 1240 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1206 | 129L x 65W x 89H | 14 | 1240 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1206 | 129L x 65W x 89H | 14 | 1200 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1206 | 129L x 65W x 89H | 14 | 1200 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1206 | 129L x 65W x 89H | 14 | 1200 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1206 | 129L x 65W x 89H | 14 | 1200 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1206 | 129L x 65W x 89H | 14 | 1200 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1206 | 129L x 65W x 89H | 14 | 1170 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1206 | 129L x 65W x 89H | 14 | 1170 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1206 | 129L x 65W x 89H | 14 | 1170 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1206 | 129L x 65W x 89H | 14 | 1170 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1206 | 129L x 65W x 89H | 14 | 1170 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 40 | 3490 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 40 | 3490 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 40 | 3490 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 40 | 3490 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 40 | 3490 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 40 | 3380 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 40 | 3380 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 40 | 3380 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 40 | 3380 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 40 | 3380 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 40 | 3300 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 40 | 3300 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 40 | 3300 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 40 | 3300 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 40 | 3300 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 24 | 2100 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 24 | 2100 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 24 | 2100 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 24 | 2100 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 24 | 2100 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 24 | 2030 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 24 | 2030 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 24 | 2030 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 24 | 2030 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 24 | 2030 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 24 | 1980 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 24 | 1980 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 24 | 1980 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 24 | 1980 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1209 | 179L x 90W x 123H | 24 | 1980 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1212 | 223L x 108W x 155H | 70 | 6130 | 4000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1212 | 223L x 108W x 155H | 70 | 6130 | 4000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1212 | 223L x 108W x 155H | 70 | 6130 | 4000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1212 | 223L x 108W x 155H | 70 | 6130 | 4000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1212 | 223L x 108W x 155H | 70 | 6130 | 4000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1212 | 223L x 108W x 155H | 70 | 5960 | 3000 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1212 | 223L x 108W x 155H | 70 | 5960 | 3000 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1212 | 223L x 108W x 155H | 70 | 5960 | 3000 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1212 | 223L x 108W x 155H | 70 | 5960 | 3000 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1212 | 223L x 108W x 155H | 70 | 5960 | 3000 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1212 | 223L x 108W x 155H | 70 | 5810 | 2700 | 95 | 60 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1212 | 223L x 108W x 155H | 70 | 5810 | 2700 | 95 | 38 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1212 | 223L x 108W x 155H | 70 | 5810 | 2700 | 95 | 24 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1212 | 223L x 108W x 155H | 70 | 5810 | 2700 | 95 | 15 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
|
|
Tenace Swivel - Frame | 1212 | 223L x 108W x 155H | 70 | 5810 | 2700 | 95 | 10 | IP20 | Diffused Lens/Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable | Download | Download | Download | Download |
