Tenace Swivel Square

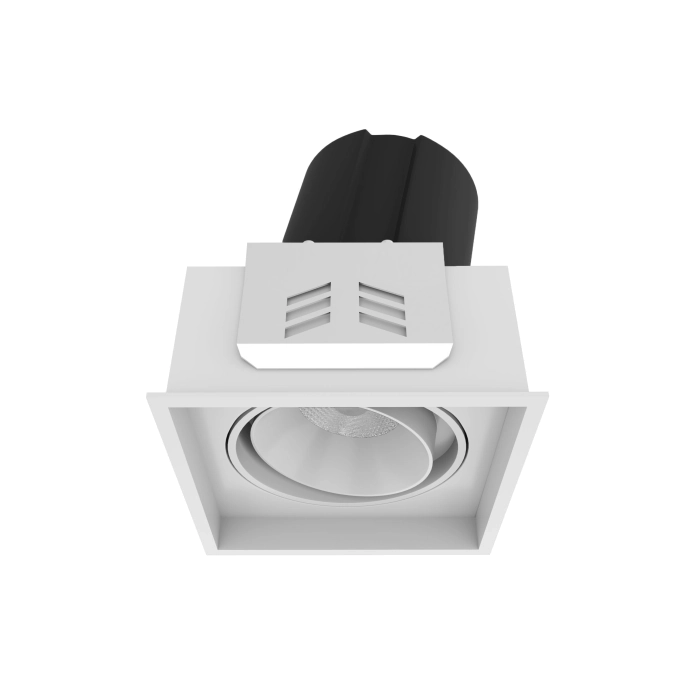

  • Gallery Image

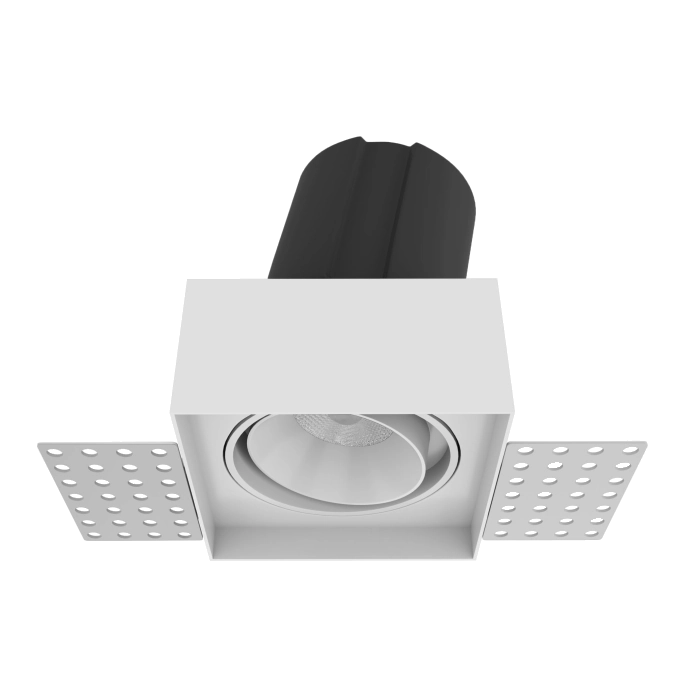

  • Gallery Image

Tenace Swivel Square

Interior Spaces

Tenace Swivel Square models (Trim #1200 / Trimless #1201) are the premier choice for adjustable downlights requiring a clean square aesthetic and robust internal protection. These fixtures house a powerful Array LED (Typ CRI 95) within a sophisticated, protected mechanism that allows for both 360° rotation and high-angle tilt. This capability enables precise aiming across any point in a room while the deep-recessed optics guarantee a visually stress-free environment.

Enquire Now

Specifications

Product Image
Wattage
7W - 35W
Lumen
585 lm - 3065 lm
Beam Angle
10° / 15° / 24° / 38° / 60°
UGR
<19
IP Rating
IP20
check icon
Protected Swivel Mechanism
Features a robust internal mechanism that enables 360° Rotation and high-angle Tilt while providing added protection to the light engine, making it durable for dynamic applications.
check icon

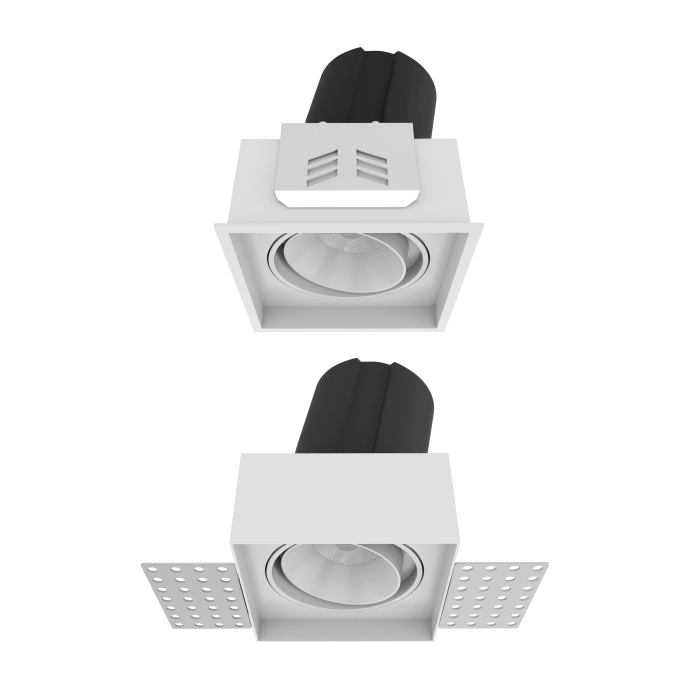

Trim/Trimless Versatility
Available Trim for a defined, finished edge or Trimless for seamless, plaster-in integration into the ceiling.
check icon
Clean Square Geometry
Provides a distinct Square form factor that aligns perfectly with orthogonal architectural elements, offering a modern, geometric alternative to round fixtures.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual

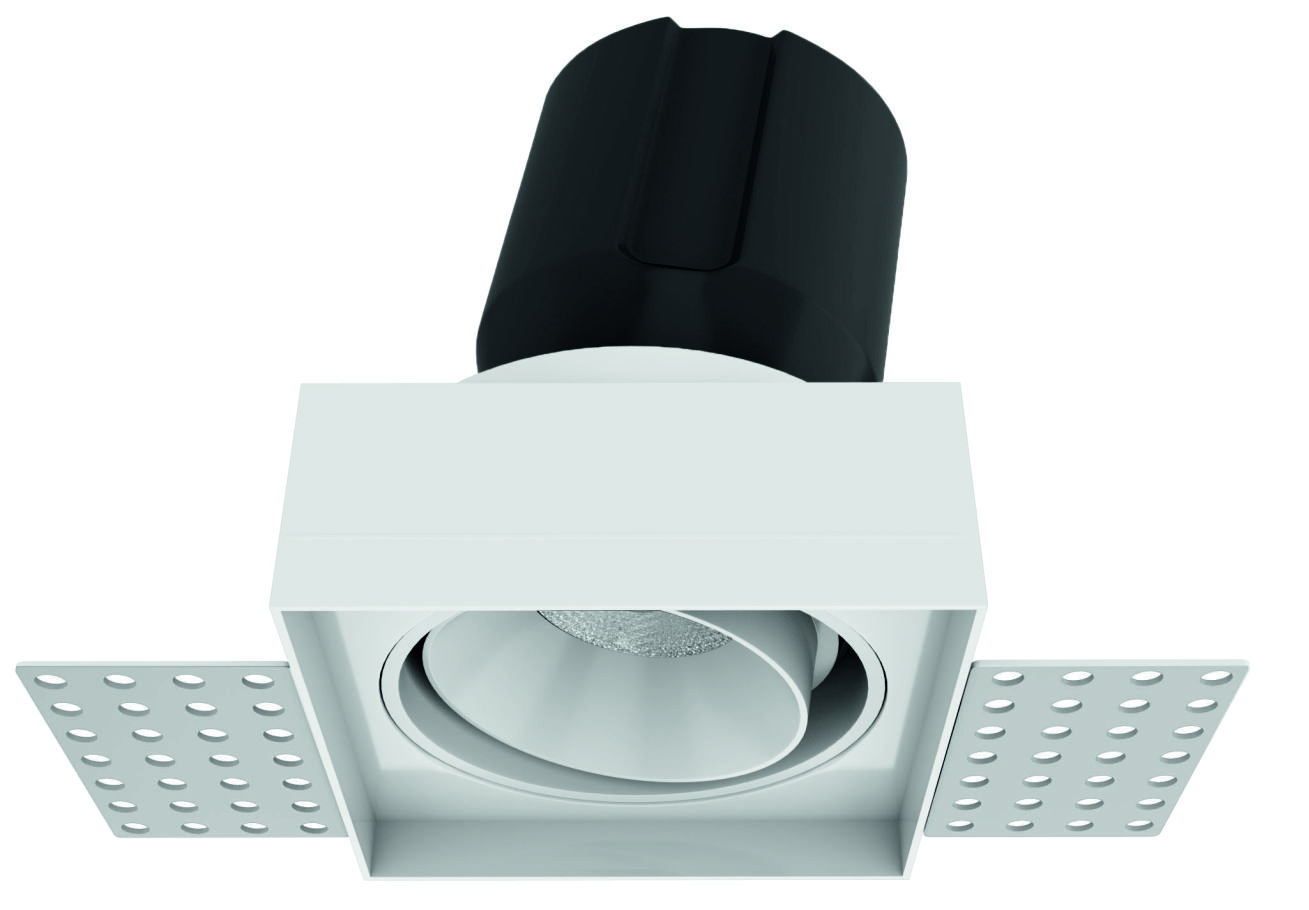

product-img Tenace Swivel - Square Trimless 1198 53L x 53W x 95H 7 620 4000 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1198 53L x 53W x 95H 7 620 4000 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1198 53L x 53W x 95H 7 620 4000 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1198 53L x 53W x 95H 7 620 4000 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1198 53L x 53W x 95H 7 620 4000 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1198 53L x 53W x 95H 7 600 3000 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1198 53L x 53W x 95H 7 600 3000 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1198 53L x 53W x 95H 7 600 3000 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1198 53L x 53W x 95H 7 600 3000 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1198 53L x 53W x 95H 7 600 3000 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1198 53L x 53W x 95H 7 585 2700 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1198 53L x 53W x 95H 7 585 2700 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1198 53L x 53W x 95H 7 585 2700 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1198 53L x 53W x 95H 7 585 2700 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1198 53L x 53W x 95H 7 585 2700 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 20 1745 4000 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 20 1745 4000 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 20 1745 4000 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 20 1745 4000 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 20 1690 3000 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 20 1745 4000 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 20 1690 3000 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 20 1690 3000 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 20 1690 3000 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 20 1690 3000 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 20 1650 2700 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 20 1650 2700 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 20 1650 2700 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 20 1650 2700 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 20 1650 2700 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 12 1050 4000 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 12 1050 4000 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 12 1050 4000 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 12 1050 4000 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 12 1050 4000 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 12 1015 3000 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 12 1015 3000 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 12 1015 3000 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 12 1015 3000 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 12 1015 3000 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 12 990 2700 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 12 990 2700 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 12 990 2700 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 12 990 2700 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1201 73L x 73W x 123H 12 990 2700 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download

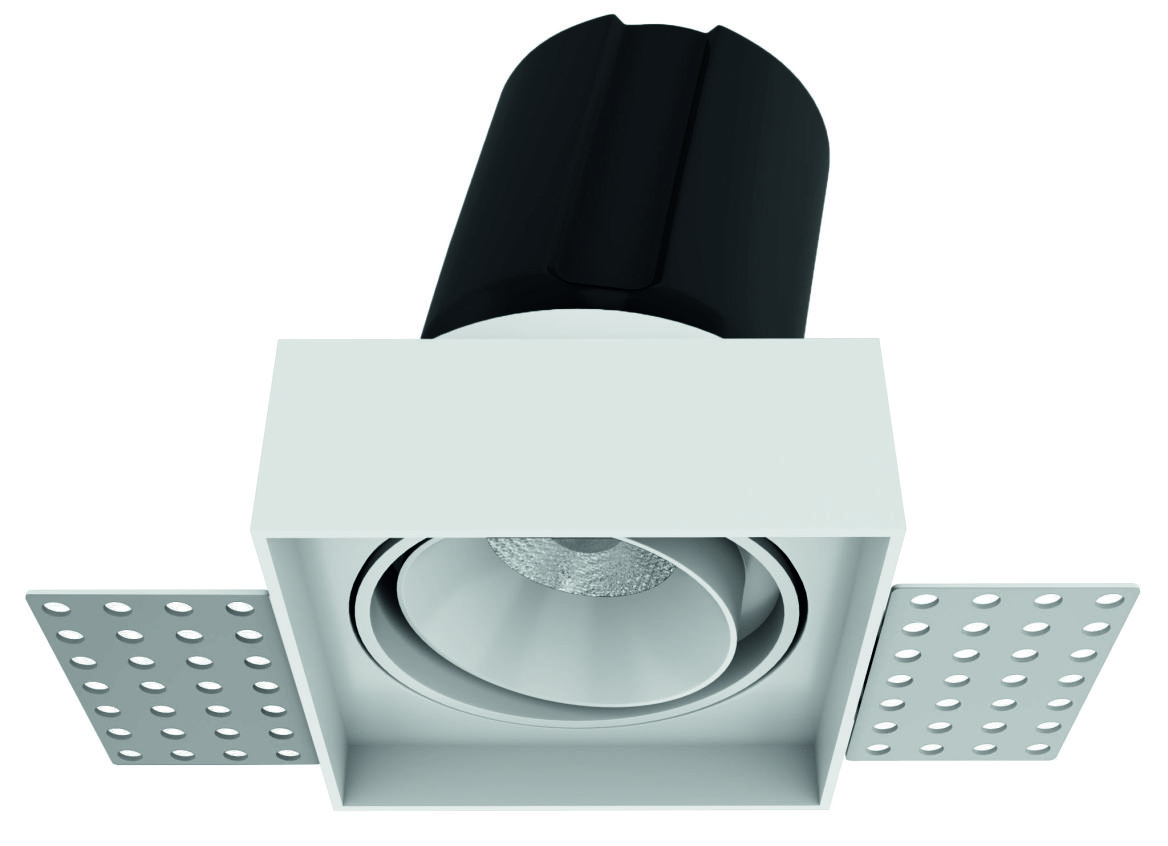

product-img Tenace Swivel - Square Trimless 1204 93L x 93W x 158H 35 3065 4000 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1204 93L x 93W x 158H 35 3065 4000 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1204 93L x 93W x 158H 35 3065 4000 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1204 93L x 93W x 158H 35 3065 4000 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1204 93L x 93W x 158H 35 3065 4000 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1204 93L x 93W x 158H 35 2980 3000 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1204 93L x 93W x 158H 35 2980 3000 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1204 93L x 93W x 158H 35 2980 3000 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1204 93L x 93W x 158H 35 2980 3000 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1204 93L x 93W x 158H 35 2980 3000 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1204 93L x 93W x 158H 35 2905 2700 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1204 93L x 93W x 158H 35 2905 2700 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1204 93L x 93W x 158H 35 2905 2700 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1204 93L x 93W x 158H 35 2905 2700 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square Trimless 1204 93L x 93W x 158H 35 2905 2700 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download

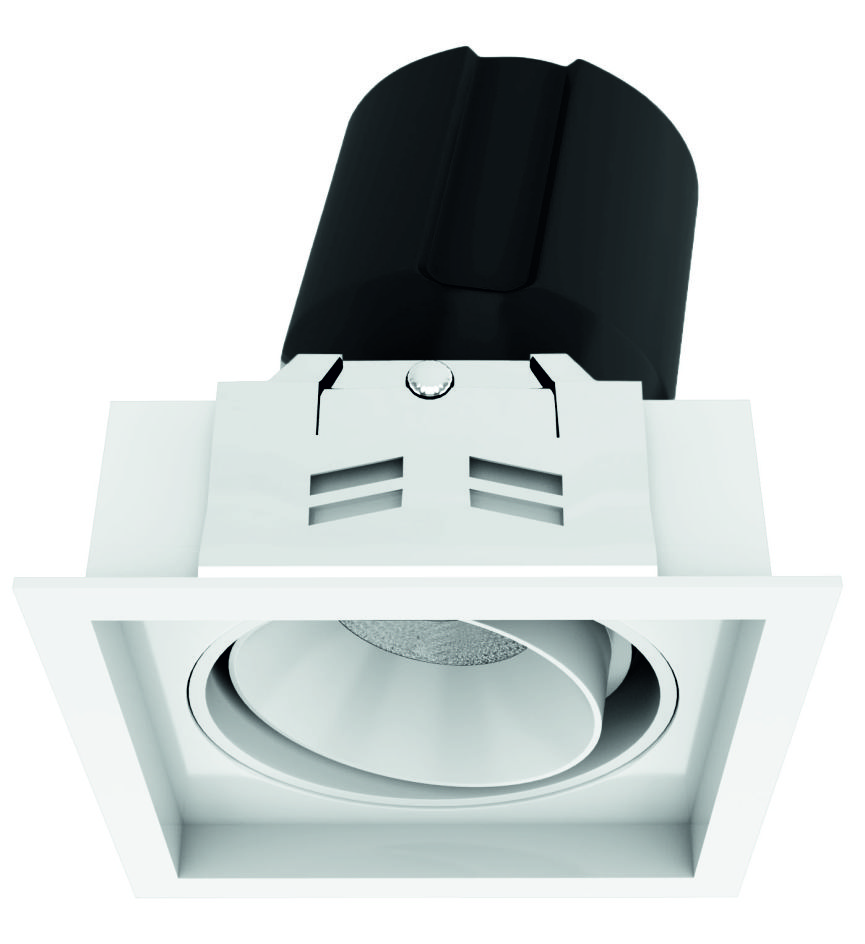

product-img Tenace Swivel - Square 1197 63L x 63W x 95H 7 620 4000 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1197 63L x 63W x 95H 7 620 4000 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1197 63L x 63W x 95H 7 620 4000 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1197 63L x 63W x 95H 7 620 4000 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1197 63L x 63W x 95H 7 620 4000 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1197 63L x 63W x 95H 7 600 3000 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1197 63L x 63W x 95H 7 600 3000 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1197 63L x 63W x 95H 7 600 3000 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1197 63L x 63W x 95H 7 600 3000 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1197 63L x 63W x 95H 7 600 3000 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1197 63L x 63W x 95H 7 585 2700 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1197 63L x 63W x 95H 7 585 2700 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1197 63L x 63W x 95H 7 585 2700 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1197 63L x 63W x 95H 7 585 2700 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1197 63L x 63W x 95H 7 585 2700 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 20 1745 4000 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 20 1745 4000 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 20 1745 4000 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 20 1745 4000 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 20 1745 4000 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 20 1690 3000 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 20 1690 3000 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 20 1690 3000 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 20 1690 3000 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 20 1690 3000 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 20 1650 2700 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 20 1650 2700 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 20 1650 2700 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 20 1650 2700 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 20 1650 2700 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 12 1050 4000 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 12 1050 4000 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 12 1050 4000 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 12 1050 4000 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 12 1050 4000 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 12 1015 3000 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 12 1015 3000 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 12 1015 3000 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 12 1015 3000 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 12 1015 3000 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 12 990 2700 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 12 990 2700 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 12 990 2700 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 12 990 2700 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1200 84L x 84W x 123H 12 990 2700 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download

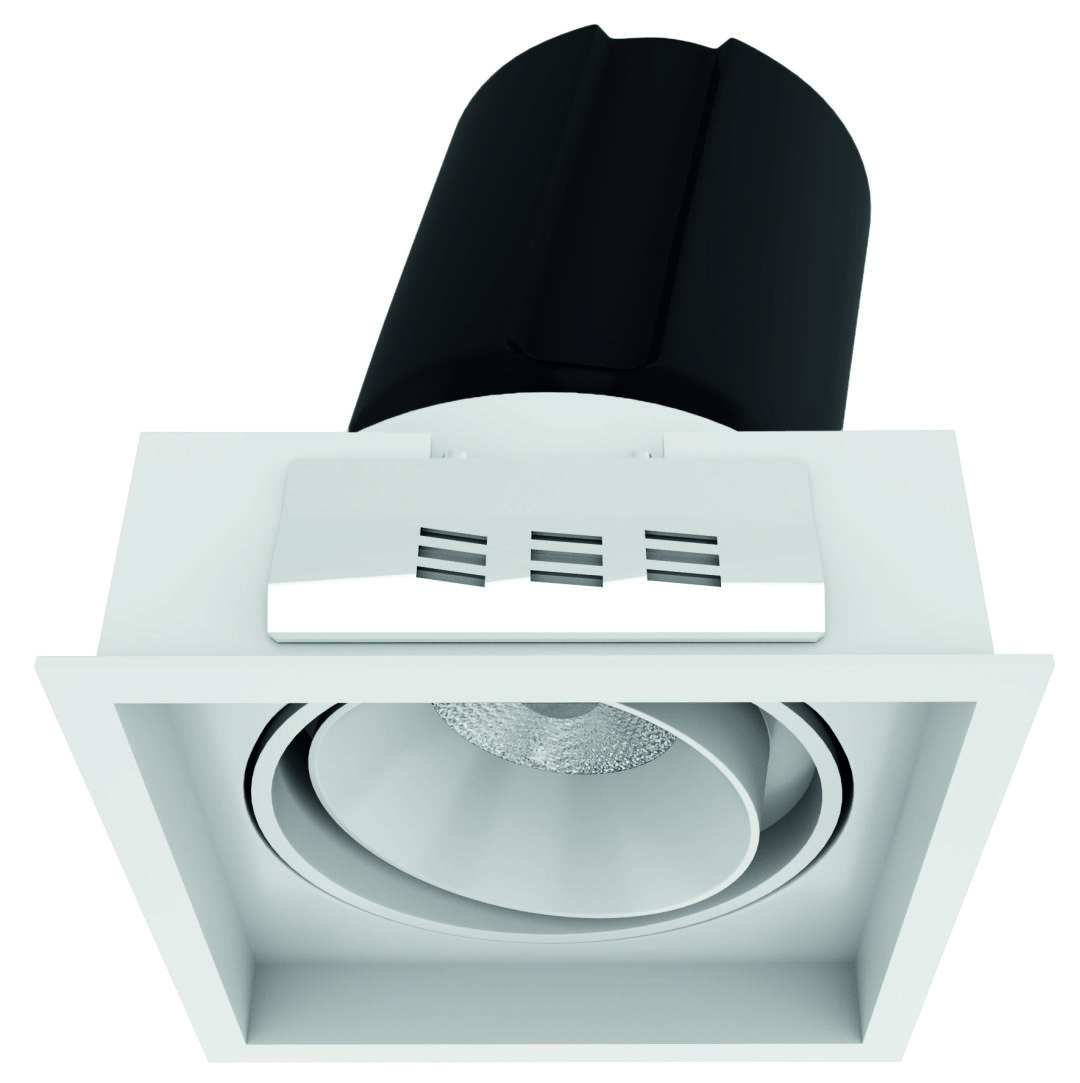

product-img Tenace Swivel - Square 1203 113L x 113W x 158H 35 3065 4000 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1203 113L x 113W x 158H 35 3065 4000 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1203 113L x 113W x 158H 35 3065 4000 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1203 113L x 113W x 158H 35 3065 4000 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1203 113L x 113W x 158H 35 3065 4000 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1203 113L x 113W x 158H 35 2980 3000 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1203 113L x 113W x 158H 35 2980 3000 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1203 113L x 113W x 158H 35 2980 3000 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1203 113L x 113W x 158H 35 2980 3000 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1203 113L x 113W x 158H 35 2980 3000 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1203 113L x 113W x 158H 35 2905 2700 95 60 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1203 113L x 113W x 158H 35 2905 2700 95 38 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1203 113L x 113W x 158H 35 2905 2700 95 24 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1203 113L x 113W x 158H 35 2905 2700 95 15 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
product-img Tenace Swivel - Square 1203 113L x 113W x 158H 35 2905 2700 95 10 IP20 Diffused Lens/Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tuneable Download Download Download Download
