Optimized Performance
Utilizes a Separate Driver Box for superior thermal management and light output.

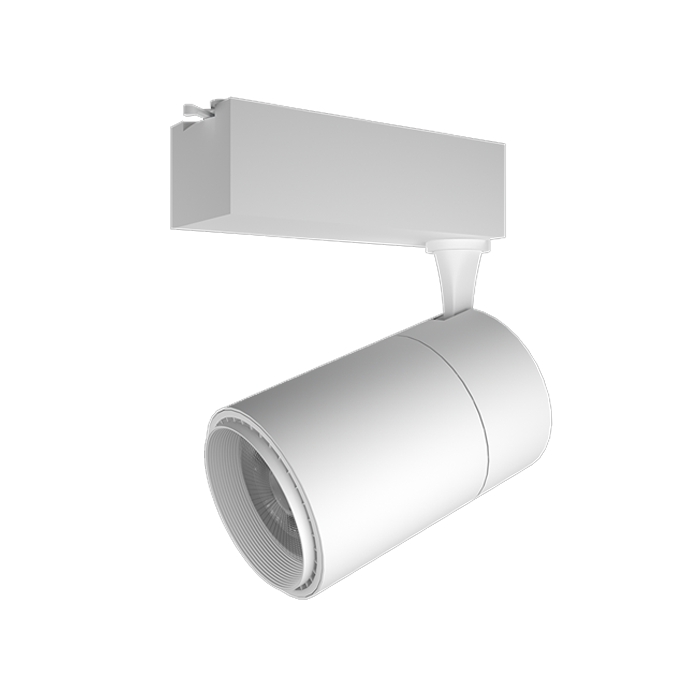

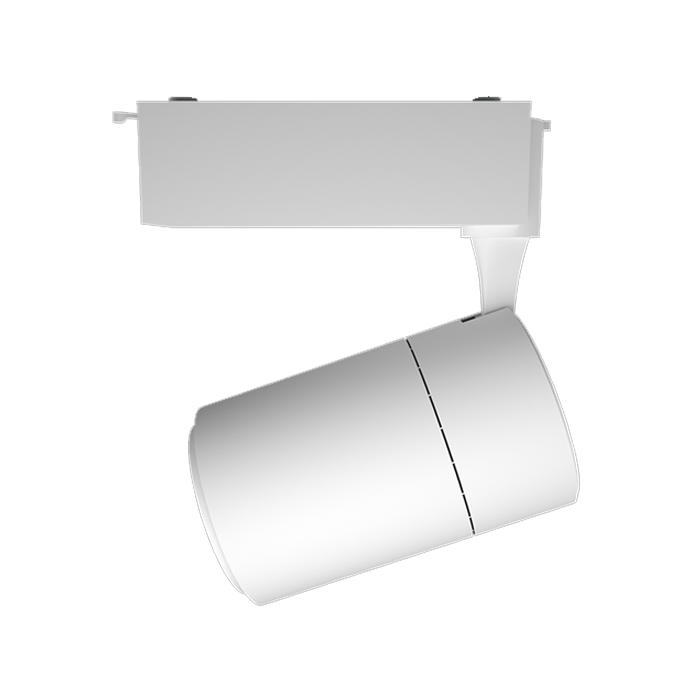

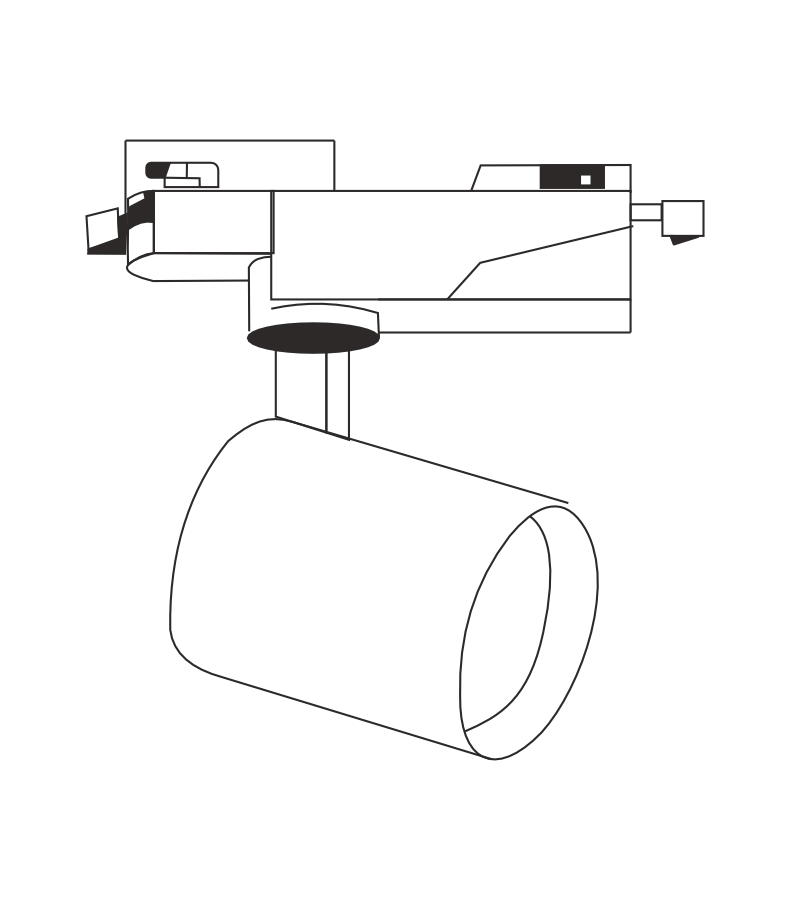

The Ace Top Box is a traditional-style track head with a tilt and rotate function where the separate driver housing sits cleanly above the cylindrical light body. This configuration offers both a classic, familiar track head silhouette and the benefits of advanced thermal separation, allowing for greater light output and longevity. It is a high-performance choice for commercial and gallery lighting that requires superior color rendering and high flexibility.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Trinsic Ace Top Box | 1357 | Dia 73 x H 148mm | 18 | 1476 | 2700 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1357 | Dia 73 x H 148mm | 18 | 1476 | 2700 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1357 | Dia 73 x H 148mm | 18 | 1476 | 2700 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1357 | Dia 73 x H 148mm | 18 | 1476 | 2700 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1357 | Dia 73 x H 148mm | 18 | 1558 | 3000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1357 | Dia 73 x H 148mm | 18 | 1558 | 3000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1357 | Dia 73 x H 148mm | 18 | 1558 | 3000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1357 | Dia 73 x H 148mm | 18 | 1558 | 3000 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1357 | Dia 73 x H 148mm | 18 | 1640 | 4000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1357 | Dia 73 x H 148mm | 18 | 1640 | 4000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1357 | Dia 73 x H 148mm | 18 | 1640 | 4000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1357 | Dia 73 x H 148mm | 18 | 1640 | 4000 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1358 | Dia 84 x H 162mm | 25 | 1945 | 2700 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1358 | Dia 84 x H 162mm | 25 | 1945 | 2700 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1358 | Dia 84 x H 162mm | 25 | 1945 | 2700 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1358 | Dia 84 x H 162mm | 25 | 1945 | 2700 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1358 | Dia 84 x H 162mm | 25 | 1995 | 3000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1358 | Dia 84 x H 162mm | 25 | 1995 | 3000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1358 | Dia 84 x H 162mm | 25 | 1995 | 3000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1358 | Dia 84 x H 162mm | 25 | 1995 | 3000 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1358 | Dia 84 x H 162mm | 25 | 2055 | 4000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1358 | Dia 84 x H 162mm | 25 | 2055 | 4000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1358 | Dia 84 x H 162mm | 25 | 2055 | 4000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1358 | Dia 84 x H 162mm | 25 | 2055 | 4000 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1359 | Dia 96 x H 173mm | 35 | 2855 | 2700 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1359 | Dia 96 x H 173mm | 35 | 2855 | 2700 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1359 | Dia 96 x H 173mm | 35 | 2855 | 2700 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1359 | Dia 96 x H 173mm | 35 | 2855 | 2700 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1359 | Dia 96 x H 173mm | 35 | 2925 | 3000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1359 | Dia 96 x H 173mm | 35 | 2925 | 3000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1359 | Dia 96 x H 173mm | 35 | 2925 | 3000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1359 | Dia 96 x H 173mm | 35 | 2925 | 3000 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1359 | Dia 96 x H 173mm | 35 | 3015 | 4000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1359 | Dia 96 x H 173mm | 35 | 3015 | 4000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1359 | Dia 96 x H 173mm | 35 | 3015 | 4000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1359 | Dia 96 x H 173mm | 35 | 3015 | 4000 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|

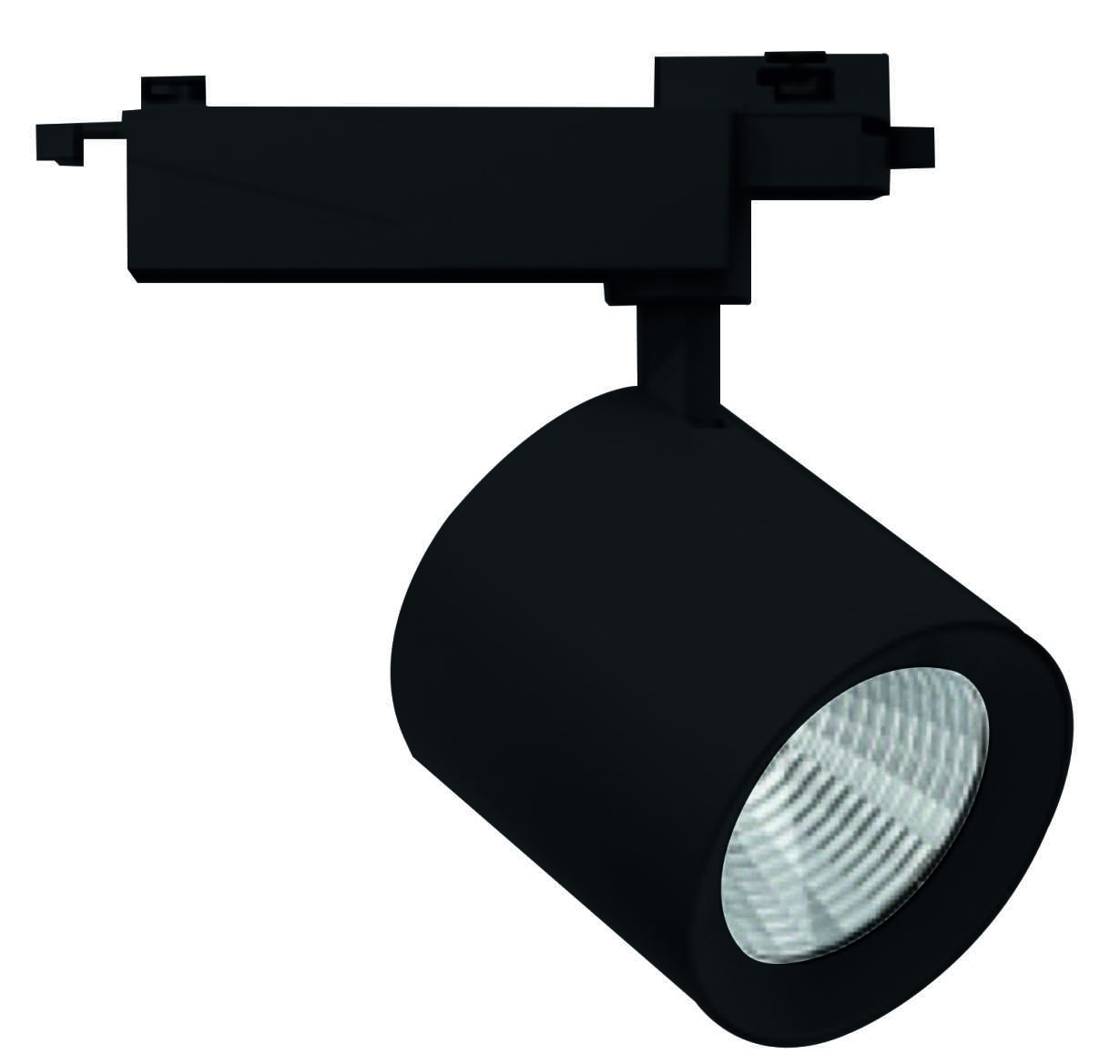

Trinsic Ace Top Box | 1499 | Dia 105 x H 187mm | 40 | 3280 | 2700 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1499 | Dia 105 x H 187mm | 40 | 3280 | 2700 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1499 | Dia 105 x H 187mm | 40 | 3362 | 3000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1499 | Dia 105 x H 187mm | 40 | 3362 | 3000 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1499 | Dia 105 x H 187mm | 40 | 3444 | 4000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Ace Top Box | 1499 | Dia 105 x H 187mm | 40 | 3444 | 4000 | 95 | 45 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
