trinsic surface

Interior Spaces

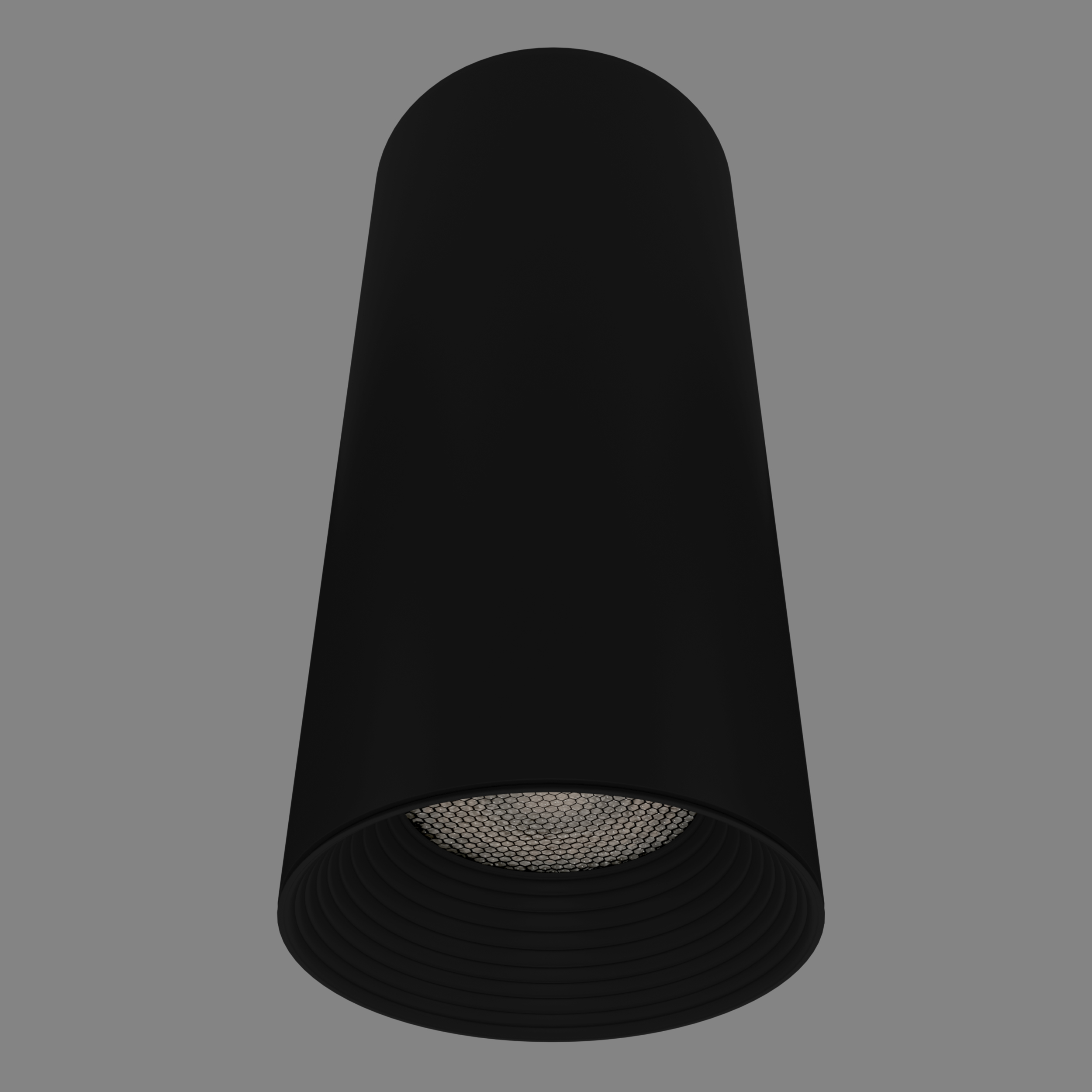

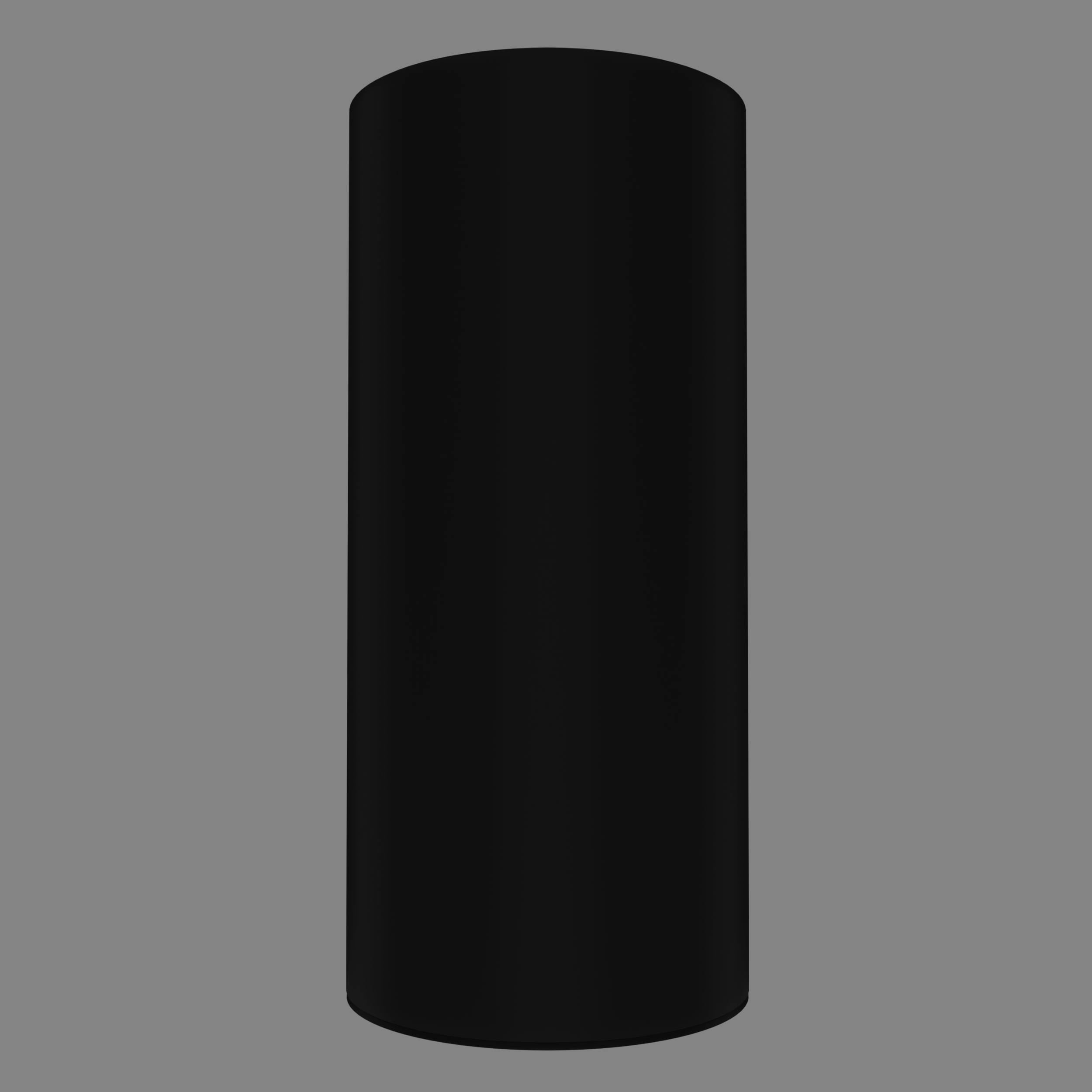

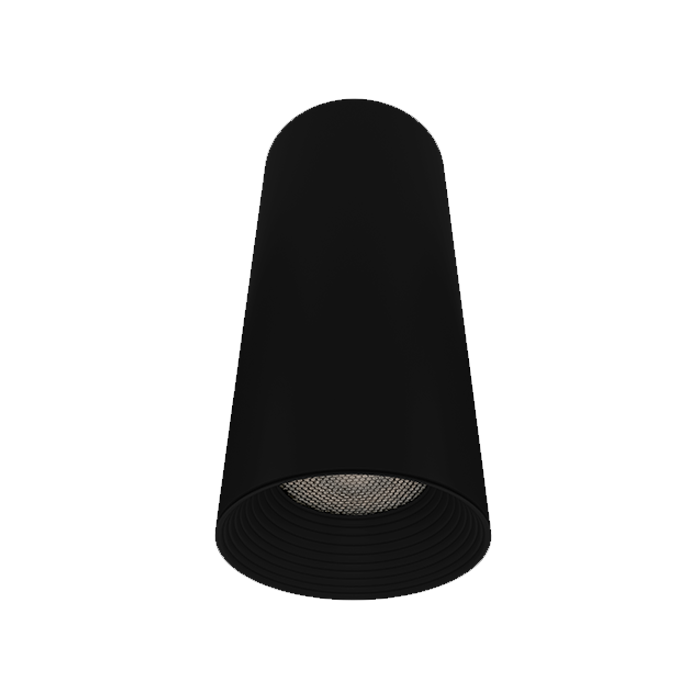

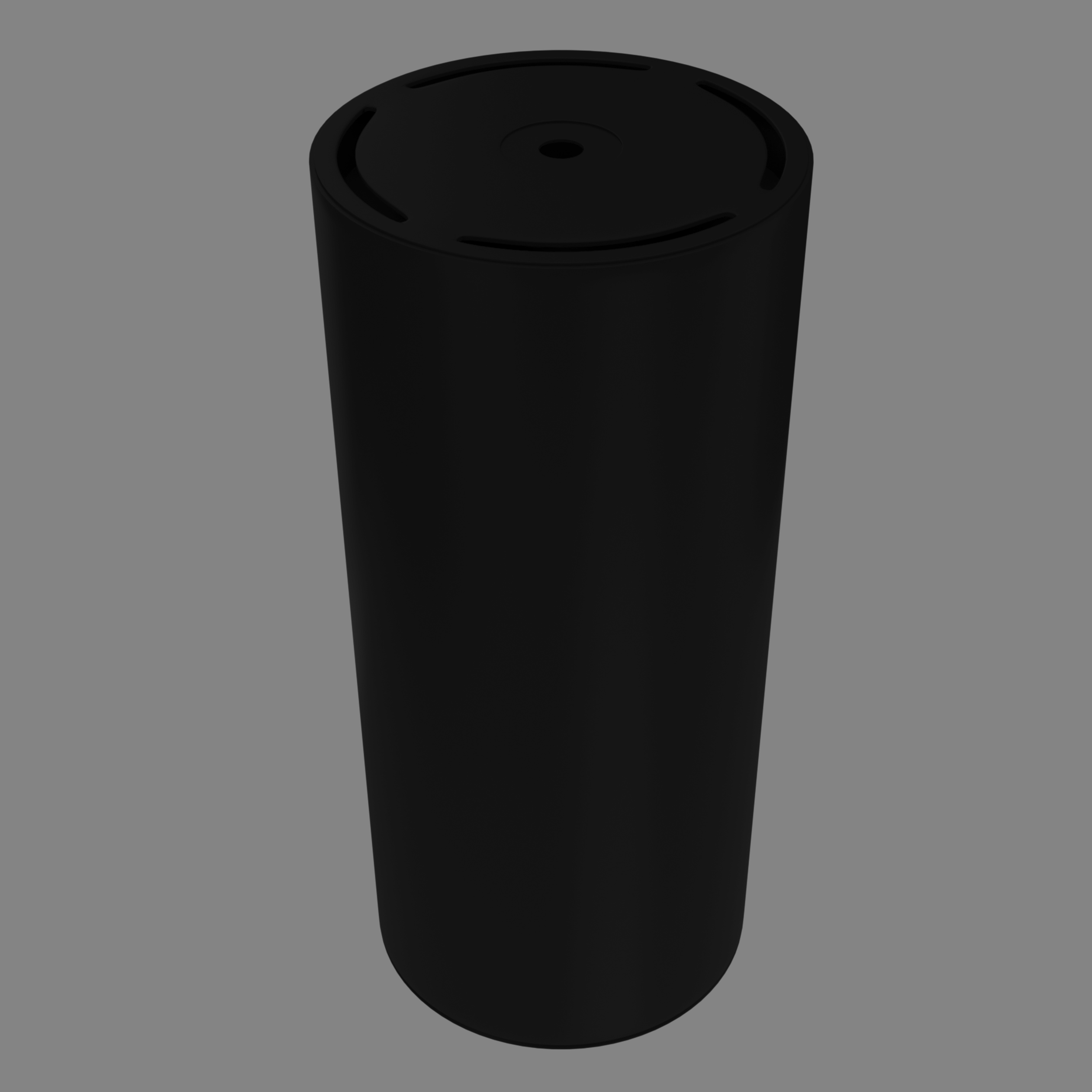

The Trinsic Surface is a fixed, cylindrical downlight designed for permanent, direct illumination from the ceiling. It is the simplest and most robust option in the Trinsic line, providing a clean line of light without adjustable features. Its fixed position makes it an excellent choice for general downlighting in corridors, lobbies, and areas requiring uniform, high-quality, non-adjustable light

Enquire Now

Specifications

Product Image
Wattage
7W/15W/25W/35W
Lumen
570 lm- 3015 lm
Beam Angle
10°/15°/24°/38°
UGR
<19
IP rating
IP20
check icon
Fixed Downlight
Provides robust, non-adjustable illumination for consistent general lighting.
check icon
Cylindrical Form
A clean, fixed cylinder that acts as a strong, non-intrusive architectural element.
check icon
Multiple Filter Options

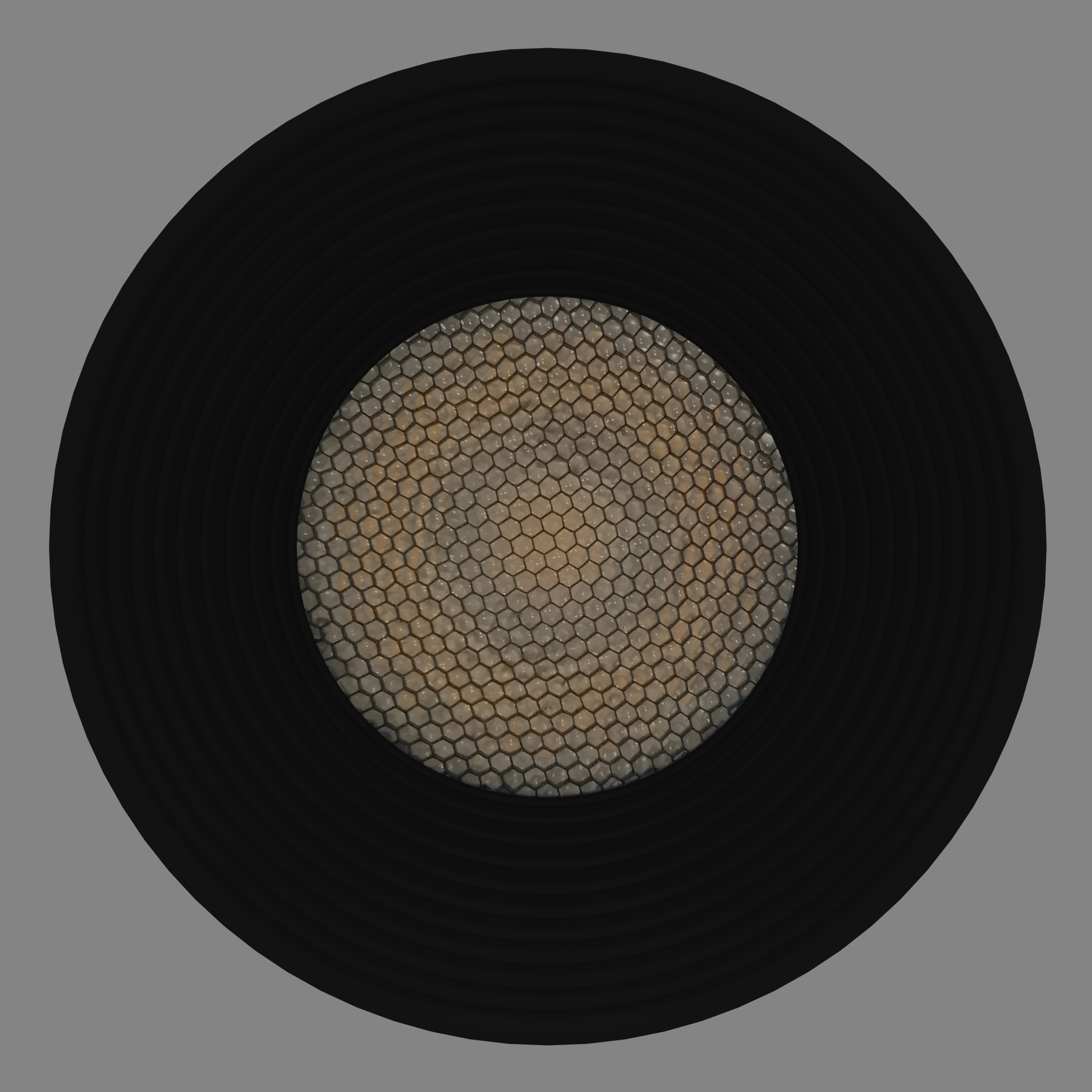

Choice of honeycombe ad softening lens to suit specific lighting applications.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Trinsic Surface 1294 Dia 57 x H 100mm 7 570 2700 95 10 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1294 Dia 57 x H 100mm 7 570 2700 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1294 Dia 57 x H 100mm 7 570 2700 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1294 Dia 57 x H 100mm 7 570 2700 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1294 Dia 57 x H 100mm 7 585 3000 95 10 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1294 Dia 57 x H 100mm 7 585 3000 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1294 Dia 57 x H 100mm 7 585 3000 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1294 Dia 57 x H 100mm 7 585 3000 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1294 Dia 57 x H 100mm 7 605 4000 95 10 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1294 Dia 57 x H 100mm 7 605 4000 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1294 Dia 57 x H 100mm 7 605 4000 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1294 Dia 57 x H 100mm 7 605 4000 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1295 Dia 57 x H 150mm 15 1230 2700 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1295 Dia 57 x H 150mm 15 1230 2700 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1295 Dia 57 x H 150mm 15 1230 2700 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1295 Dia 57 x H 150mm 15 1260 3000 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1295 Dia 57 x H 150mm 15 1260 3000 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1295 Dia 57 x H 150mm 15 1260 3000 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1295 Dia 57 x H 150mm 15 1300 4000 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1295 Dia 57 x H 150mm 15 1300 4000 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1295 Dia 57 x H 150mm 15 1300 4000 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1296 Dia 73 x H 180mm 25 1945 2700 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1296 Dia 73 x H 180mm 25 1945 2700 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1296 Dia 73 x H 180mm 25 1945 2700 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1296 Dia 73 x H 180mm 25 1995 3000 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1296 Dia 73 x H 180mm 25 1995 3000 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1296 Dia 73 x H 180mm 25 1995 3000 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1296 Dia 73 x H 180mm 25 2055 4000 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1296 Dia 73 x H 180mm 25 2055 4000 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1296 Dia 73 x H 180mm 25 2055 4000 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1297 Dia 84 x H 200mm 35 2855 2700 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1297 Dia 84 x H 200mm 35 2855 2700 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1297 Dia 84 x H 200mm 35 2855 2700 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1297 Dia 84 x H 200mm 35 2925 3000 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1297 Dia 84 x H 200mm 35 2925 3000 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1297 Dia 84 x H 200mm 35 2925 3000 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1297 Dia 84 x H 200mm 35 3015 4000 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1297 Dia 84 x H 200mm 35 3015 4000 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Surface 1297 Dia 84 x H 200mm 35 3015 4000 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
