High CRI 95
Ensures the true and vibrant colors of the illuminated surface are accurately rendered.

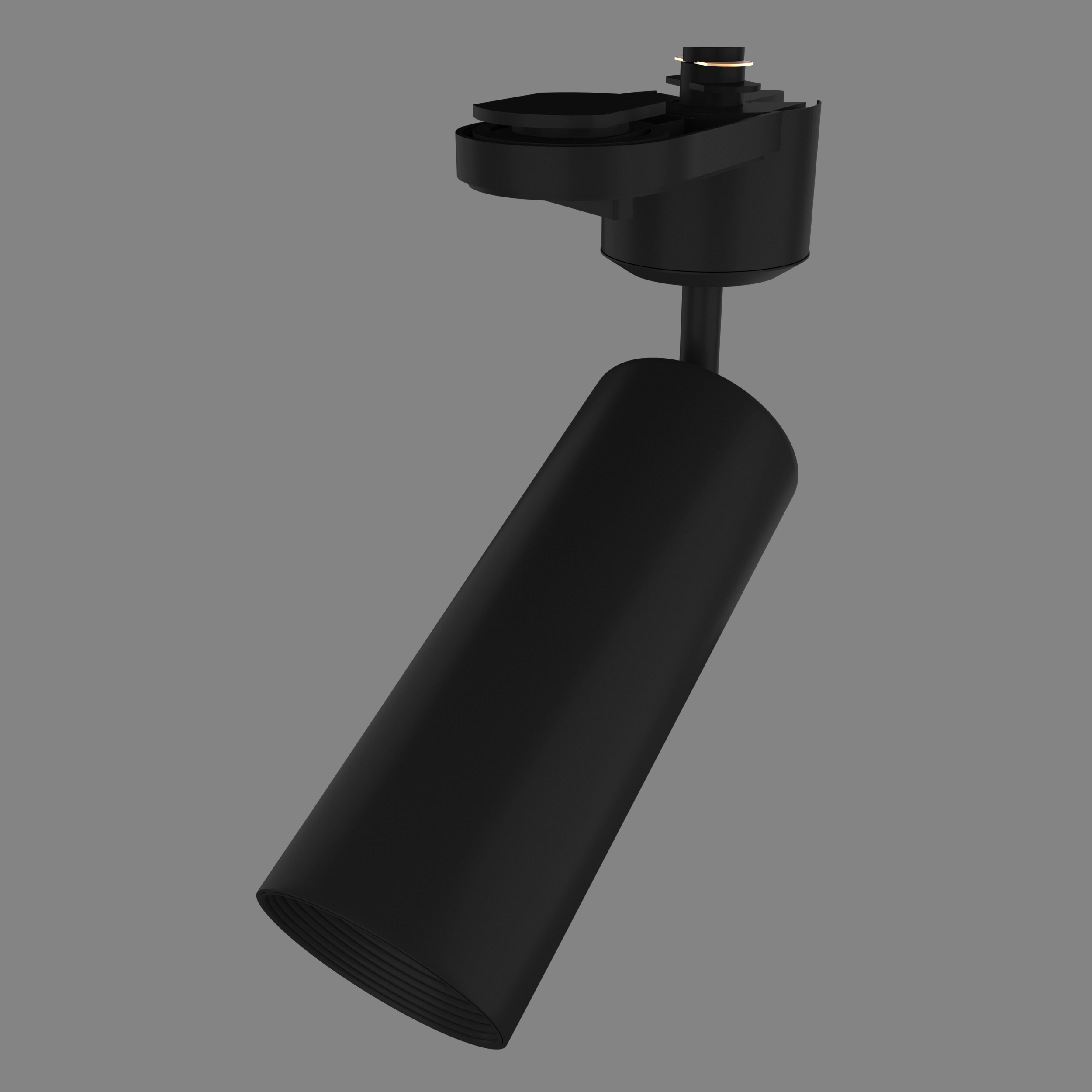

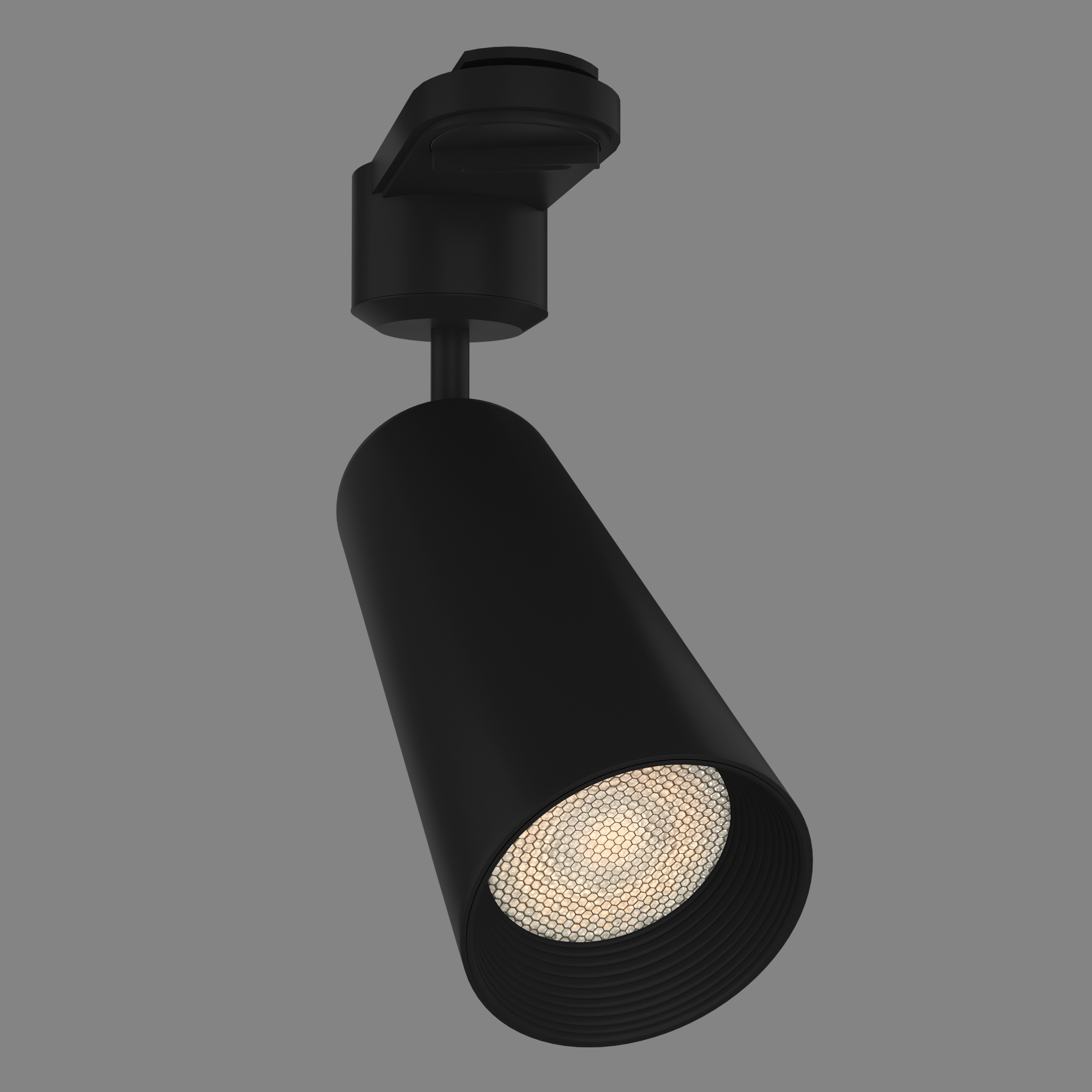

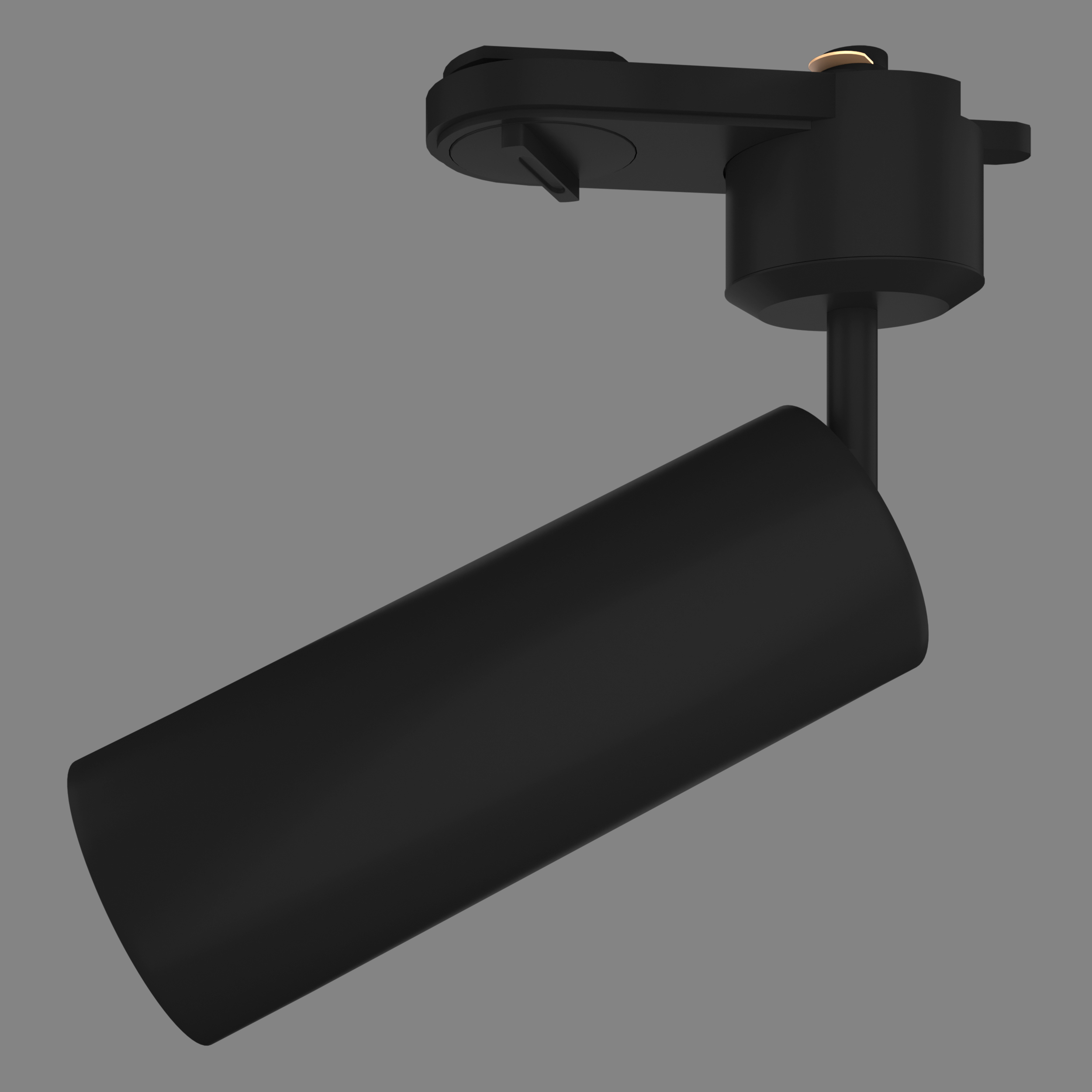

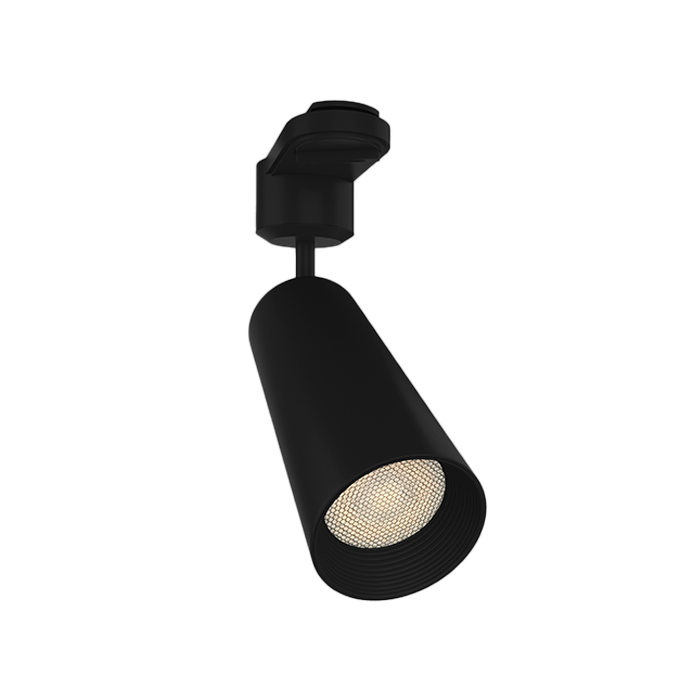

The Trinsic Track fixture delivers high-quality, directional light with the freedom of track-mounted flexibility. With its In-built Driver, it maintains a sleek, compact profile while providing full Tilt & Rotate functionality. This fixture is the ultimate adaptable tool, allowing for simple repositioning and aiming along a track for continuous changes in accent and task lighting.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Trinsic Track | 1282 | Dia 57 x H 163mm | 7 | 570 | 2700 | 95 | 10 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1282 | Dia 57 x H 163mm | 7 | 570 | 2700 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1282 | Dia 57 x H 163mm | 7 | 570 | 2700 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1282 | Dia 57 x H 163mm | 7 | 570 | 2700 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1282 | Dia 57 x H 163mm | 7 | 585 | 3000 | 95 | 10 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1282 | Dia 57 x H 163mm | 7 | 585 | 3000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1282 | Dia 57 x H 163mm | 7 | 585 | 3000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1282 | Dia 57 x H 163mm | 7 | 585 | 3000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1282 | Dia 57 x H 163mm | 7 | 605 | 4000 | 95 | 10 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1282 | Dia 57 x H 163mm | 7 | 605 | 4000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1282 | Dia 57 x H 163mm | 7 | 605 | 4000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1282 | Dia 57 x H 163mm | 7 | 605 | 4000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1283 | Dia 57 x H 207mm | 15 | 1230 | 2700 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1283 | Dia 57 x H 207mm | 15 | 1230 | 2700 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1283 | Dia 57 x H 207mm | 15 | 1230 | 2700 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1283 | Dia 57 x H 207mm | 15 | 1260 | 3000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1283 | Dia 57 x H 207mm | 15 | 1260 | 3000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1283 | Dia 57 x H 207mm | 15 | 1260 | 3000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1283 | Dia 57 x H 207mm | 15 | 1300 | 4000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1283 | Dia 57 x H 207mm | 15 | 1300 | 4000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1283 | Dia 57 x H 207mm | 15 | 1300 | 4000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1284 | Dia 73 x H 244mm | 25 | 1945 | 2700 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1284 | Dia 73 x H 244mm | 25 | 1945 | 2700 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1284 | Dia 73 x H 244mm | 25 | 1945 | 2700 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1284 | Dia 73 x H 244mm | 25 | 1995 | 3000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1284 | Dia 73 x H 244mm | 25 | 1995 | 3000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1284 | Dia 73 x H 244mm | 25 | 1995 | 3000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1284 | Dia 73 x H 244mm | 25 | 2055 | 4000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1284 | Dia 73 x H 244mm | 25 | 2055 | 4000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1284 | Dia 73 x H 244mm | 25 | 2055 | 4000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1285 | Dia 84 x H 269mm | 35 | 2855 | 2700 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1285 | Dia 84 x H 269mm | 35 | 2855 | 2700 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1285 | Dia 84 x H 269mm | 35 | 2855 | 2700 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1285 | Dia 84 x H 269mm | 35 | 2925 | 3000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1285 | Dia 84 x H 269mm | 35 | 2925 | 3000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1285 | Dia 84 x H 269mm | 35 | 2925 | 3000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1285 | Dia 84 x H 269mm | 35 | 3015 | 4000 | 95 | 15 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1285 | Dia 84 x H 269mm | 35 | 3015 | 4000 | 95 | 24 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Track | 1285 | Dia 84 x H 269mm | 35 | 3015 | 4000 | 95 | 38 | IP20 | Softening Lens/Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
