Full Adjustability
Offers 360° Rotation and up to 90° Tilt from a fixed surface position

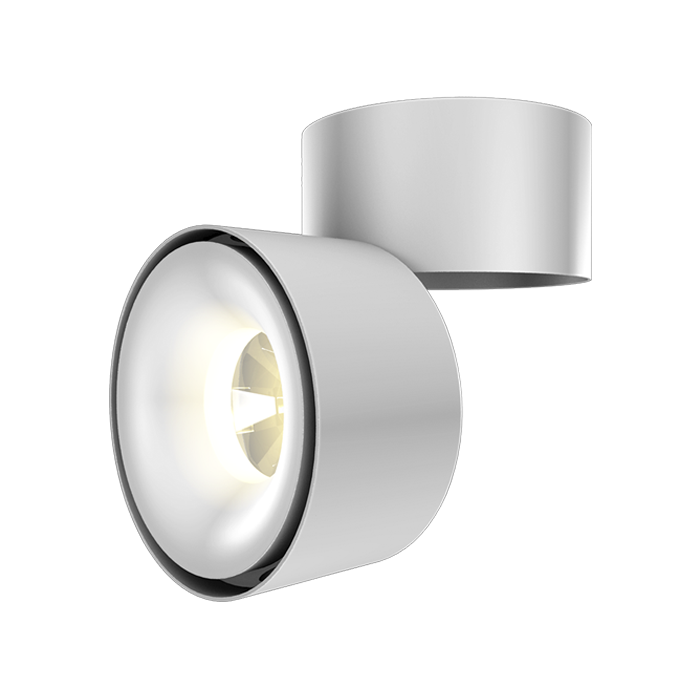

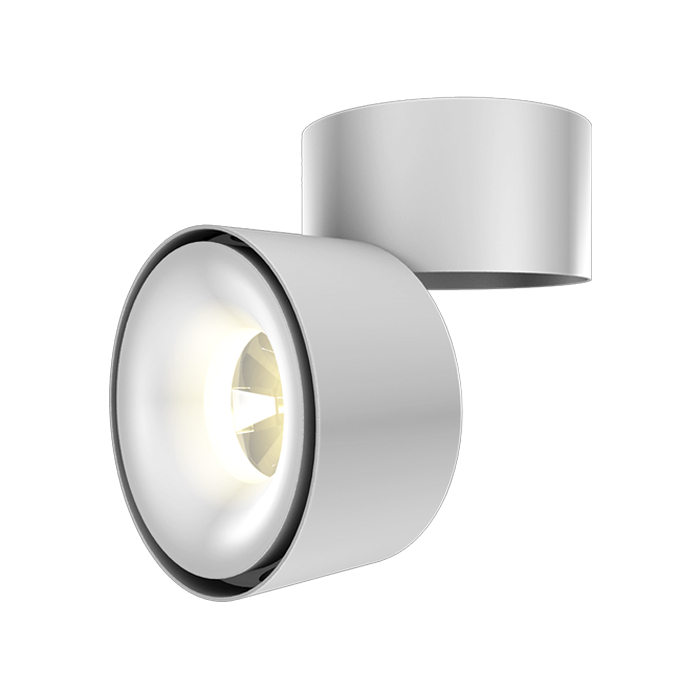

The Trinsic Twist Surface model provides dynamic directional lighting from a fixed, surface-mounted cylindrical base. It is the perfect solution for ceilings where recessing is impossible (e.g., concrete slabs) but full accent-lighting flexibility is still required.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 10 | 885 | 2700 | 95 | 15 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 10 | 885 | 2700 | 95 | 24 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 10 | 885 | 2700 | 95 | 38 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 10 | 910 | 3000 | 95 | 15 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 10 | 910 | 3000 | 95 | 24 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 10 | 910 | 3000 | 95 | 38 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 10 | 935 | 4000 | 95 | 15 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 10 | 935 | 4000 | 95 | 24 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 10 | 935 | 4000 | 95 | 38 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 15 | 1335 | 2700 | 95 | 15 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 15 | 1335 | 2700 | 95 | 24 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 15 | 1335 | 2700 | 95 | 38 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 15 | 1370 | 3000 | 95 | 15 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 15 | 1370 | 3000 | 95 | 24 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 15 | 1370 | 3000 | 95 | 38 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 15 | 1410 | 4000 | 95 | 15 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 15 | 1410 | 4000 | 95 | 24 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Trinsic Twist Surface | 1363 | Dia 100 x H 105mm | 15 | 1410 | 4000 | 95 | 38 | IP20 | Honeycomb | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
