Balanced Performance
Excellent output options (1W or 3W) in a manageable size ($\phi 38$mm trim) for a wide range of accent applications.

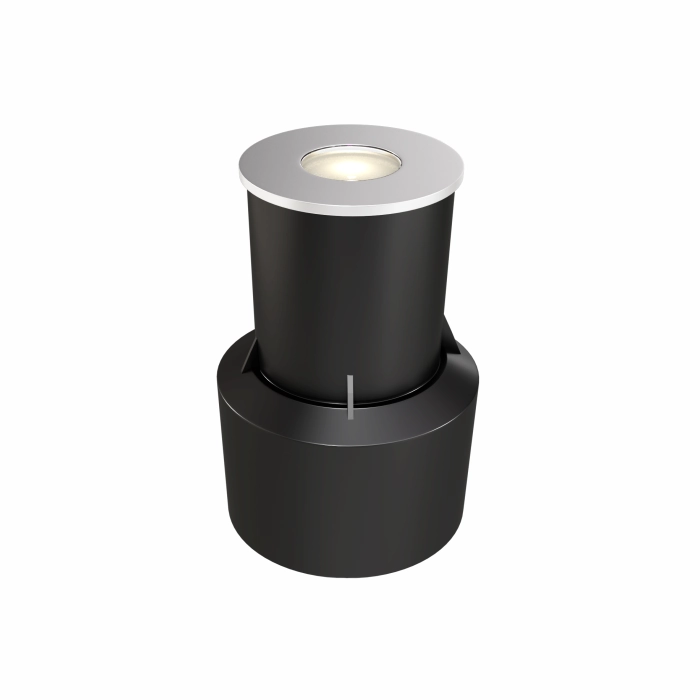

Hypogean Mini provides a perfect balance of compact size and versatile performance. Slightly larger than the Micro, the Mini offers a powerful 1W or 3W output, making it highly effective for both accent lighting and general uplighting. Its size makes it manageable for numerous applications, while its multiple beam angle options ensure it can handle everything from highlighting columns to providing gentle area illumination. The Mini is the go-to fixture for designers seeking flexibility without sacrificing quality or durability.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 87 | Blue | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 87 | Blue | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 87 | Blue | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 87 | Blue | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 87 | Blue | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 29 | Blue | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 29 | Blue | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 29 | Blue | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 29 | Blue | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 29 | Blue | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 185 | Green | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 185 | Green | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 185 | Green | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 185 | Green | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 185 | Green | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 62 | Green | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 62 | Green | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 62 | Green | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 62 | Green | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 62 | Green | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 110 | Red | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 110 | Red | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 110 | Red | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 110 | Red | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 110 | Red | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 36 | Red | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 36 | Red | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 36 | Red | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 36 | Red | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 36 | Red | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 223 | 3000 | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 223 | 3000 | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 223 | 3000 | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 223 | 3000 | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 223 | 3000 | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 75 | 3000 | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 75 | 3000 | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 75 | 3000 | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 75 | 3000 | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 75 | 3000 | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 218 | 2700 | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 218 | 2700 | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 218 | 2700 | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 218 | 2700 | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 3 | 218 | 2700 | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 73 | 2700 | 92 | 60 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 73 | 2700 | 92 | 45 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 73 | 2700 | 92 | 30 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 73 | 2700 | 92 | 15 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Hypogean Fix Mini | 3035 | Dia 38 x H 85mm | 1 | 73 | 2700 | 92 | 8 | IP67 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
