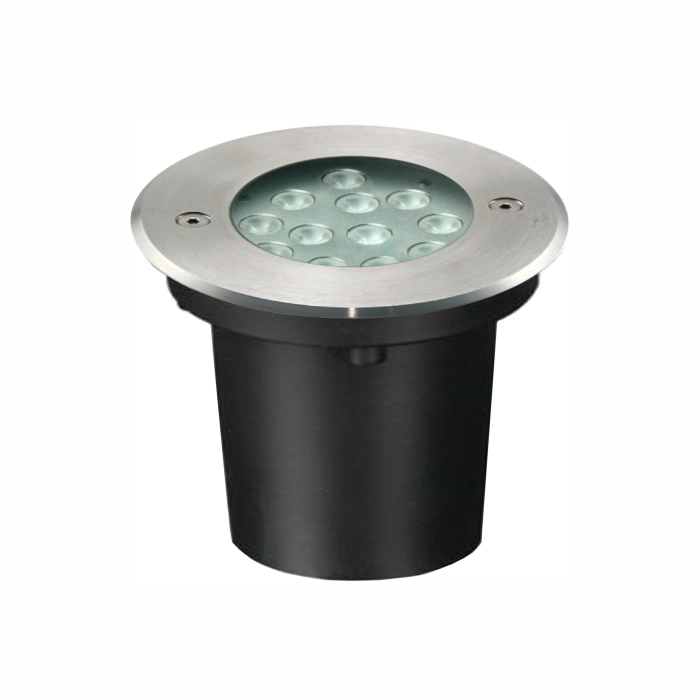

Hypogean Fix R12

Exterior Spaces

Hypogean R12 is the largest and most powerful fixed in-ground fixture in the series. With an increased dia of 186mm and up to 24W of power, this fixture is designed for applications where high light levels over vast distances are non-negotiable, such as illuminating entire building facades or very large landscape elements. The R12 delivers the greatest throw and brightest saturation while maintaining the high-CRI and durability standards of the entire Hypogean line.

Enquire Now

Specifications

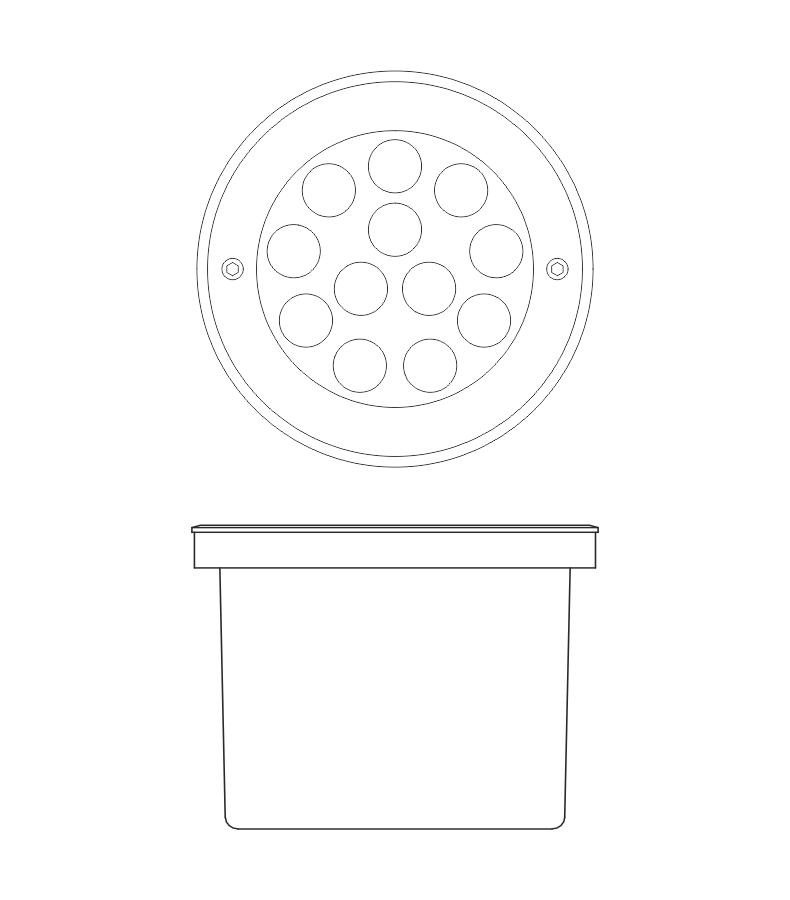

Product Image
Wattage
12W-24W
Lumen
940 lm-1930 lm
Beam angle
8°/15°/30°/45°/60°/Asy
Cut out
N/A
IP Rating
IP67
check icon
Highest Lumen Output
Exceptional 12W or 24W power options deliver the maximum light output for illuminating the largest features and structures.
check icon
Largest Trim Size
$\phi 186$mm size provides the necessary thermal management and surface area for high-wattage performance.
check icon
Optimal Beam for Coverage
Provides multiple symmetric and the essential Asymmetric beam option for effective broad-area coverage.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 865 Blue 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 865 Blue 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 865 Blue 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 865 Blue 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 865 Blue 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 865 Blue 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 430 Blue 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 430 Blue 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 430 Blue 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 430 Blue 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 430 Blue 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 430 Blue 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1655 Green 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1655 Green 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1655 Green 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1655 Green 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1655 Green 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1655 Green 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 825 Green 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 825 Green 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 825 Green 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 825 Green 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 825 Green 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 825 Green 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1030 Red 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1030 Red 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1030 Red 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1030 Red 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1030 Red 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1030 Red 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 515 Red 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 515 Red 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 515 Red 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 515 Red 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 515 Red 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 515 Red 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1930 3000 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1930 3000 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1930 3000 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1930 3000 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1930 3000 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1930 3000 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 965 3000 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 965 3000 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 965 3000 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 965 3000 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 965 3000 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 965 3000 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1885 2700 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1885 2700 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1885 2700 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1885 2700 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1885 2700 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1885 2700 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 940 2700 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 940 2700 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 940 2700 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 940 2700 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 940 2700 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 940 2700 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
