Hypogean Fix R3

  • Gallery Image

Hypogean Fix R3

Exterior Spaces

Hypogean R3 is the standard entry in the larger Hypogean Fix family, offering a perfect blend of compact form and powerful illumination. With its Dia 108mm trim and output up to 9W, the R3 is the workhorse for general accent lighting in landscapes and public spaces. Its multiple beam angles and choice of power sources make it highly adaptable, while the essential IP67/IK08 rating ensures it can handle any ground application with ease and longevity.

Enquire Now

Specifications

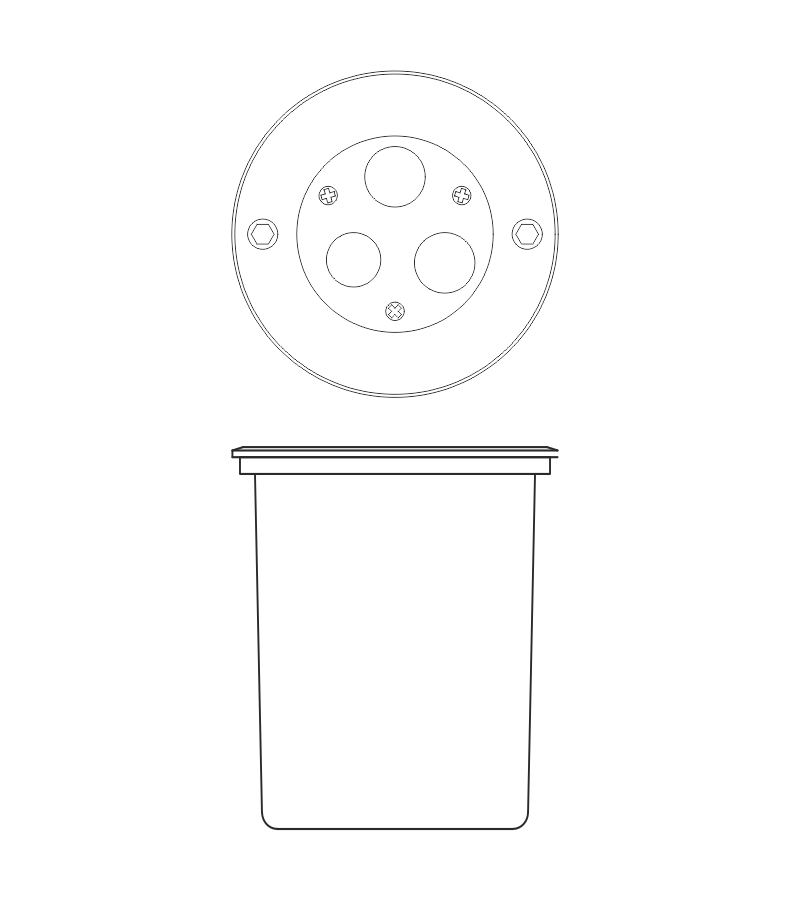

Product Image
Wattage
6W-9W
Lumen
440 lm-725 lm
Beam angle
8°/15°/30°/45°/60°/Asy
Cut out
N/A
IP Rating
IP67
check icon
Flexible Power Output
Available in 6W or 9W versions to suit different levels of illumination requirements.
check icon
Built for the Ground
Highly durable with IP67 waterproofing and IK08 impact rating for heavy-duty ground installations.
check icon
Dual Voltage Operation
Supports both In-built AC230V and Remote DC24V power to integrate seamlessly into diverse electrical systems.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 325 Blue 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 325 Blue 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 325 Blue 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 325 Blue 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 325 Blue 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 325 Blue 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 215 Blue 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 215 Blue 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 215 Blue 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 215 Blue 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 215 Blue 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 215 Blue 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 620 Green 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 620 Green 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 620 Green 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 620 Green 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 620 Green 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 620 Green 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 415 Green 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 415 Green 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 415 Green 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 415 Green 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 415 Green 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 415 Green 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 385 Red 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 385 Red 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 385 Red 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 385 Red 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 385 Red 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 385 Red 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 255 Red 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 255 Red 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 255 Red 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 255 Red 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 255 Red 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 255 Red 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 725 3000 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 725 3000 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 725 3000 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 725 3000 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 725 3000 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 725 3000 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 480 3000 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 480 3000 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 480 3000 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 480 3000 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 480 3000 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 480 3000 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 705 2700 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 705 2700 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 705 2700 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 705 2700 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 705 2700 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 9 705 2700 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 470 2700 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 470 2700 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 470 2700 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 470 2700 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 470 2700 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R3 3037 Dia 108 x H 114mm 6 470 2700 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
