Submersible Rating
IP68 rating ensures full protection against prolonged submersion, ideal for fountains, ponds, or areas prone to heavy flooding.

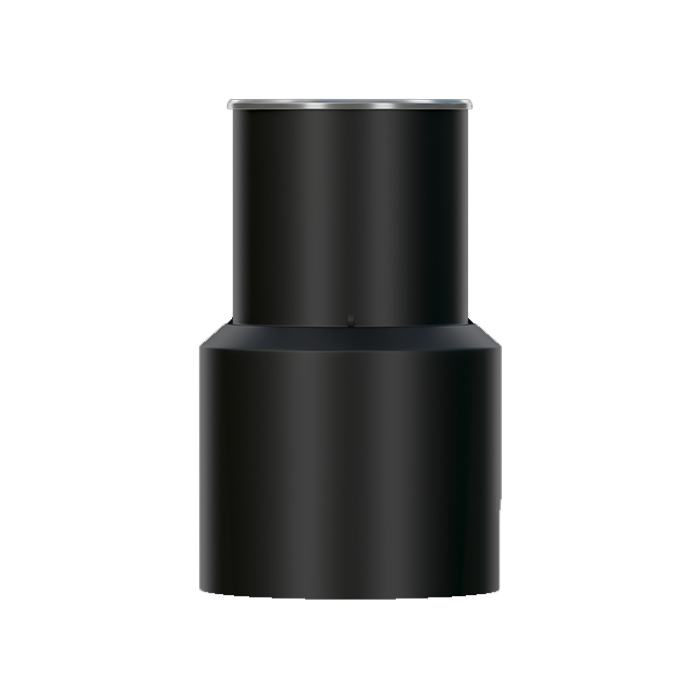

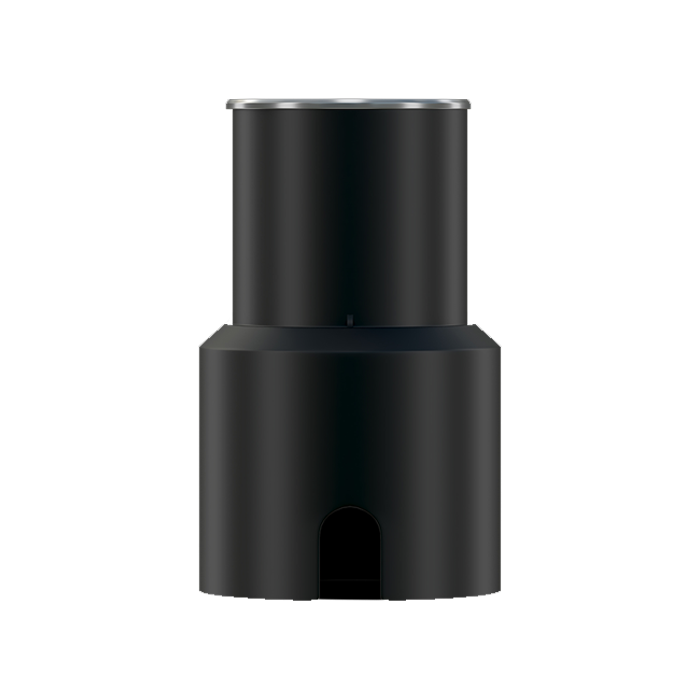

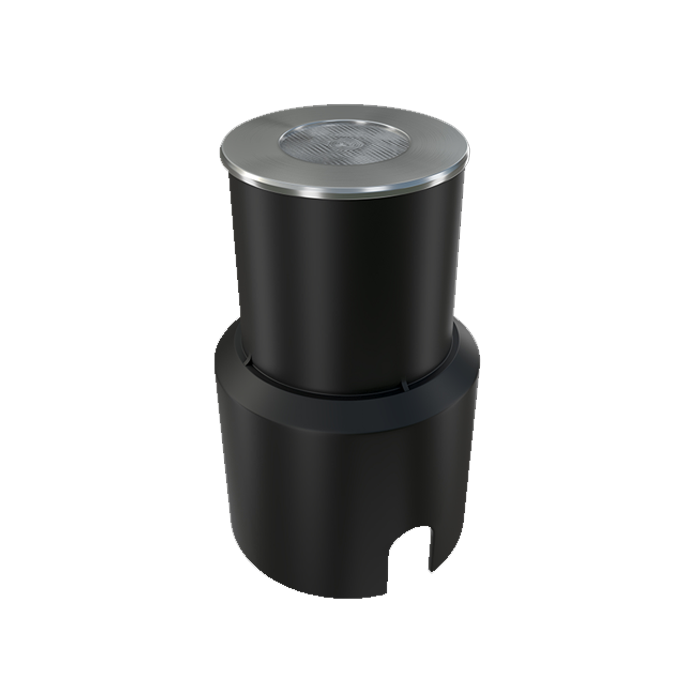

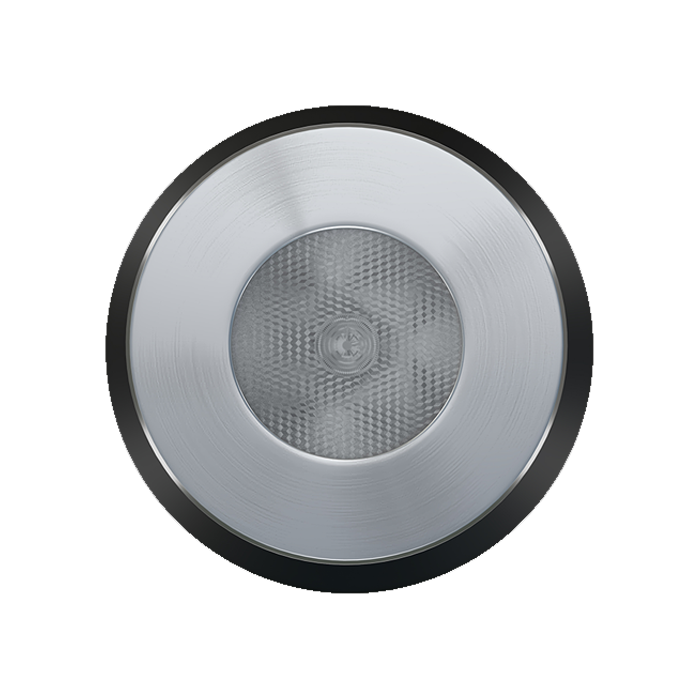

Shuays Mini is the most compact fixture in the Shuays line, designed for applications requiring maximum discretion and durability. With its small dia of 38mm, it is perfectly suited for subtle installation in concrete, wood decking, or even submerged in water features due to its superior IP68 rating. The Mini delivers focused accent illumination (1W/3W) with high-CRI color quality, making it an excellent choice for detailed, low-glare lighting in wet or high-traffic environments.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Shuays Mini | 3050 | Dia 38 x H 85mm | 3 | 270 | 3000 | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays Mini | 3050 | Dia 38 x H 85mm | 3 | 270 | 3000 | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays Mini | 3050 | Dia 38 x H 85mm | 3 | 270 | 3000 | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays Mini | 3050 | Dia 38 x H 85mm | 3 | 270 | 3000 | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays Mini | 3050 | Dia 38 x H 85mm | 3 | 270 | 3000 | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays Mini | 3050 | Dia 38 x H 85mm | 1 | 90 | 3000 | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays Mini | 3050 | Dia 38 x H 85mm | 1 | 90 | 3000 | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays Mini | 3050 | Dia 38 x H 85mm | 1 | 90 | 3000 | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays Mini | 3050 | Dia 38 x H 85mm | 1 | 90 | 3000 | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays Mini | 3050 | Dia 38 x H 85mm | 1 | 90 | 3000 | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
