Shuays R18

  • Gallery Image

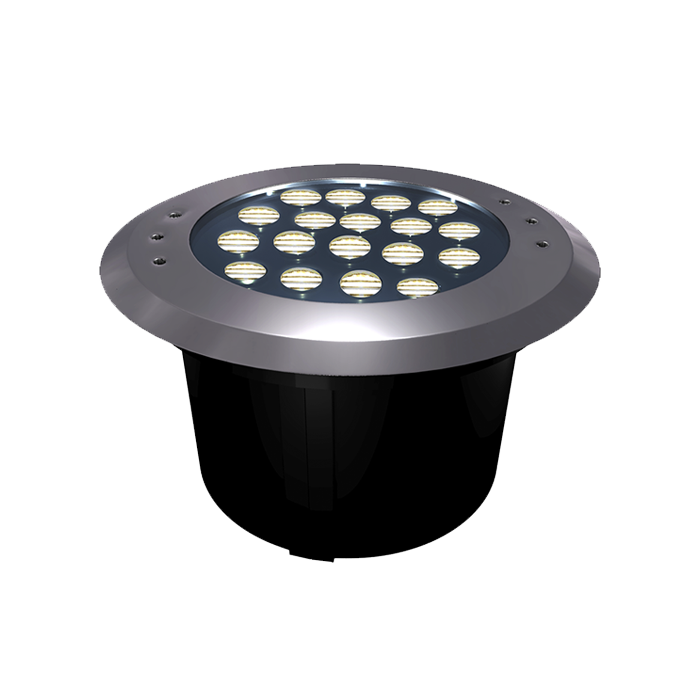

Shuays R18

Exterior Spaces

Shuays R18 is the pinnacle of the series, featuring a dia of 200mm and maximum power output of up to 54W. This fixture is dedicated to the most challenging uplighting tasks, such as illuminating entire skyscrapers, vast atriums, or massive natural features. It combines unparalleled light output with the series' core standards of high-CRI color quality, full dimming capability, and the absolute resilience of an IP68/IK08 rating.

Enquire Now

Specifications

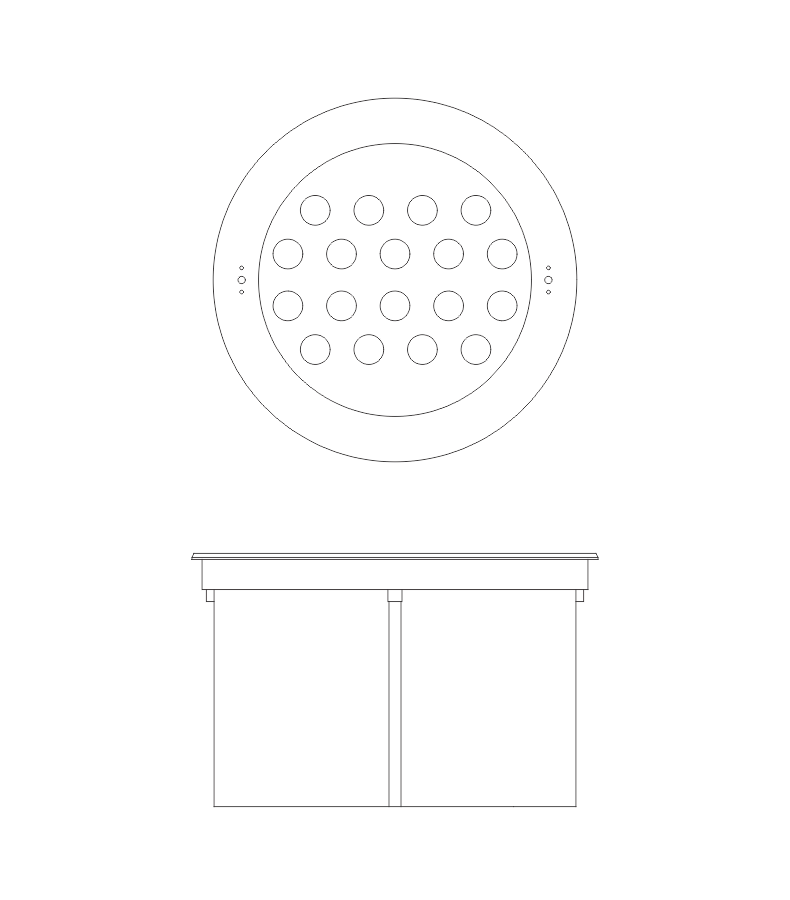

Product Image
Wattage
36W / 54W
Lumen
1585 lm - 4845 lm
Beam Angle
8°/ 15°/ 30°/ 45°/ 60°/ 90°
Cut out
N/A
IP rating
IP 68
check icon
Peak Performance
36W or 54W power delivers the highest lumen output in the series (up to 4845lm @ 3000K) for maximum impact and reach.
check icon
Optimized for Distance
Designed specifically to maintain brilliant output and beam shape over extreme distances and heights.
check icon
Unwavering Resilience
Highest rating combination of IP68 (submersible) and IK08 (impact), perfect for permanent, high-power installations in challenging locations.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Shuays R18 3056 Dia 200 x H 126mm 36 2755 Green 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 2755 Green 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 2755 Red 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 2755 Red 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 2755 Red 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 2755 Red 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 2755 Red 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 1835 Red 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 1835 Red 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 1835 Red 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 1835 Red 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 1835 Red 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 1835 Red 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 4845 3000 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 4845 3000 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 4845 3000 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 4845 3000 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 4845 3000 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 4845 3000 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 3230 3000 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 3230 3000 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 3230 3000 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 3230 3000 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 3230 3000 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 3230 3000 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 2755 Green 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 2755 Red 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 2755 Green 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 2755 Green 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 2755 Green 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 4160 Green 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 4160 Green 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 4160 Green 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 4160 Green 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 4160 Green 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 4160 Green 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 1585 Blue 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 1585 Blue 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 1585 Blue 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 1585 Blue 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 1585 Blue 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 36 1585 Blue 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 2376 Blue 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 2376 Blue 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 2376 Blue 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 2376 Blue 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 2376 Blue 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R18 3056 Dia 200 x H 126mm 54 2376 Blue 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
