High Output Illumination
Powerful 6W or 9W options provide the necessary light for illuminating tall or distant architectural and landscape features.

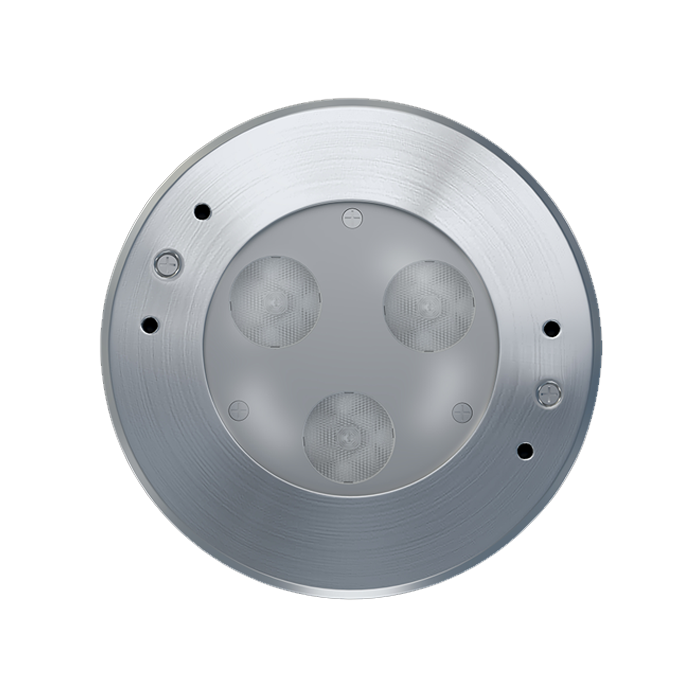

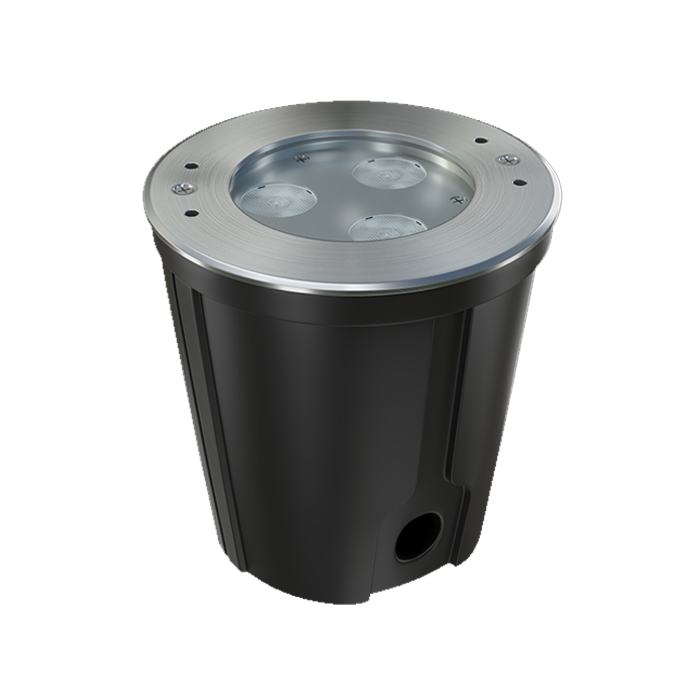

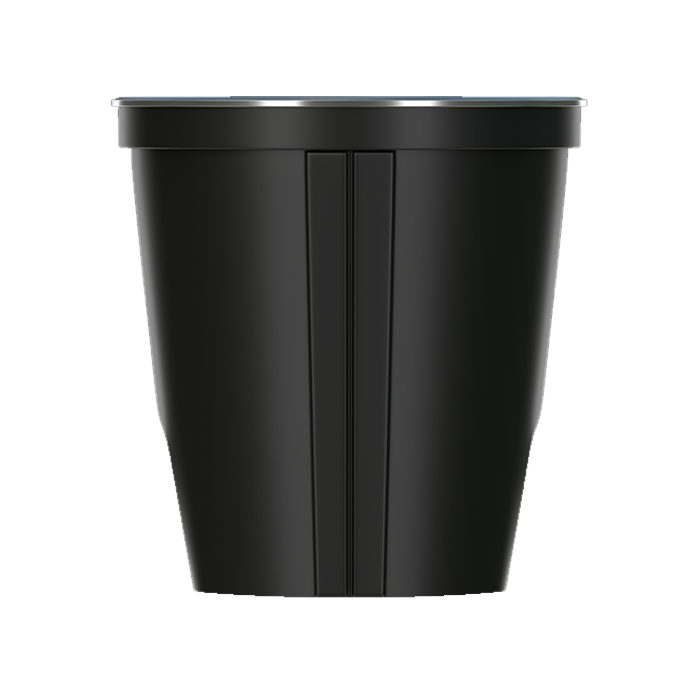

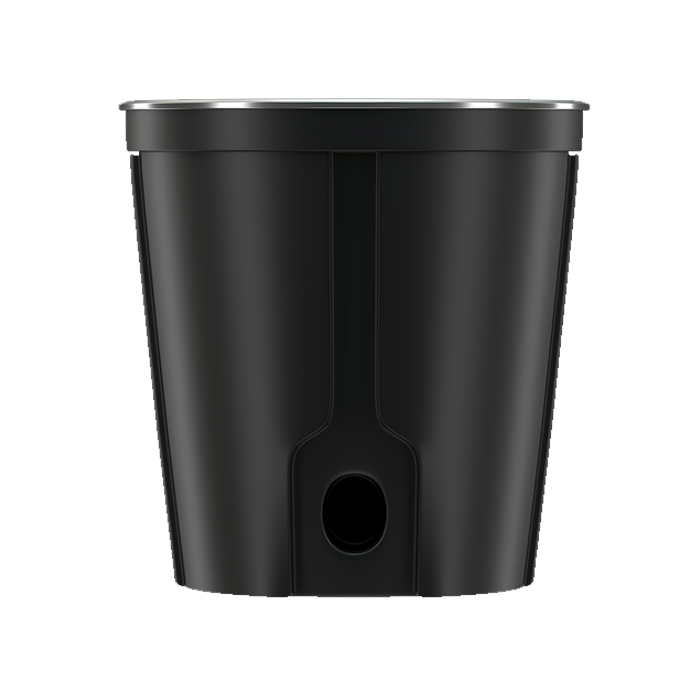

Shuays R3 is the most powerful fixed fixture in the series, designed for applications requiring high lumen output over greater distances. With its dia of 115mm trim and up to 9W of power, it is the fixture of choice for illuminating large trees, building façades, or significant water features. Like its smaller counterparts, the R3 is built with an IP68/IK08 rating, ensuring that high performance never compromises durability in the toughest environmental conditions.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 395 | Blue | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 395 | Blue | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 395 | Blue | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 395 | Blue | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 395 | Blue | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 395 | Blue | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 265 | Blue | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 265 | Blue | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 265 | Blue | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 265 | Blue | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 265 | Blue | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 265 | Blue | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 695 | Green | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 695 | Green | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 695 | Green | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 695 | Green | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 695 | Green | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 695 | Green | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 460 | Green | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 460 | Green | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 460 | Green | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 460 | Green | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 460 | Green | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 460 | Green | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 460 | Red | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 460 | Red | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 460 | Red | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 460 | Red | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 460 | Red | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 460 | Red | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 305 | Red | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 305 | Red | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 305 | Red | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 305 | Red | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 305 | Red | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 305 | Red | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 805 | 3000 | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 805 | 3000 | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 805 | 3000 | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 805 | 3000 | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 805 | 3000 | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 805 | 3000 | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 540 | 3000 | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 540 | 3000 | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 540 | 3000 | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 540 | 3000 | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 540 | 3000 | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 540 | 3000 | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 395 | Blue | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 395 | Blue | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 395 | Blue | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 395 | Blue | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 395 | Blue | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 395 | Blue | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 265 | Blue | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 265 | Blue | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 265 | Blue | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 265 | Blue | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 265 | Blue | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 265 | Blue | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 695 | Green | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 695 | Green | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 695 | Green | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 695 | Green | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 695 | Green | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 695 | Green | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 460 | Green | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 460 | Green | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 460 | Green | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 460 | Green | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 460 | Green | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 460 | Green | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 460 | Red | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 460 | Red | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 460 | Red | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 460 | Red | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 460 | Red | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 460 | Red | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 305 | Red | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 305 | Red | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 305 | Red | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 305 | Red | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 305 | Red | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 305 | Red | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 805 | 3000 | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 805 | 3000 | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 805 | 3000 | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 805 | 3000 | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 805 | 3000 | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 9 | 805 | 3000 | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 540 | 3000 | 92 | Asymmetric | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 540 | 3000 | 92 | 60 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 540 | 3000 | 92 | 45 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 540 | 3000 | 92 | 30 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 540 | 3000 | 92 | 15 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
|
|
Shuays R3 | 3052 | Dia 115 x H 125mm | 6 | 540 | 3000 | 92 | 8 | IP68 | NA | Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX | Download | Download | Download | Download |
