Integrated Design
Mounts directly onto the surface for a seamless, architectural look with a slim profile.

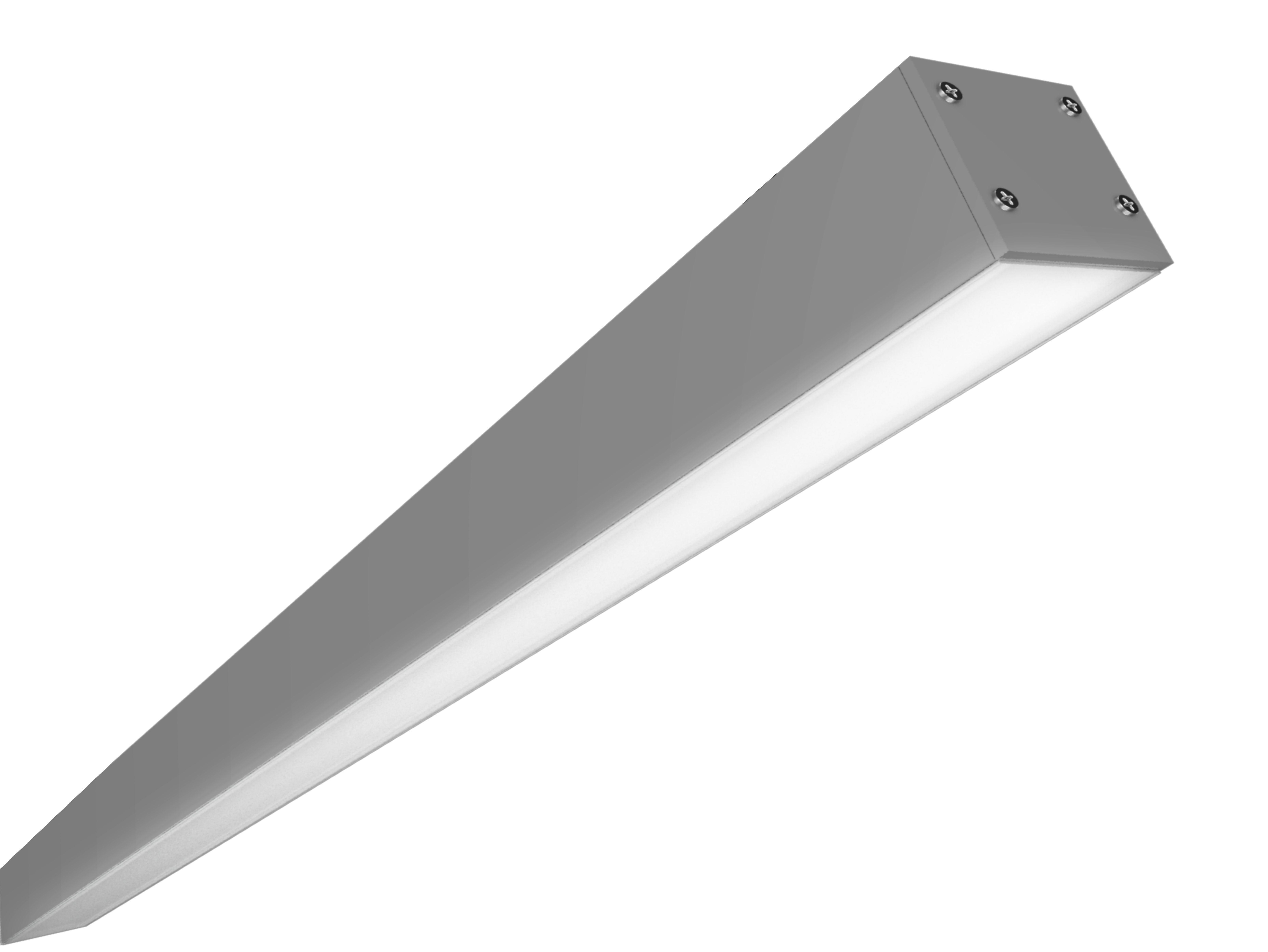

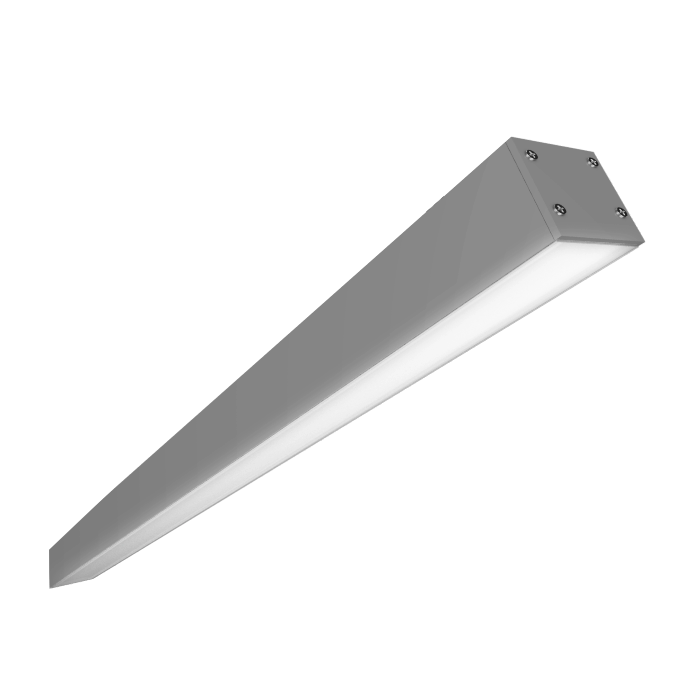

The Acumis Surface fixture provides exceptionally uniform, high-quality illumination that mounts directly to the ceiling, offering a clean and modern aesthetic. Engineered with Mid Power LEDs, it ensures vibrant color accuracy while delivering significant lumen output across four color temperatures. This diffused linear fixture is designed for general lighting applications, providing a wide beam of comfortable light, making it perfect for office spaces, retail environments, and modern residential areas.
| Model | Model Name | Model No | Size | Wattage | Lumens | CCT | CRI | Beam Angle | IP Rating | Accessories | Dimming Option | Specssheet | 2D | 3D | Installation Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Acumis Surface | 2112 | 50mm | 36 | 3460 | 6500 | 95 | Diffused | IP20 | N/A | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Acumis Surface | 2112 | 50mm | 36 | 3380 | 4000 | 95 | Diffused | IP20 | N/A | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Acumis Surface | 2112 | 50mm | 36 | 3285 | 3000 | 95 | Diffused | IP20 | N/A | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Acumis Surface | 2112 | 50mm | 36 | 3250 | 2700 | 95 | Diffused | IP20 | N/A | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Acumis Surface | 2112 | 50mm | 18 | 1730 | 6500 | 95 | Diffused | IP20 | N/A | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Acumis Surface | 2112 | 50mm | 18 | 1695 | 4000 | 95 | Diffused | IP20 | N/A | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Acumis Surface | 2112 | 50mm | 18 | 1645 | 3000 | 95 | Diffused | IP20 | N/A | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Acumis Surface | 2112 | 50mm | 18 | 1605 | 2700 | 95 | Diffused | IP20 | N/A | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Acumis Surface | 2111 | 35mm | 24 | 2305 | 6500 | 95 | Diffused | IP20 | N/A | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Acumis Surface | 2111 | 35mm | 24 | 2255 | 4000 | 95 | Diffused | IP20 | N/A | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Acumis Surface | 2111 | 35mm | 24 | 2185 | 3000 | 95 | Diffused | IP20 | N/A | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Acumis Surface | 2111 | 35mm | 24 | 2135 | 2700 | 95 | Diffused | IP20 | N/A | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Acumis Surface | 2111 | 35mm | 12 | 1150 | 6500 | 95 | Diffused | IP20 | N/A | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Acumis Surface | 2111 | 35mm | 12 | 1125 | 4000 | 95 | Diffused | IP20 | N/A | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Acumis Surface | 2111 | 35mm | 12 | 1095 | 3000 | 95 | Diffused | IP20 | N/A | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
|
|
Acumis Surface | 2111 | 35mm | 12 | 1065 | 2700 | 95 | Diffused | IP20 | N/A | Non Dim/Triac Dim/Analog Dim/DALI Dim | Download | Download | Download | Download |
